Tractor · 2003Unverified

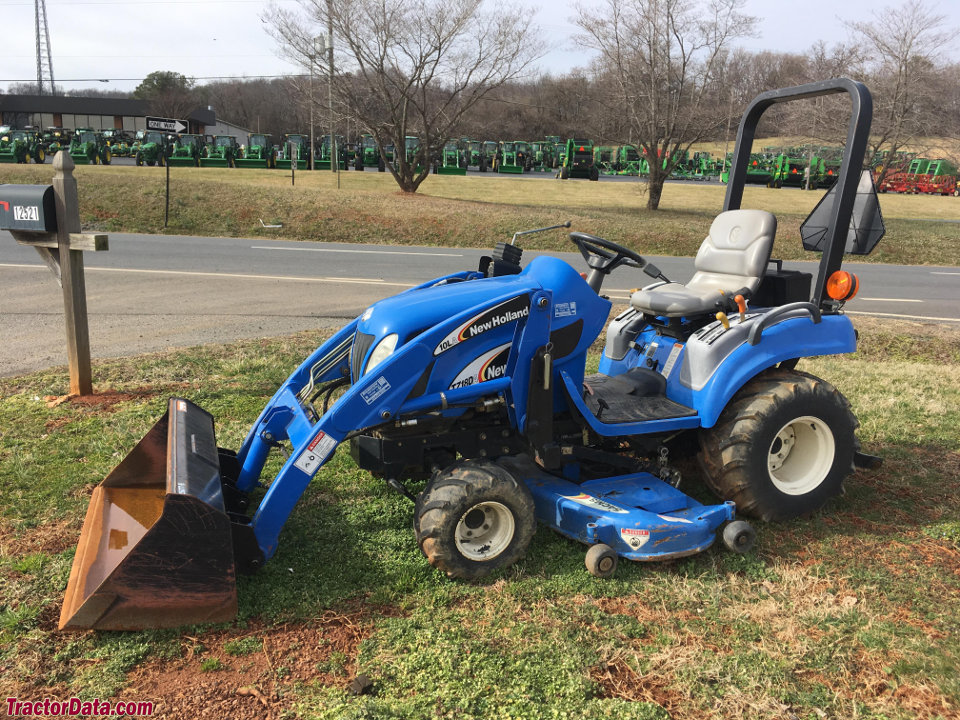

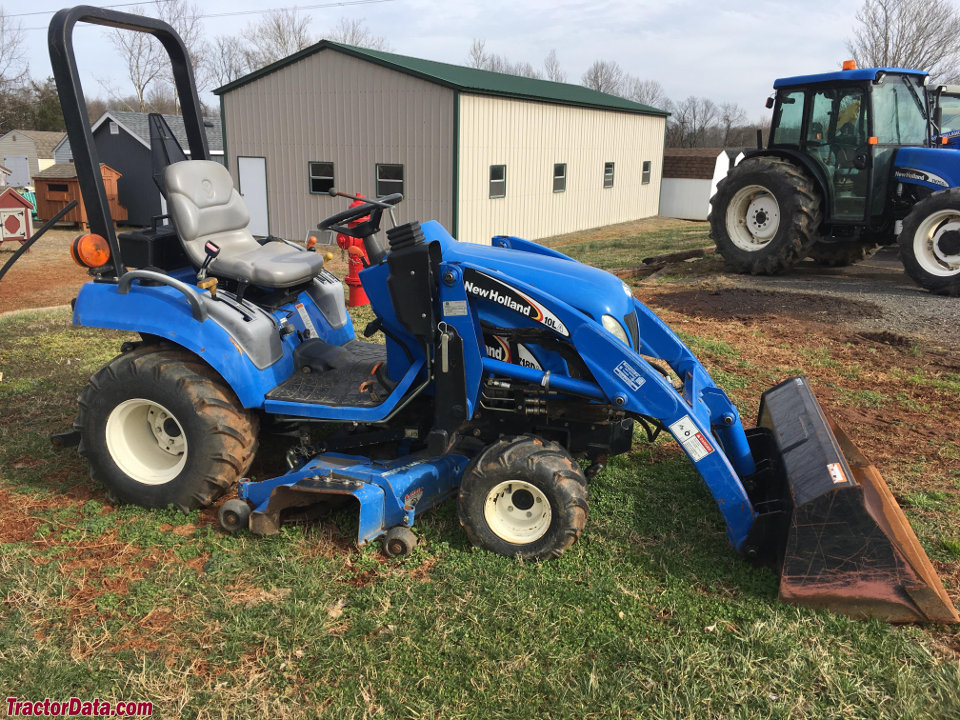

New Holland Boomer TZ18DA

Name: New Holland Boomer TZ18DA
Brand: New Holland

New Holland Boomer TZ18DA — Boomer TZ Series · 18 hp. Reference specifications; pending source verification.

The New Holland Boomer TZ18DA is a compact tractor with a rated output of 18 hp, making it suitable for smaller-scale tasks. Produced from 2003 to 2008, the Boomer TZ18DA features a 3-cylinder diesel liquid-cooled engine and four-wheel drive with a hydrostatic transmission, with a listed weight of 594 kg. It is designed for use on plots of around up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

18 hp

Weight

594 kg

Catalogue coverage

Variants represented

Richest spec table

51 rows

Recorded power

18 hp

Recorded weight

594 kg

Transmissions

hydrostatic

Production years

2003-2008

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew Holland (a part of CNH)Reference

Sub-Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post fixed ROPS.Reference

Variants

Farmall DX18Esimilar CaseIH modelReference

Engine

Shibaura 1.0L 3-cyl dieselReference

Fuel tank29.9 LReference

Engine (gross)13.4 kWReference

Shibaura S753Reference

dieselReference

3-cylinderReference

liquid-cooled inlineReference

Displacement1.0 LReference

Bore/Stroke75 x 72 mmReference

Power (gross)13.4 kWReference

Pre-heatingglow plugsReference

Rated RPM3000Reference

StarterelectricReference

Starter volts12Reference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

PTO & Hydraulics

PTO (claimed)10.2 kWReference

Typeopen centerReference

Pump flow14.2 lpmReference

Total flow21.2 lpmReference

Steering flow7.0 lpmReference

Rear TypeIReference

Rear lift (at 24"/610mm)317 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Mid PTOindependentReference

Mid PTO Type2200Reference

Dimensions

Weight594 kgReference

New Holland TZ18DA attachments

54" mid-mount mower deckReference

60" mid-mount mower deckReference

snowblowerReference

bladeReference

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps36Reference

Battery CCA325Reference

Battery volts12Reference

Attachment overview

54" mid-mount mower deckReference

60" mid-mount mower deckReference

SnowblowerReference

BladeReference

Front-end loaderReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
