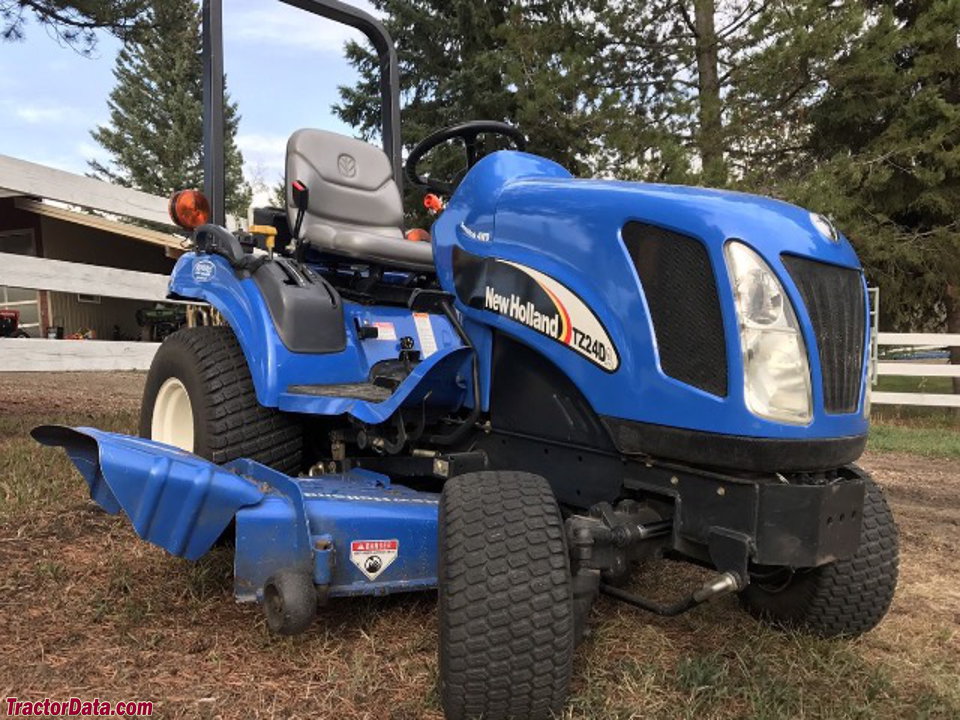

New Holland Boomer TZ24DA

Name: New Holland Boomer TZ24DA
Brand: New Holland

New Holland Boomer TZ24DA — Boomer TZ Series · 24 hp. Reference specifications; pending source verification.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

24 hp

Weight

660 kg

Hover a source tag to verify

Overview

ManufacturerNew Holland (a part of CNH)Reference

Sub-Compact Utility tractorReference

The New Holland TZ24DA is similar to the Shibaura SX24.Reference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post fixed ROPS.Reference

Variants

Farmall DX24Esimilar CaseIH modelReference

Engine

Shibaura 1.0L 3-cyl dieselReference

Fuel tank29.9 LReference

Engine (gross)17.9 kWReference

Shibaura S773Reference

dieselReference

3-cylinderReference

liquid-cooled inlineReference

Displacement1.0 LReference

Bore/Stroke77 x 72 mmReference

Power (gross)17.9 kWReference

Pre-heatingglow plugsReference

Rated RPM3000Reference

StarterelectricReference

Starter volts12Reference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

PTO & Hydraulics

PTO (claimed)13.4 kWReference

Typeopen centerReference

Pump flow14.2 lpmReference

Total flow21.2 lpmReference

Steering flow7.0 lpmReference

Rear TypeIReference

Rear lift (at 24"/610mm)317 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Mid PTOindependentReference

Mid PTO Type2200Reference

Dimensions

Weight660 kgReference

New Holland TZ24DA attachments

54" mid-mount mower deckReference

60" mid-mount mower deckReference

snowblowerReference

bladeReference

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps36Reference

Battery CCA325Reference

Battery volts12Reference
