Tractor · 2005Unverified

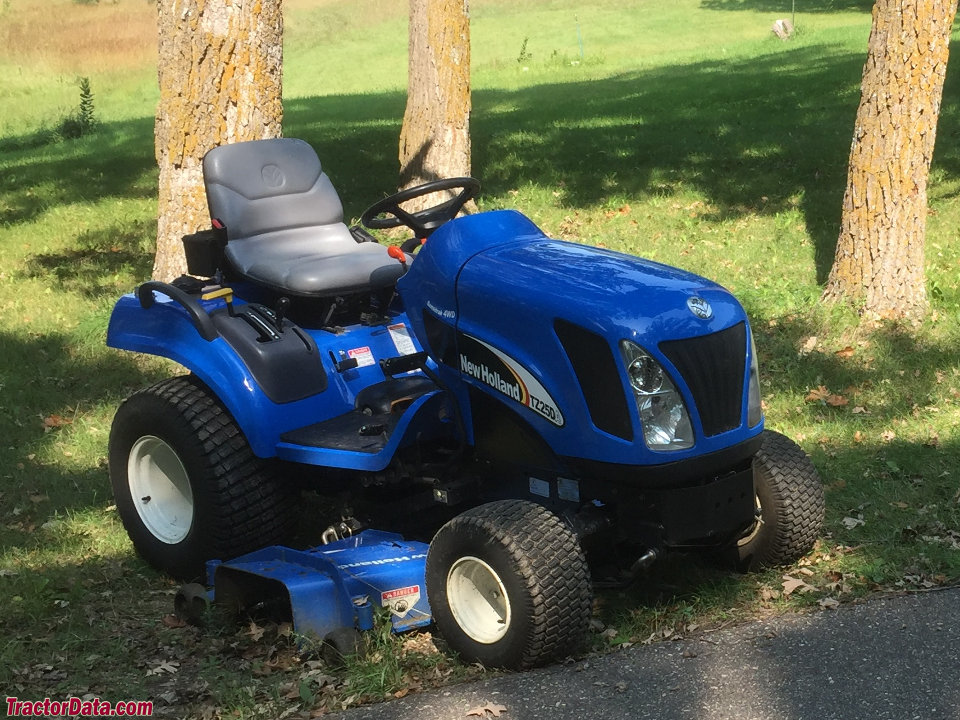

New Holland Boomer TZ25DA
New Holland Boomer TZ25DA — Boomer TZ Series · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
598 kg
Hover a source tag to verify
Overview
ManufacturerNew Holland (a part of CNH)Reference
Sub-Compact Utility tractorReference
The New Holland TZ25DA is similar to the Shibaura SX24 and the Case IH DX25E.Reference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS.Reference
Variants
Farmall DX25Esimilar CaseIH modelReference
Engine
Shibaura 1.0L 3-cyl dieselReference
Fuel tank29.9 LReference
Engine (gross)18.6 kWReference
Shibaura S773Reference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.0 LReference
Bore/Stroke77 x 72 mmReference
Power (gross)18.6 kWReference
Pre-heatingglow plugsReference
Rated RPM3000Reference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
PTO (claimed)14.2 kWReference
Typeopen centerReference
Pump flow14.8 lpmReference
Steering flow7.2 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)317 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Mid PTOindependentReference
Mid PTO Type2200Reference
Dimensions
Wheelbase139 cmReference
Weight598 kgReference
Industrial front18x8.50-8Reference
Industrial rear26x12.00-12Reference
Length244 cmReference
Width116 cmReference
Height (ROPS)228 cmReference
Front tread92 cmReference
Rear tread86 cmReference
New Holland TZ25DA attachments
54" mid-mount mower deckReference
60" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps36Reference
Battery CCA325Reference
Battery volts12Reference
Attachment overview
54" mid-mount mower deckReference
60" mid-mount mower deckReference
SnowblowerReference
BladeReference
Front-end loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
