Tractor · 1996Unverified

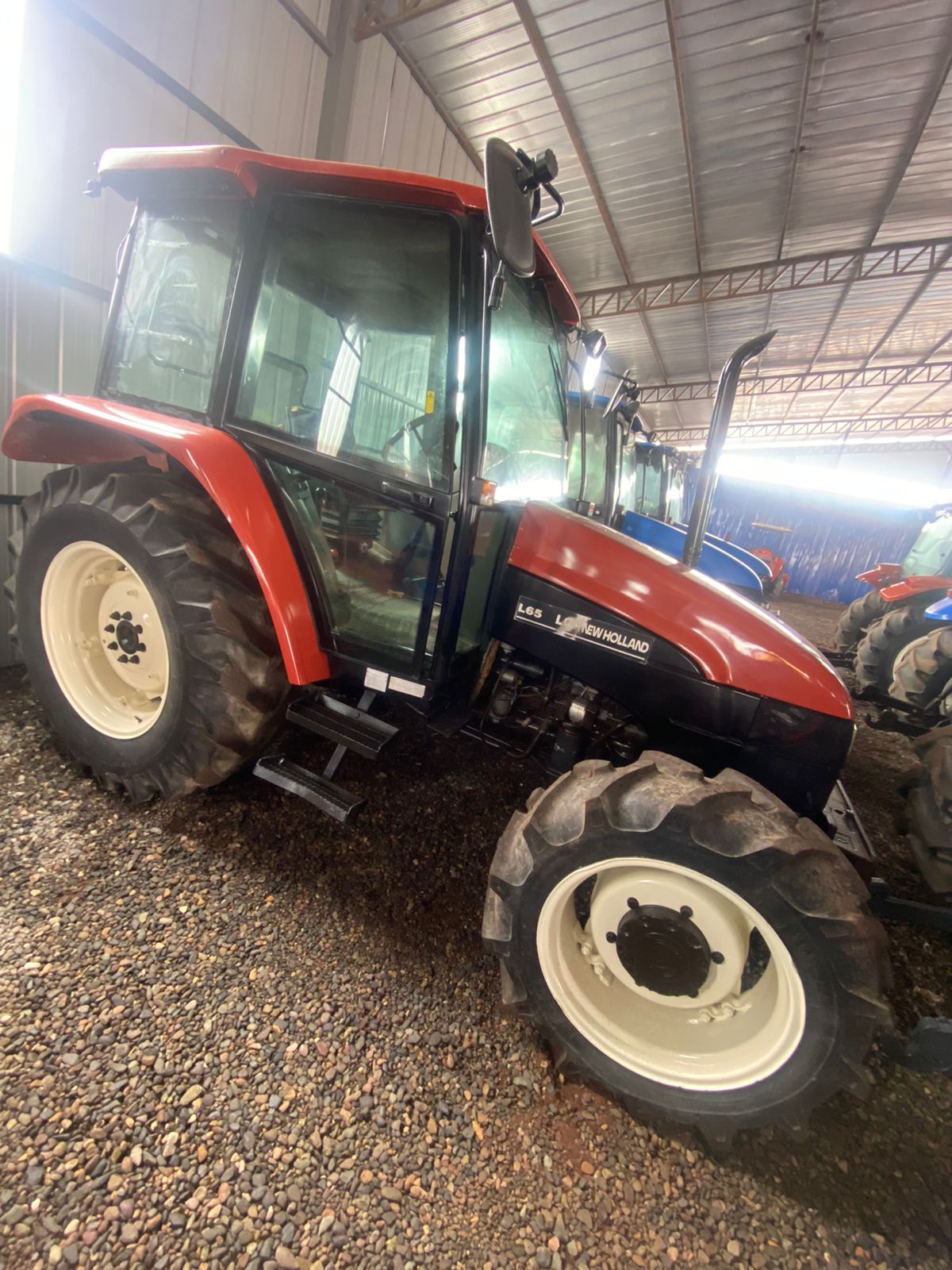

New Holland L65
New Holland L65 — Utility tractor · 56 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
56 hp
Weight
5954 to 7056 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Utility tractorReference
Built in ItalyReference
Original price was $26,750 in 1999Reference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post foldable ROPS. Cab optional with air-conditioning.Reference
Engine
Iveco 3.6L 4-cyl dieselReference
Fuel tank109.8 LReference
Engine48.5 kWReference
Iveco 8045.06Reference
dieselReference
4-cylinder 8-valveReference
liquid-cooledReference
Displacement3.6 LReference
Bore/Stroke100 x 115 mmReference
Power48.5 kWReference
Pre-heatingThermostartReference
Rated RPM2500Reference
Torque65.9 NmReference
Torque RPM1500Reference
Starter volts12Reference
Oil capacity11.7 LReference
Coolant capacity14.0 LReference
Coolant capacity16.0 LReference
Transmission
12-speed partially synchronizedReference
12-speed partiallly synchronized with sync shuttleReference
24-speed partial power shiftReference
TransmissionSynchroReference
Typepartially synchronizedReference
Gears12 forward and 4 reverseReference
Four gears in three ranges, plus reverse. Gear shifts are synchronized.Reference
TransmissionSynchro CommandReference
Typepartiallly synchronized with sync shuttleReference
Gears12 forward and reverseReference
Four gears in three ranges with left-hand reverser. Gear and shuttle shifts are synchronized.Reference
TransmissionDual CommandReference
Typepartial power shiftReference
Gears24 forward and 12 reverseReference
Four gears in three ranges with two-speed power shift and left-hand reverser. The Dual Command provides push-button shifting to lower gear at each speed.Reference
PTO & Hydraulics
PTO (claimed)41.8 kWReference
Typeopen centerReference
Valves2 to 3Reference
Pump flow54.9 lpmReference
Rear TypeIIReference
Controlmechanical lower-link draft sensingReference
Rear lift (at 24"/610mm)2595 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540Reference
Dimensions
2WD Wheelbase234 cmReference
4WD Wheelbase231 cmReference
Weight5954 to 7056 poundsReference
Front tire7.50-16.6Reference
Rear tire16.9-30Reference
Ag front7.50-16.6Reference
Ag rear16.9-30Reference
Width184 cmReference
2WD ROPS Shipping weight2700 kgReference
4WD Cab Shipping weight3200 kgReference
Front tread142 to 213 cmReference
Rear tread152 to 213 cmReference
L65 Serial Numbers
19961078283Reference
19971104301Reference
19981129213Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps45Reference
Cab Charging amps65Reference
Battery volts12Reference
New Holland L65 Height
ROPS267 cmReference
ROPS213 cmReference
Cab247 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
