Tractor · 1996Unverified

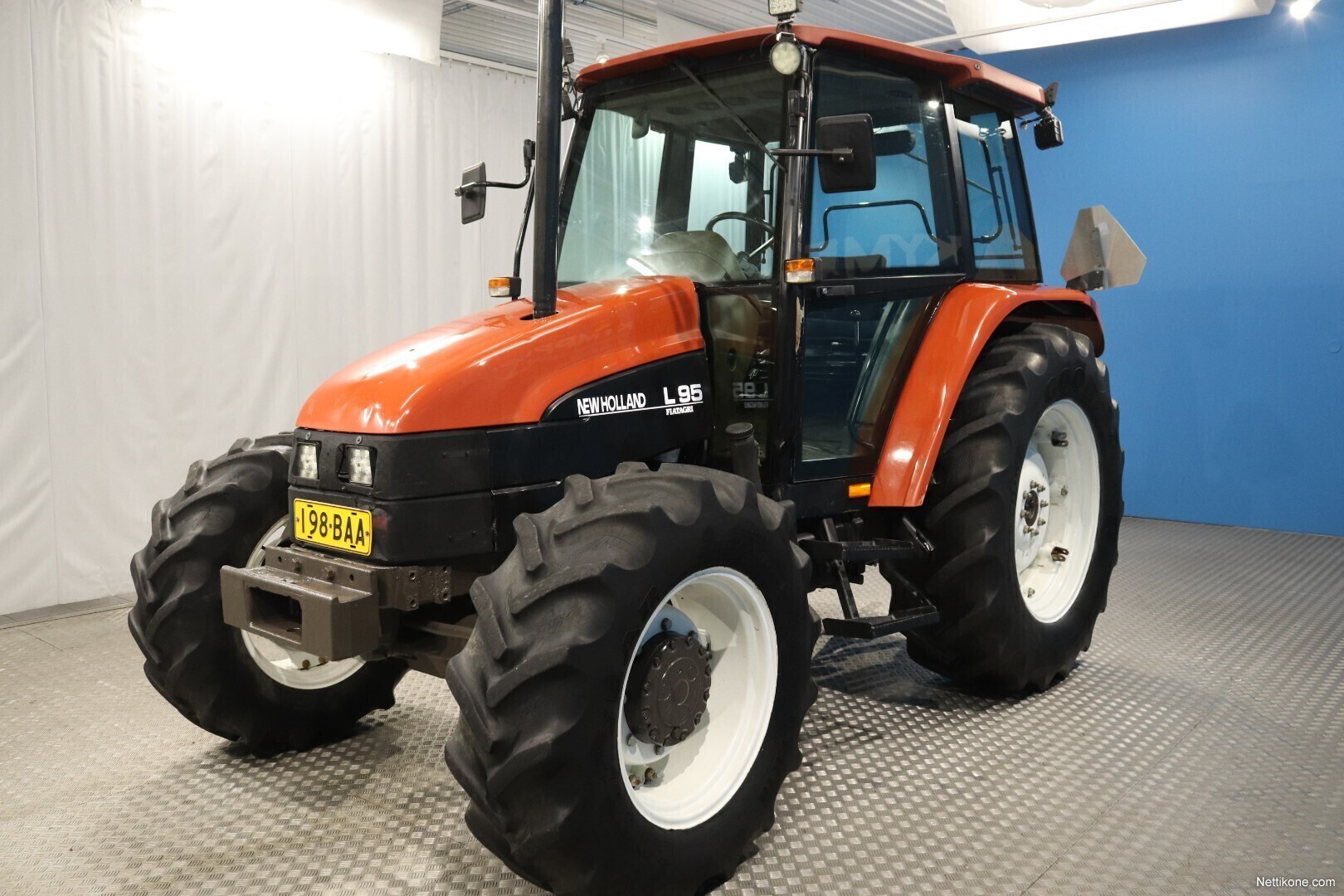

New Holland L95

Name: New Holland L95
Brand: New Holland

New Holland L95 — Utility tractor · 86 hp. Reference specifications; pending source verification.

The New Holland L95 is a tractor model with a rated output of 86 hp, positioning it within its class for power. It was manufactured from 1996 to 1999. The tractor features a 4-cylinder turbocharged diesel liquid-cooled engine, which powers a four-wheel drive system with a powershift transmission. Its listed weight is 6834 to 7936 pounds, with an operating capacity of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

86 hp

Weight

6834 to 7936 pounds

Catalogue coverage

Variants represented

Richest spec table

65 rows

Recorded power

86 hp

Transmissions

24-speed partial power shift

Production years

1996-1999

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Utility tractorReference

Built in ItalyReference

Original price was $36,400 in 1999Reference

Two- or four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Two-post foldable ROPS. Cab optional with air-conditioning.Reference

Engine

Iveco 3.9L 4-cyl dieselReference

Fuel tank109.8 LReference

Engine70.8 kWReference

Iveco 8045.25Reference

turbocharged dieselReference

4-cylinder 8-valveReference

liquid-cooledReference

Displacement3.9 LReference

Bore/Stroke104 x 115 mmReference

Power70.8 kWReference

Pre-heatingThermostartReference

Rated RPM2500Reference

Starter volts12Reference

Oil capacity11.7 LReference

ROPS Coolant capacity14.0 LReference

Cab Coolant capacity16.0 LReference

Transmission

24-speed partial power shiftReference

TransmissionDual CommandReference

Typepartial power shiftReference

Gears24 forward and 12 reverseReference

Four gears in three ranges with two-speed power shift and left-hand reverser. The Dual Command provides push-button shifting to lower gear at each speed.Reference

PTO & Hydraulics

PTO (claimed)64.1 kWReference

Typeopen centerReference

Valves2 to 3Reference

Pump flow54.9 lpmReference

Rear TypeIIReference

Controlmechanical lower link draft sensingReference

Rear lift (at 24"/610mm)2916 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540/1000Reference

Dimensions

2WD Wheelbase234 cmReference

4WD Wheelbase231 cmReference

Weight6834 to 7936 poundsReference

Front tire7.50-16Reference

Rear tire13.6-38Reference

Ag front7.50-16Reference

Ag rear13.6-38Reference

Width184 cmReference

Front tread142 to 213 cmReference

Rear tread152 to 213 cmReference

2WD ROPS Shipping3099 kgReference

2WD cab Shipping3392 kgReference

4WD ROPS Shipping3400 kgReference

4WD Cab Shipping3599 kgReference

L95 Serial Numbers

19961087929Reference

19971104920Reference

19981129213Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

ROPS Charging amps45Reference

Cab Charging amps65Reference

Battery volts12Reference

New Holland L95 Height

ROPS267 cmReference

ROPS213 cmReference

Cab247 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
