Backhoe Loader · 2001Unverified

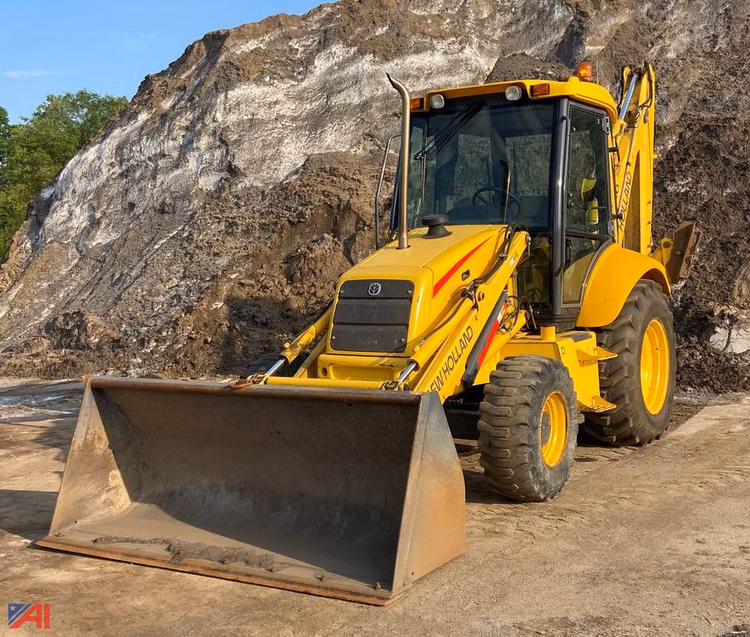

New Holland LB110

Name: New Holland LB110
Brand: New Holland

New Holland LB110 — LB Series · 108 hp. Reference specifications; pending source verification.

The New Holland LB110 is a backhoe loader model featuring a rated output of 108 hp, categorising it among the higher-powered machines in its class. It was manufactured from 2001 to 2003. The LB110 is equipped with a 4-cylinder turbocharged diesel liquid-cooled engine, which drives through four-wheel drive via a powershift transmission. The machine's listed weight ranges from 14814 to 15597 pounds, and it is suited to tasks involving around 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

108 hp

Weight

14814 to 15597 pounds

Catalogue coverage

Variants represented

Richest spec table

101 rows

Recorded power

108 hp

Recorded weight

6719 kg

Transmissions

4-speed power shuttle

Production years

2001-2003

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Backhoe loader tractorReference

Two- or four-wheel driveReference

Final drivesplanetaryReference

Differential lockmechanicalReference

Differential lockelectricReference

Power steeringReference

Hydraulic wet disc brakesReference

Four-post ROPS/FOPS. Cab optional with air-conditioning.Reference

Engine

New Holland 5.0L 4-cyl dieselReference

Engine (gross)80.5 kWReference

Engine (net)76.8 kWReference

New Holland BSD 450TReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement5.0 LReference

Bore/Stroke112 x 127 mmReference

Power (net)76.8 kWReference

Power (gross)80.5 kWReference

Air cleanerdual dry elementReference

Pre-heatingetherReference

Pre-heatingblock heaterReference

Rated RPM2200Reference

Torque442.1 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Oil capacity17.0 LReference

Coolant capacity24.6 LReference

Transmission

4-speed power shuttleReference

4-speed power shiftReference

Typepower shuttleReference

Gears4 forward and reverseReference

Oil capacity18.0 LReference

Fully-synchronized transmission with torque converter and power shuttle.Reference

Typepower shiftReference

Gears4 forward and 2 reverseReference

Capacities

Fuel124.9 LReference

PTO & Hydraulics

Hydraulic system106.0 LReference

Hydraulic system143.8 LReference

Typeopen centerReference

Capacity106.0 LReference

Capacity143.8 LReference

Pressure210.0 barReference

Pump flow159.0 lpmReference

Dimensions

Wheelbase217 cmReference

Weight14814 to 15597 poundsReference

Front tire12.5/80-18Reference

Rear tire18.4-26Reference

Industrial front12.5/80-18Reference

Industrial rear18.4-26Reference

Length568 cmReference

Width226 cmReference

Height (cab)288 cmReference

Height (backhoe)388 cmReference

2WD ROPS Weight6719 kgReference

4WD Cab Weight7074 kgReference

Ground clearance39 cmReference

Front tread185 cmReference

Backhoe & Loader

Dig depth459 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps70Reference

Batteries2Reference

Batteries1Reference

Battery CCA900Reference

Battery volts12Reference

Attachment overview

Front-end loaderReference

BackhoeReference

New Holland Backhoe

Backhoe typeNew Holland BackhoeReference

Transport height388 cmReference

Bucket width60 cmReference

Digging depth459 cmReference

2-Foot flat digging depth457 cmReference

8-Foot flat digging depth424 cmReference

Reach from pivot584 cmReference

Loading height391 cmReference

Bucket Rotation204°Reference

Swing Arc180°Reference

Bucket force5809 kgReference

Dipperstick force3668 kgReference

New Holland HED Backhoe

Backhoe typeNew Holland HED BackhoeReference

Transport height388 cmReference

Bucket width60 cmReference

Digging depth (retracted stick)459 cmReference

Digging depth (extended stick)576 cmReference

2-Foot flat digging depth (retracted stick)457 cmReference

2-Foot flat digging depth (extended stick)574 cmReference

8-Foot flat digging depth (retracted stick)424 cmReference

8-Foot flat digging depth (extended stick)548 cmReference

Reach from pivot (retracted stick)584 cmReference

Reach from pivot (extended stick)693 cmReference

Loading height (retracted stick)391 cmReference

Loading height (extended stick)462 cmReference

Bucket Rotation204°Reference

Swing Arc180°Reference

Bucket force (retracted stick)5809 kgReference

Bucket force (extended stick)5809 kgReference

Dipperstick force (retracted stick)3683 kgReference

Dipperstick force (extended stick)2617 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
