Backhoe Loader · 2001Unverified

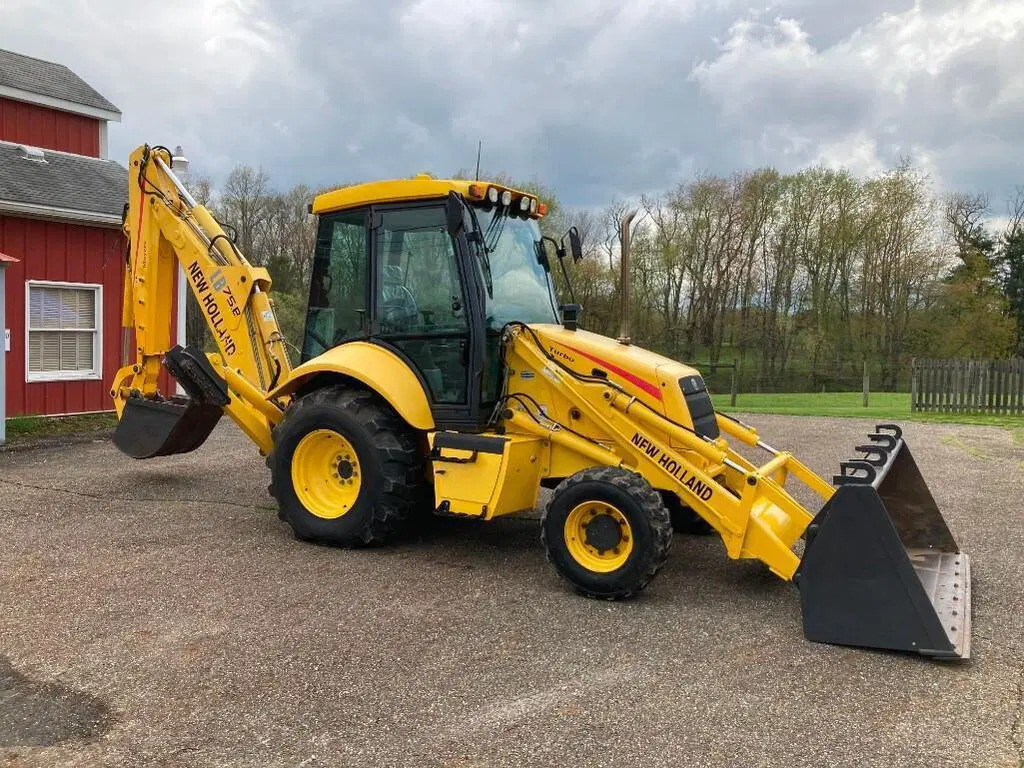

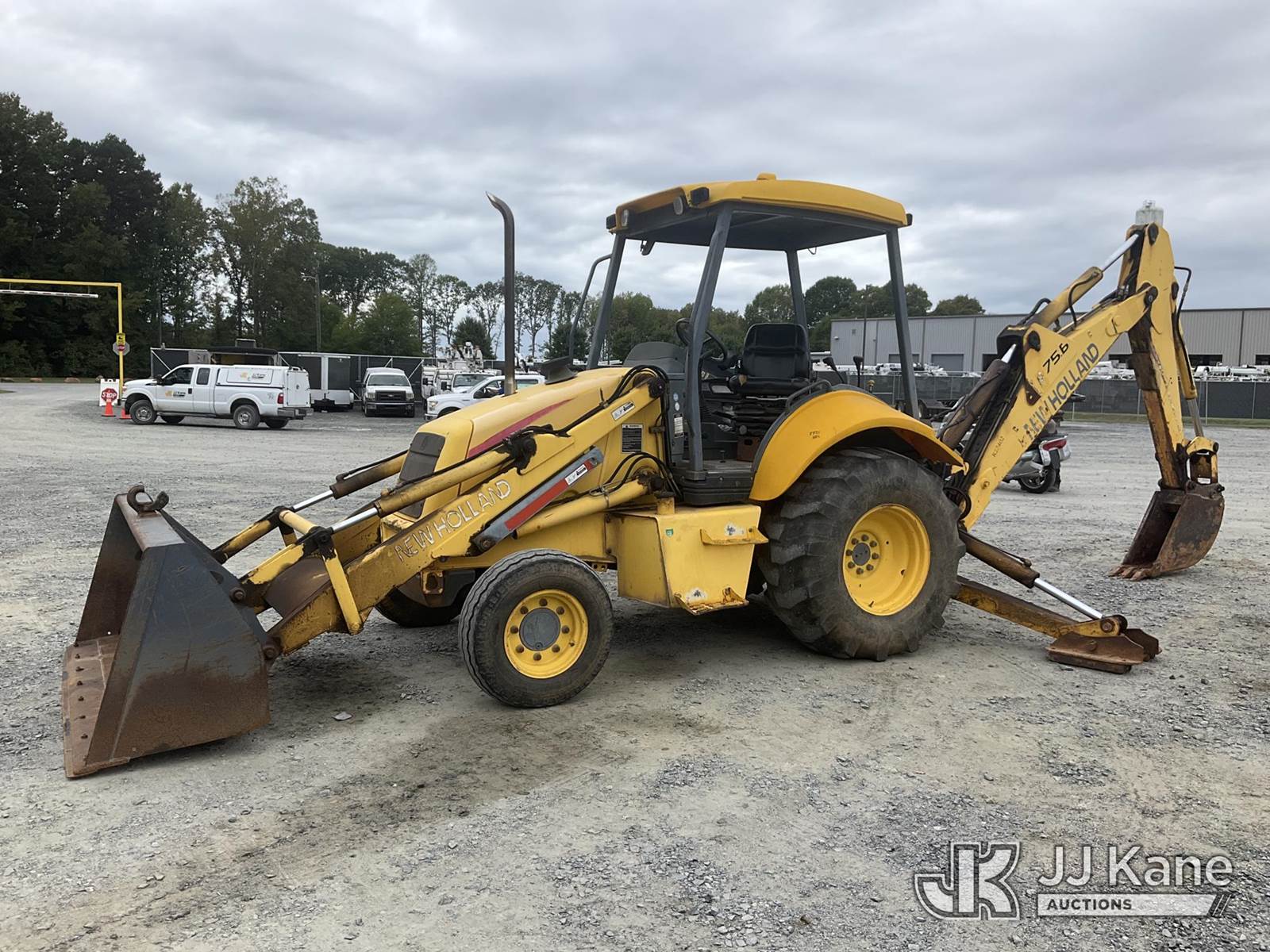

New Holland LB75B

New Holland LB75B — LB B Series · 90 hp. Reference specifications; pending source verification.

The New Holland LB75B is a backhoe loader with an approximate engine rating of 90 hp, situated within the mid-range of its class. Manufactured from 2001 to 2006, this model features a 4-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a 4-speed gearbox. The operating weight of the New Holland LB75B is listed as 14440 to 15223 pounds, and it is suited to operations covering 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
90 hp
Weight
14440 to 15223 pounds

Catalogue coverage

Variants represented
2
Richest spec table
95 rows
Recorded power
90 hp
Recorded weight
6549 kg
Transmissions
4-speed power shuttle
Production years
2001-2006
Verified variants
0

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference
Backhoe loader tractorReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanicalReference
Power steeringReference
Hydraulic wet disc brakesReference
Four-post ROPS/FOPS. Cab optional with optional air-conditioning.Reference

Engine

New Holland 5.0L 4-cyl dieselReference
Engine (gross)67.1 kWReference
Engine (net)63.4 kWReference
New Holland BSD 450Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement5.0 LReference
Bore/Stroke112 x 127 mmReference
Power (net)63.4 kWReference
Power (gross)67.1 kWReference
Air cleanerdual dry elementReference
Pre-heatingthermostartReference
Pre-heatingetherReference
Pre-heatingblock heaterReference
Rated RPM2200Reference
Torque355.3 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Oil capacity17.0 LReference
Coolant capacity24.6 LReference

Transmission

4-speed power shuttleReference
TransmissionDana-SpicerReference
Typepower shuttleReference
Gears4 forward and reverseReference
Fully-synchronized transmission with torque converter and power shuttle.Reference

Capacities

Fuel124.9 LReference

PTO & Hydraulics

Hydraulic system106.0 LReference
Hydraulic system143.8 LReference
Typeopen centerReference
Capacity106.0 LReference
Capacity143.8 LReference
Pressure210.0 barReference
Pump flow151.4 lpmReference

Dimensions

Wheelbase217 cmReference
Weight14440 to 15223 poundsReference
Length708 cmReference
Width226 cmReference
Height (cab)289 cmReference
Height (backhoe)398 cmReference
2WD ROPS Weight6549 kgReference
4WD Cab Weight6905 kgReference
Ground clearance39 cmReference
Front tread185 cmReference

Backhoe & Loader

Dig depth429 cmReference
Dump angle114 cmReference

Electrical

GroundnegativeReference
Charging systemalternatorReference
Charging amps70Reference
Batteries2Reference
Batteries1Reference
Battery CCA900Reference
Battery volts12Reference

Attachment overview

Front-end loaderReference
BackhoeReference

New Holland Backhoe

Backhoe typeNew Holland BackhoeReference
Transport height398 cmReference
Bucket width60 cmReference
Digging depth429 cmReference
2-Foot flat digging depth426 cmReference
8-Foot flat digging depth388 cmReference
Reach from pivot553 cmReference
Loading height370 cmReference
Bucket Rotation204°Reference
Swing Arc180°Reference
Bucket force5809 kgReference
Dipperstick force4180 kgReference

New Holland HED Backhoe

Backhoe typeNew Holland HED BackhoeReference
Transport height398 cmReference
Bucket width60 cmReference
Digging depth (retracted stick)444 cmReference
Digging depth (extended stick)548 cmReference
2-Foot flat digging depth (retracted stick)441 cmReference
2-Foot flat digging depth (extended stick)546 cmReference
8-Foot flat digging depth (retracted stick)406 cmReference
8-Foot flat digging depth (extended stick)518 cmReference
Reach from pivot (retracted stick)571 cmReference
Reach from pivot (extended stick)665 cmReference
Loading height (retracted stick)370 cmReference
Loading height (extended stick)436 cmReference
Bucket Rotation204°Reference
Swing Arc180°Reference
Bucket force (retracted stick)5809 kgReference
Bucket force (extended stick)5809 kgReference
Dipperstick force (retracted stick)3881 kgReference
Dipperstick force (extended stick)2821 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
