Search/Tractor/New Holland/PowerStar 100

Embed

Paste on your site — shows live UK/US specs and links back here. Free to use.

<iframe src="https://farmfleetspecs.com/embed/new-holland-powerstar-100" width="100%" height="430" loading="lazy" style="border:1px solid #e6e8e4;border-radius:14px;max-width:560px" title="New Holland PowerStar 100 specs — FarmFleetSpecs"></iframe>

Tractor · 2018Unverified

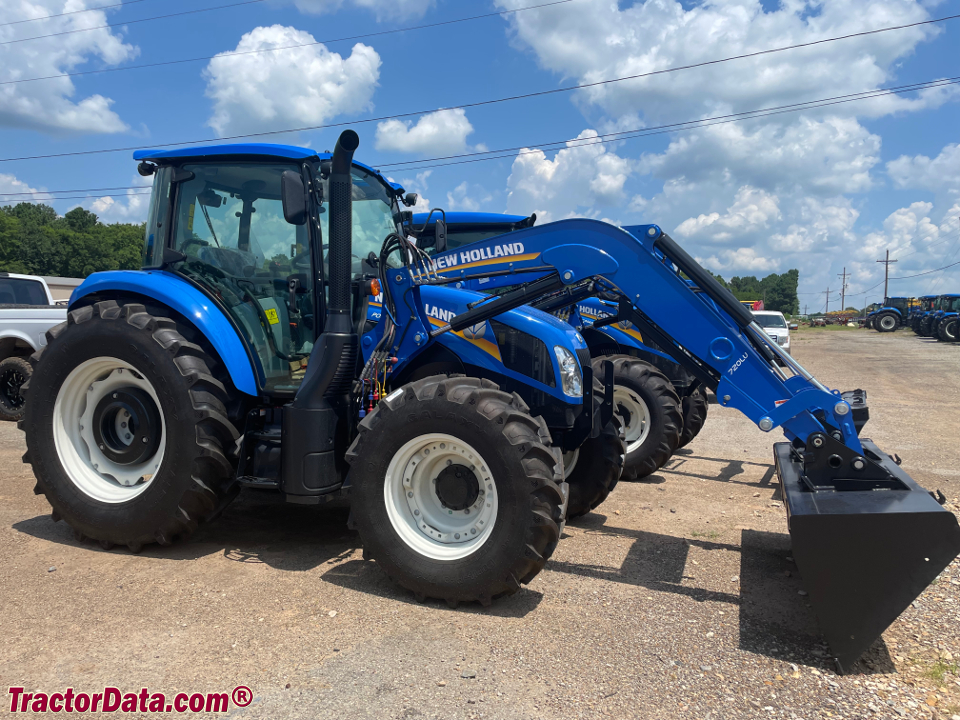

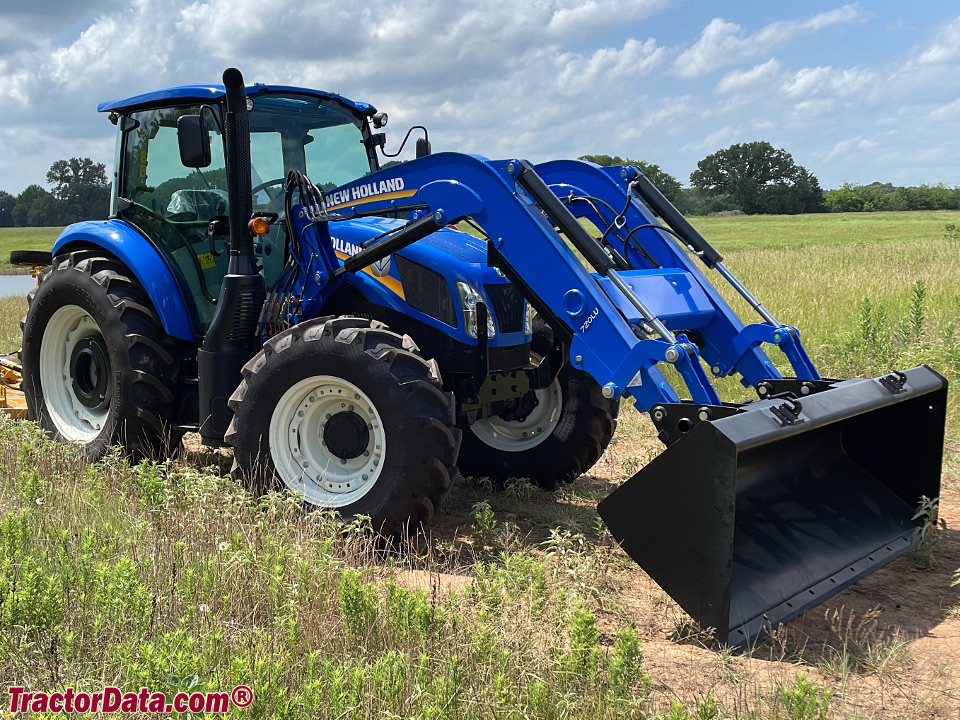

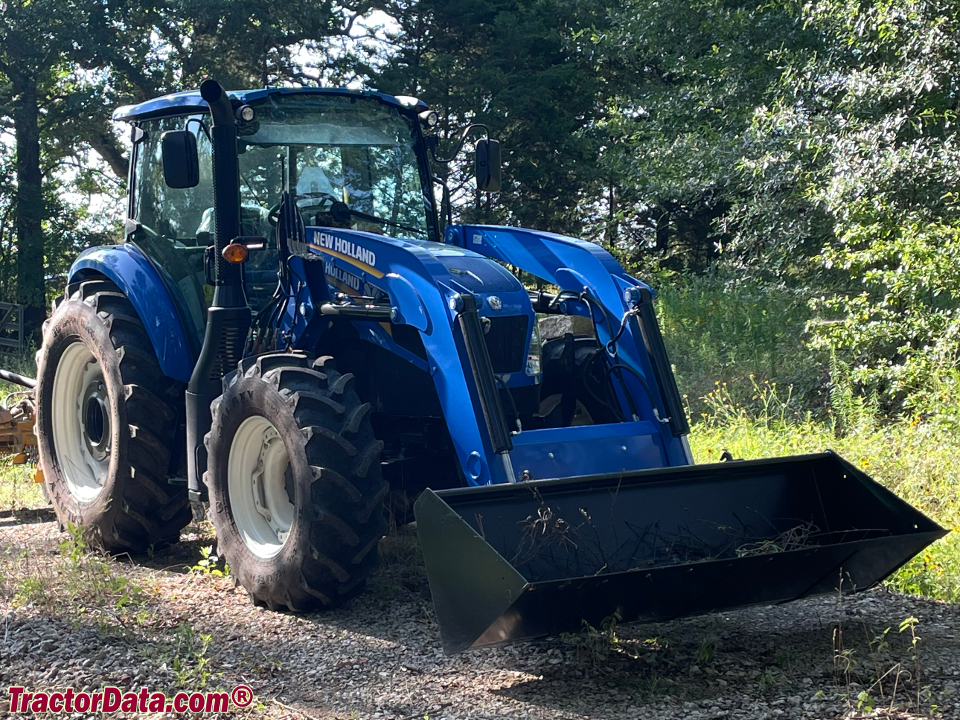

New Holland PowerStar 100

Name: New Holland PowerStar 100
Brand: New Holland

New Holland PowerStar 100 — Model year 2018-20252026-2027 · 99 hp. Reference specifications; pending source verification.

The New Holland PowerStar 100 is a tractor model with a power rating of 99 hp, placing it in the middle of its class. Manufactured from 2018 to 2027, it features a 4-cylinder turbocharged diesel liquid-cooled engine, which drives through a mechanical front-wheel drive system with a 12-speed gearbox. The listed weight of the PowerStar 100 is 6988 to 8157 pounds. It is suitable for applications involving approximately 200-800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

99 hp

Max power

99 hp

Weight

6988 to 8157 pounds

Catalogue coverage

Variants represented

Richest spec table

103 rows

Recorded power

99 hp

Transmissions

12-speed power shuttle

Production years

2018-2027

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew Holland (a part of CNH)Reference

Utility tractorReference

Original price$64,196 (2020 ROPS)Reference

Original price$75,318 ( Cab)Reference

Drive4x2 2WD: 4x4 MFWD 4WDReference

Final drivesinboard planetaryReference

Differential lockmechanical rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Two-post folding ROPS. Cab optional.Reference

Variants

Farmall 100Csimilar CaseIH modelReference

Engine

FPT 3.4L 4-cyl dieselReference

Fuel tank114.7 LReference

Exhaust fluid (DEF)10.6 LReference

Engine (gross)73.8 kWReference

front-end loaderReference

2WD Standard tires (ag)Front: 10.00-16. Rear: 18.4-30Reference

4WD Standard tires (ag)Front: 12.4-24. Rear: 18.4-30Reference

2WD ROPS3169 kgReference

4WD ROPS3480 kgReference

2WD Cab3389 kgReference

4WD Cab3700 kgReference

FPT F5GReference

turbocharged aftercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.4 LReference

Bore/Stroke99 x 110 mmReference

EmissionsTier IVReference

Emission controlDOC and EGRReference

Power (gross)73.8 kWReference

Fuel systemelectronic high-pressure common rail direct injectionReference

StarterelectricReference

Starter volts12Reference

Fuel TypeDieselReference

No of Cylinders4Reference

AspirationTurbocharged / aftercooledReference

Transmission

12-speed power shuttleReference

12-speed mechanical shuttleReference

20-speed creeperReference

Typepower shuttleReference

Gears12 forward and reverseReference

Four synchronized gears in three ranges with power shuttle.Reference

Typemechanical shuttleReference

TypecreeperReference

Gears20 forward and reverseReference

Transmission TypePower ShuttleReference

forward and reverse options20x20Reference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)63.4 kWReference

Typeopen centerReference

Valves2 or 3Reference

Pump flow64.0 lpmReference

Total flow100.7 lpmReference

Steering flow36.7 lpmReference

Rear TypeIIReference

Rear lift (at 24"/610mm)2549 kgReference

Rear lift (at 24"/610mm)4399 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540Reference

Rear PTO Type540/1000Reference

Dimensions

2WD Wheelbase234 cmReference

4WD Wheelbase228 cmReference

Weight6988 to 8157 poundsReference

Front tire10.00-16Reference

2WD Rear tire18.4-30Reference

2WD Length414 cmReference

4WD Length408 cmReference

Width192 cmReference

Height (ROPS)270 cmReference

Height (cab)259 cmReference

Flange rear axleReference

Front tread143 to 194 cmReference

Rear tread140 to 193 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

ROPS Charging amps120Reference

Cab Charging amps150Reference

Battery volts12Reference

Attachment overview

New Holland 655TL NSL loaderReference

New Holland 655TL MSL loaderReference

New Holland 710LU loaderReference

New Holland 715LU loaderReference

Speeds

With 18R34 rear tires.Reference

General

Make & ModelFPT F5CReference

SCV controlJoystick: AvailableReference

Precision AgricultureAvailable (Telematic)Reference

Capacities

Capacity207 cu. in.Reference

Power

Max Power99 hpReference

PTO

PTO Power85 hpReference

Hydraulics

Pump Rated Output (total)100.7 l/minReference

Remote Valves3Reference

Number of rear selective control valves (SCVs)3Reference

Steering & Implements flow9.7 gpm (16.9 gpm)Reference

Rear Hitch category (SAE designation)3-Point Hitch | Category IIReference

Dimensions & weight

Wheelbase228.3 cmReference

Overall Width192.3 cmReference

Turning radius340.4 cmReference

Overall weight3,699.9 kgReference

Operator station

Cab AvailabilitytrueReference

Seat SuspensionAvailableReference

Steering & brakes

Steering typepower steeringReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
