Tractor · 2018Unverified

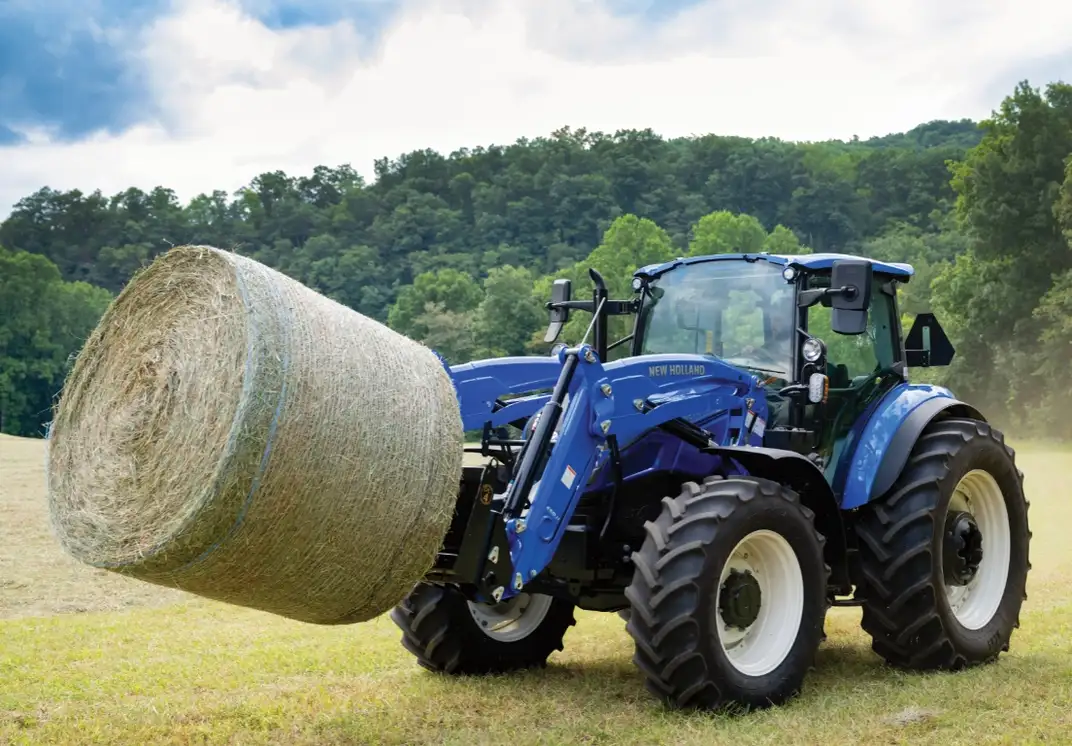

New Holland PowerStar 90
New Holland PowerStar 90 — Model year 2018-20252026-2027 · 86 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
86 hp
Weight
6988 to 8157 pounds
Hover a source tag to verify
Overview
ManufacturerNew Holland (a part of CNH)Reference
Utility tractorReference
Original price$61,687 (2020 ROPS)Reference
Original price$72,809 ( Cab)Reference
Drive4x2 2WD: 4x4 MFWD 4WDReference
Final drivesinboard planetaryReference
Differential lockmechanical rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post folding ROPS. Cab optional.Reference
Variants
Farmall 90Csimilar CaseIH modelReference
Engine
FPT 3.4L 4-cyl dieselReference
Fuel tank114.7 LReference
Exhaust fluid (DEF)10.6 LReference
Engine (gross)64.1 kWReference
front-end loaderReference
2WD Standard tires (ag)Front: 10.00-16. Rear: 18.4-30Reference
4WD Standard tires (ag)Front: 12.4-24. Rear: 18.4-30Reference
2WD ROPS3169 kgReference
4WD ROPS3480 kgReference
2WD Cab3389 kgReference
4WD Cab3700 kgReference
FPT F5GReference
turbocharged aftercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.4 LReference
Bore/Stroke99 x 110 mmReference
EmissionsTier IVReference
Emission controlDOC and EGRReference
Power (gross)64.1 kWReference
Fuel systemelectronic high-pressure common rail direct injectionReference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed power shuttleReference
12-speed mechanical shuttleReference
20-speed creeperReference
Typepower shuttleReference
Gears12 forward and reverseReference
Four synchronized gears in three ranges with power shuttle.Reference
Typemechanical shuttleReference
TypecreeperReference
Gears20 forward and reverseReference
PTO & Hydraulics
PTO (claimed)54.4 kWReference
Typeopen centerReference
Valves2 or 3Reference
Pump flow64.0 lpmReference
Total flow100.7 lpmReference
Steering flow36.7 lpmReference
Rear TypeIIReference
Rear lift (at 24"/610mm)2549 kgReference
Rear lift (at 24"/610mm)4399 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540Reference
Rear PTO Type540/1000Reference
Dimensions
2WD Wheelbase234 cmReference
4WD Wheelbase228 cmReference
Weight6988 to 8157 poundsReference
Front tire10.00-16Reference
2WD Rear tire18.4-30Reference
2WD Length414 cmReference
4WD Length408 cmReference
Width192 cmReference
Height (ROPS)270 cmReference
Height (cab)259 cmReference
Flange rear axleReference
Front tread143 to 194 cmReference
Rear tread140 to 193 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps120Reference
Cab Charging amps150Reference
Battery volts12Reference
Attachment overview
New Holland 655TL NSL loaderReference
New Holland 655TL MSL loaderReference
New Holland 710LU loaderReference
New Holland 715LU loaderReference
Speeds
With 18R34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
