Tractor · 2008Unverified

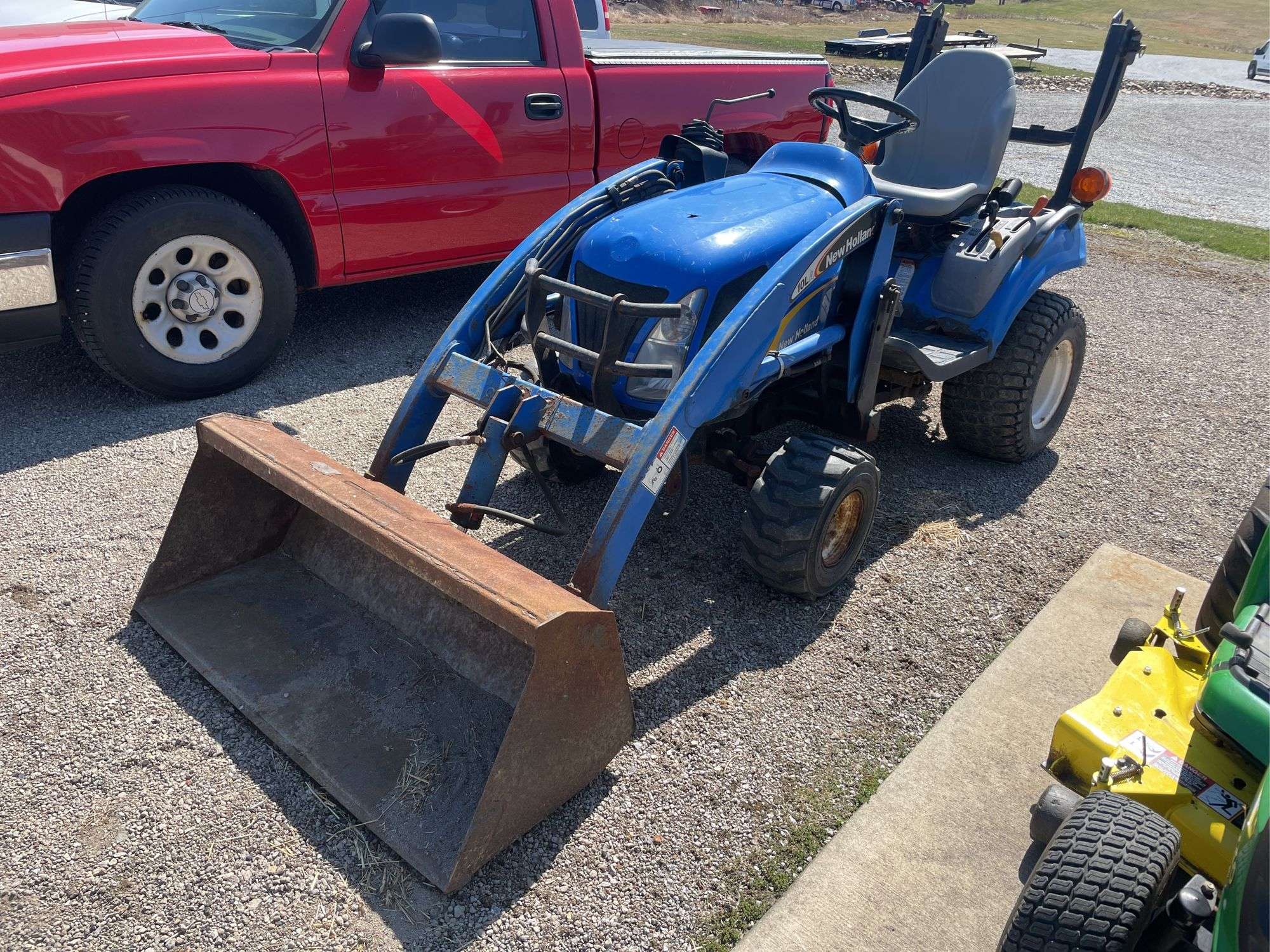

New Holland T1010

Name: New Holland T1010
Brand: New Holland

New Holland T1010 — T1000 Series · 20 hp. Reference specifications; pending source verification.

The New Holland T1010 is a tractor model with an approximate output of 20 hp, positioning it at the lower end of its class. It was manufactured in 2008. Key features of the model include a 3-cylinder diesel liquid-cooled engine and four-wheel drive with a hydrostatic transmission. The tractor has an operating weight of 659 kg and is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

20 hp

Weight

659 kg

Catalogue coverage

Variants represented

Richest spec table

49 rows

Recorded power

20 hp

Recorded weight

659 kg

Transmissions

hydrostatic

Production years

2008-2008

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew Holland (a part of CNH)Reference

Sub-Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Engine

Shibaura 1.0L 3-cyl dieselReference

Fuel tank26.9 LReference

Engine (gross)14.9 kWReference

Shibaura S753Reference

dieselReference

3-cylinderReference

liquid-cooled inlineReference

Displacement1.0 LReference

Bore/Stroke75 x 72 mmReference

Power (gross)14.9 kWReference

Rated RPM3000Reference

Starter volts12Reference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

PTO & Hydraulics

PTO (claimed)11.6 kWReference

Typeopen centerReference

Pump flow14.2 lpmReference

Total flow21.2 lpmReference

Steering flow7.0 lpmReference

Rear TypeIReference

Rear lift (at 24"/610mm)317 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Mid PTOindependentReference

Mid PTO Type2200Reference

Dimensions

Wheelbase139 cmReference

Weight659 kgReference

Lawn/turf front18x8.5-8Reference

Lawn/turf rear26x12-12Reference

Industrial front18x8.5-8Reference

Industrial rear26x12-12Reference

Length244 cmReference

Width117 cmReference

Height (ROPS)183 cmReference

Shipping weight659 kgReference

Ground clearance18 cmReference

New Holland T1010 attachments

60" mid-mount mower deckReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

60" Mower deck

Typemid-mount New HollandReference

Cutting width152 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
