Tractor · 2008Unverified

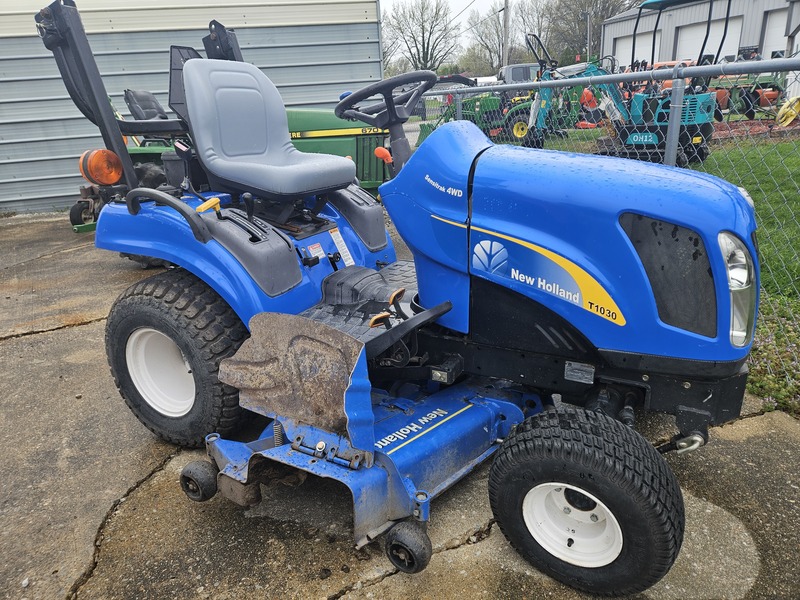

New Holland T1030
New Holland T1030 — T1000 Series · 26 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
26 hp
Weight
659 kg
Hover a source tag to verify
Overview
ManufacturerNew Holland (a part of CNH)Reference
Sub-Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Shibaura 1.1L 3-cyl dieselReference
Fuel tank26.9 LReference
Engine (gross)19.4 kWReference
Shibaura S773LReference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.1 LReference
Bore/Stroke77 x 81 mmReference
Power (gross)19.4 kWReference
Rated RPM3000Reference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
PTO (claimed)14.7 kWReference
Typeopen centerReference
Pump flow14.2 lpmReference
Total flow21.2 lpmReference
Steering flow7.0 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)317 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Mid PTOindependentReference
Mid PTO Type2200Reference
Dimensions
Wheelbase139 cmReference
Weight659 kgReference
Front tire18x8.5-18Reference
Rear tire26x12-12Reference
Ag front18x8.5-18Reference
Ag rear26x12-12Reference
Length244 cmReference
Width117 cmReference
Height (ROPS)183 cmReference
Shipping weight659 kgReference
Ground clearance18 cmReference
New Holland T1030 attachments
60" mid-mount mower deckReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
60" Mower deck
Typemid-mount New HollandReference
Cutting width152 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
