Tractor · 2008Unverified

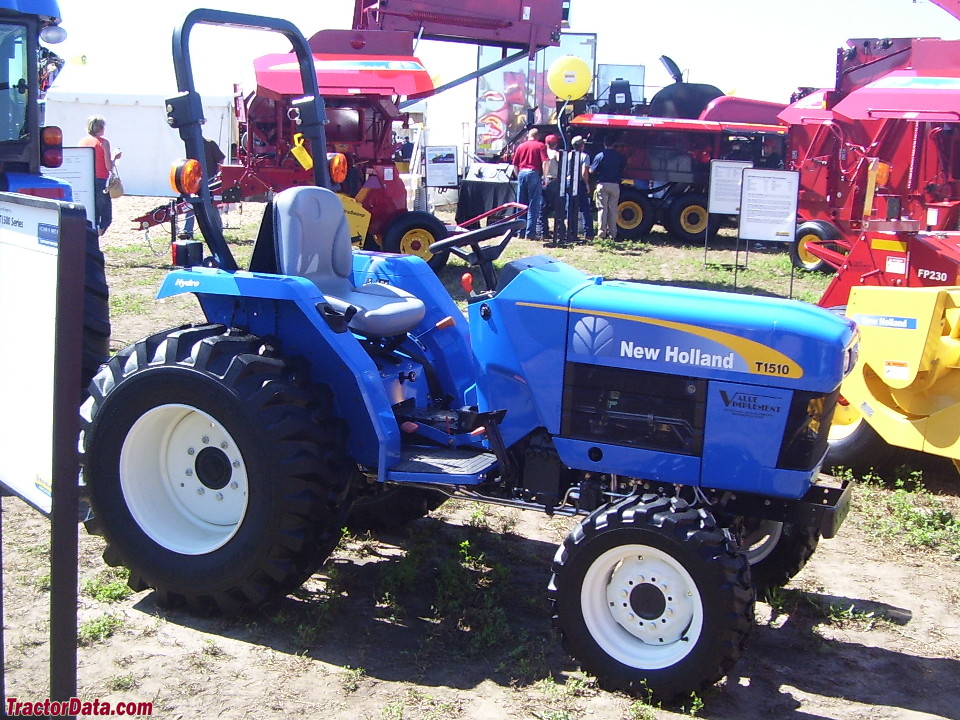

New Holland T1510

Name: New Holland T1510
Brand: New Holland

New Holland T1510 — T1500 Series · 26 hp. Reference specifications; pending source verification.

The New Holland T1510 is a tractor with a rated power output of 26 hp, categorised as a lighter model within its class. Manufactured between 2008 and 2013, this model features a 3-cylinder diesel liquid-cooled engine and mechanical front-wheel drive with a hydrostatic transmission. The tractor's operating weight is listed as 1081 kg, and it is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

26 hp

Max power

30 hp

Weight

1081 kg

Catalogue coverage

Variants represented

Richest spec table

117 rows

Recorded power

26 hp

Recorded weight

1081 kg

Transmissions

hydrostatic

Production years

2008-2013

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Compact Utility tractorReference

Drive4x2 2WDReference

Drive4x4 MFWD 4WD (optional)Reference

Steeringhydrostatic powerReference

Wet disc brakesReference

Foldable ROPS.Reference

Engine

Shibaura 1.5L 3-cyl dieselReference

Fuel tank26.9 LReference

Engine22.4 kWReference

Shibaura N843Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Power22.4 kWReference

Air cleanertwo-stageReference

Rated RPM2600Reference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders3 CylinderReference

Rated engine speed2,600 RPMReference

Cooling systemliquid-cooledReference

Transmission

hydrostaticReference

9-speed gearReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

TypegearReference

Gears9 forward and 3 reverseReference

Transmission TypeHSTReference

forward and reverse optionshydrostatic - infinite F and (3-range) R | gear - 9F and 3RReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)19.0 kWReference

PTO (claimed)17.9 kWReference

Typeopen centerReference

Pump flow23.5 lpmReference

Steering flow14.4 lpmReference

Rear TypeIReference

Rear lift (at ends)873 kgReference

Rear lift (at 24"/610mm)741 kgReference

Rear PTOtransmission (2WD)Reference

Rear PTOlive (4WD)Reference

Rear PTO Type540Reference

Mid PTOtransmission (2WD)Reference

Mid PTOlive (4WD)Reference

Mid PTO Type2000Reference

Dimensions

Wheelbase160 cmReference

Weight1081 kgReference

Front tire7.4x14Reference

Rear tire11.2x24Reference

Weight395 kgReference

Weight444 kgReference

Ag front7.4x14Reference

Ag rear11.2x24Reference

Lawn/turf front24x8.50-14Reference

Lawn/turf rear13.6x16Reference

Industrial front25x8.50-14Reference

Industrial rear15x19.5Reference

Length282 cmReference

Width157 cmReference

Height (ROPS)209 cmReference

Shipping weight1081 kgReference

Clearance (front axle)33 cmReference

New Holland T1510 attachments

60" mid-mount mower deckReference

72" mid-mount mower deckReference

snowblowerReference

bladeReference

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40Reference

Battery CCA420Reference

Battery volts12Reference

Attachment overview

60" mid-mount mower deckReference

72" mid-mount mower deckReference

SnowblowerReference

BladeReference

Front-end loaderReference

BackhoeReference

New Holland 920GH Backhoe

Backhoe typeNew Holland 920GH BackhoeReference

Transport height200 cmReference

Digging depth228 cmReference

Reach from pivot312 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1263 kgReference

Dipperstick force916 kgReference

New Holland 930GH Backhoe

Backhoe typeNew Holland 930GH BackhoeReference

Transport height215 cmReference

Digging depth259 cmReference

Reach from pivot340 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1859 kgReference

Dipperstick force966 kgReference

General

Make & ModelNew HollandReference

Rollover protective structureFoldable ROPSReference

Capacities

Capacity91.3 ciReference

Power

Max Power30 hpReference

PTO

PTO Power25.5 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Mid PTO RPM2,000 RPMReference

Steering & brakes

BrakesWet disc brakesReference

Steering typehydrostatic powerReference

Hydraulics

Hydraulics Typeopen centerReference

Steering & Implements flow3.8 gpm (6.2 gpm)Reference

Rear Hitch category (SAE designation)Category IReference

Rear Hitch maximum lift capacity873.2 kgReference

Dimensions & weight

Height Over ROPS209 cmReference

Overall Length283 cmReference

Overall Width157.5 cmReference

Front axle clearance33 cmReference

Overall weight1,081.8 kgReference

Wheels & tyres

Rear Wheel Type11.2x24Reference

Front Wheel Type7.4x14Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
