Tractor · 2008Unverified

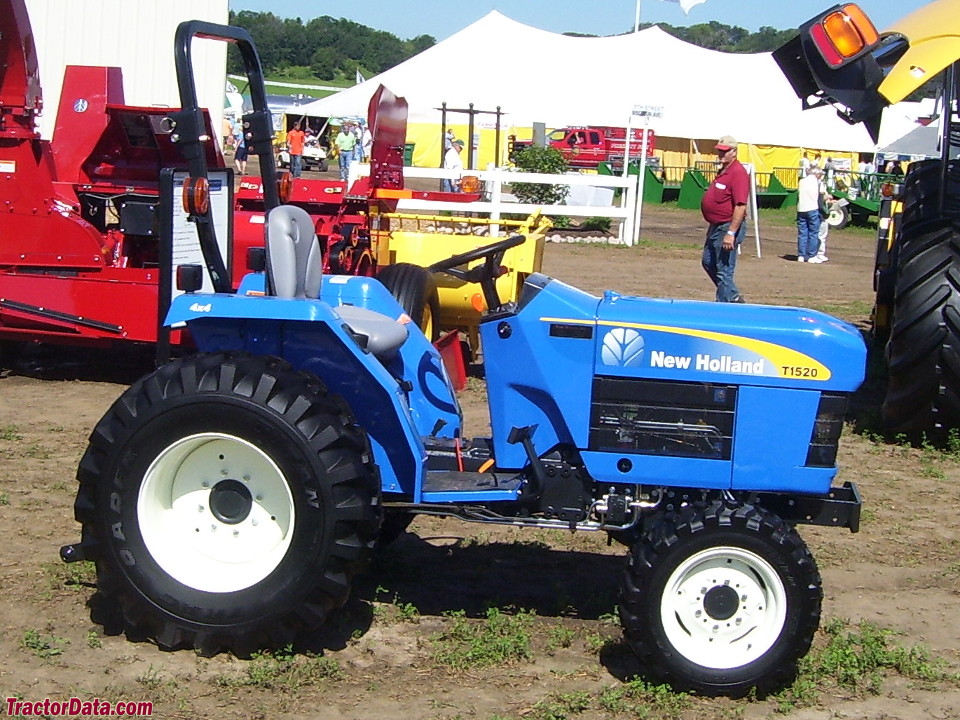

New Holland T1520

Name: New Holland T1520
Brand: New Holland

New Holland T1520 — T1500 Series · 35 hp. Reference specifications; pending source verification.

The New Holland T1520 is a tractor model with a rated power output of 35 hp, positioning it at the lighter end of its class. It was manufactured from 2008 to 2013. The tractor is equipped with a 3-cylinder diesel liquid-cooled engine and four-wheel drive, paired with a hydrostatic transmission. Its listed operating weight is 1088 kg, suitable for operations of up to 200 ac.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

35 hp

Max power

35 hp

Weight

1088 kg

Catalogue coverage

Variants represented

Richest spec table

116 rows

Recorded power

35 hp

Recorded weight

1088 kg

Transmissions

hydrostatic

Production years

2008-2013

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Engine

Shibaura 1.7L 3-cyl dieselReference

Fuel tank26.9 LReference

Engine (gross)26.1 kWReference

Shibaura N843LReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.7 LReference

EmissionsTier 4AReference

Power (gross)26.1 kWReference

Air cleanertwo-stageReference

Pre-heatingglow plugsReference

Rated RPM2600Reference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders3 CylinderReference

Rated engine speed2,600 RPMReference

Emissions complianceTier 4AReference

Cooling systemliquid-cooledReference

Transmission

hydrostaticReference

9-speed unsynchronized gearReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

Typeunsynchronized gearReference

Gears9 forward and 3 reverseReference

Transmission TypeHSTReference

Wheel Drive4WDReference

PTO & Hydraulics

Gear PTO (claimed)22.0 kWReference

Hydro PTO (claimed)20.9 kWReference

Typeopen centerReference

Pump flow23.5 lpmReference

Steering flow14.4 lpmReference

Rear TypeIReference

Rear lift (at 24"/610mm)741 kgReference

Rear PTOliveReference

Rear PTO Type540Reference

Mid PTOliveReference

Mid PTO Type2000Reference

Dimensions

Wheelbase160 cmReference

Weight1088 kgReference

Front tire7.4x14Reference

Rear tire11.2x24Reference

Weight395 kgReference

Weight444 kgReference

Ag front7.4x14Reference

Ag rear11.2x24Reference

Lawn/turf front24x8.50-14Reference

Lawn/turf rear13.6x16Reference

Industrial front25x8.50-14Reference

Industrial rear15x19.5Reference

Length282 cmReference

Width157 cmReference

Height (ROPS)209 cmReference

Shipping weight1088 kgReference

Front tread115 cmReference

Rear tread118 cmReference

New Holland T1520 attachments

60" mid-mount mower deckReference

72" mid-mount mower deckReference

snowblowerReference

bladeReference

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40Reference

Battery CCA420Reference

Battery volts12Reference

Attachment overview

60" mid-mount mower deckReference

72" mid-mount mower deckReference

SnowblowerReference

BladeReference

Front-end loaderReference

BackhoeReference

New Holland 920GH Backhoe

Backhoe typeNew Holland 920GH BackhoeReference

Transport height200 cmReference

Digging depth228 cmReference

Reach from pivot312 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1263 kgReference

Dipperstick force916 kgReference

New Holland 930GH Backhoe

Backhoe typeNew Holland 930GH BackhoeReference

Transport height215 cmReference

Digging depth259 cmReference

Reach from pivot340 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1859 kgReference

Dipperstick force966 kgReference

General

Make & ModelNew HollandReference

Rollover protective structureTwo-post folding ROPS.Reference

Capacities

Capacity101.4 ciReference

Power

Max Power35 hpReference

PTO

PTO Power29.5 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Mid PTO RPM2,000 RPMReference

Steering & brakes

BrakesWet disc brakesReference

Steering typePower steeringReference

Hydraulics

Hydraulics Typeopen centerReference

Steering & Implements flow3.8 gpm (6.2 gpm)Reference

Rear Hitch category (SAE designation)Category IReference

Dimensions & weight

Height Over ROPS209 cmReference

Overall Length283 cmReference

Overall Width157.5 cmReference

Overall weight1,088.6 kgReference

Wheels & tyres

Rear Wheel Type11.2x24Reference

Rear wheel tread range118.4 cmReference

Front Wheel Type7.4x14Reference

Front Wheel tread range115.1 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
