Tractor · 2011Unverified

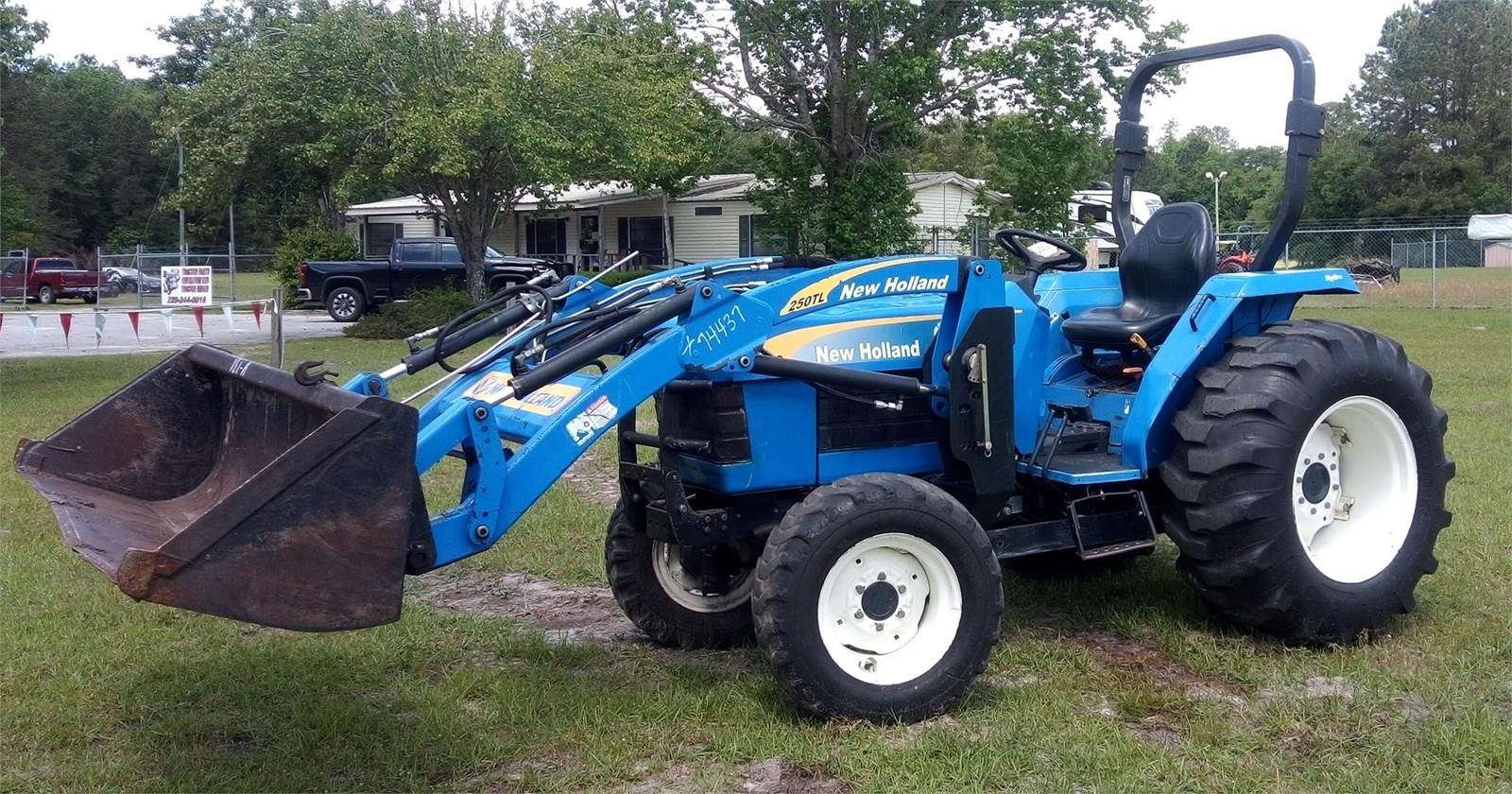

New Holland T1530
New Holland T1530 — T1500 Series · 45 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
45 hp
Weight
1501 kg
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Compact Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post foldable ROPS.Reference
Engine
Shibaura 2.2L 4-cyl dieselReference
Fuel tank39.0 LReference
Engine (gross)33.6 kWReference
Shibaura N844LReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke84 x 100 mmReference
EmissionsTier 4AReference
Power (gross)33.6 kWReference
Air cleanerdual elementReference
Pre-heatingglow plugsReference
Rated RPM2600Reference
Starter volts12Reference
Transmission
hydrostaticReference
12-speed sync shuttleReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
Typesync shuttleReference
Gears12 forward and reverseReference
Four gears in three ranges.Reference
PTO & Hydraulics
PTO (claimed)28.3 kWReference
PTO (claimed)26.8 kWReference
Typeopen centerReference
Pump flow37.1 lpmReference
Steering flow19.3 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)1056 kgReference
Rear PTOlive (gear)Reference
Rear PTOindependent (hydro)Reference
Rear PTO Type540Reference
Dimensions
Wheelbase186 cmReference
Weight1501 kgReference
Front tire7.4x14Reference
Rear tire11.2x24Reference
Weight395 kgReference
Weight444 kgReference
Ag front7.4x14Reference
Ag rear11.2x24Reference
Lawn/turf front24x8.50-14Reference
Lawn/turf rear13.6x16Reference
Industrial front25x8.50-14Reference
Industrial rear15x19.5Reference
Length309 cmReference
Width173 cmReference
Height (ROPS)247 cmReference
Shipping weight1501 kgReference
Front tread125 cmReference
Rear tread140 to 171 cmReference
New Holland T1530 attachments
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery CCA600Reference
Battery volts12Reference
New Holland 920GH Backhoe
Backhoe typeNew Holland 920GH BackhoeReference
Transport height200 cmReference
Digging depth228 cmReference
Reach from pivot312 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1263 kgReference
Dipperstick force916 kgReference
New Holland 930GH Backhoe
Backhoe typeNew Holland 930GH BackhoeReference
Transport height215 cmReference
Digging depth259 cmReference
Reach from pivot340 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1859 kgReference
Dipperstick force966 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
