Tractor · 2008Unverified

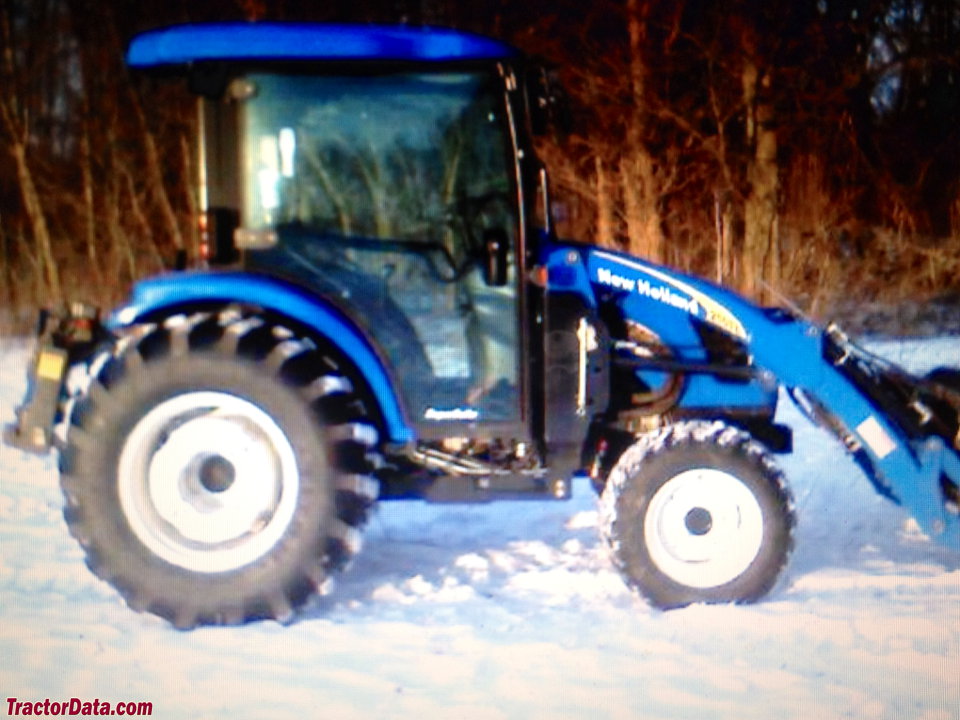

New Holland T2310

Name: New Holland T2310
Brand: New Holland

New Holland T2310 — T2300 Series · 40 hp. Reference specifications; pending source verification.

The New Holland T2310 is a tractor with a rated power output of 40 hp, categorising it as a lighter model within its class. Its engine, a 4-cylinder diesel liquid-cooled unit, powers a four-wheel drive system with a hydrostatic transmission. The T2310 has an operating weight of 1826 kg and is suited to operations covering up to 200 acres. The tractor was manufactured in 2008.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

40 hp

Weight

1826 kg

Catalogue coverage

Variants represented

Richest spec table

59 rows

Recorded power

40 hp

Recorded weight

1826 kg

Transmissions

hydrostatic

Production years

2008-2008

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Compact Utility tractorReference

Two- or four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS. Cab optional with air-conditioning.Reference

Engine

Shibaura 2.0L 4-cyl dieselReference

Fuel tank49.2 LReference

Engine (gross)29.8 kWReference

Shibaura N844Reference

dieselReference

4-cylinderReference

liquid-cooled inlineReference

Displacement2.0 LReference

Bore/Stroke84 x 90 mmReference

Power (gross)29.8 kWReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

hydrostaticReference

12-speed synchro shuttleReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

Typesynchro shuttleReference

Gears12 forward and reverseReference

PTO & Hydraulics

Gear PTO (claimed)26.1 kWReference

Hydro PTO (claimed)24.8 kWReference

Typeopen centerReference

Pump flow37.1 lpmReference

Steering flow19.3 lpmReference

Rear TypeIReference

Rear lift (at 24"/610mm)1056 kgReference

Rear PTOindependentReference

Clutchwet discReference

Rear PTO Type540 (1.375)Reference

Mid PTOindependentReference

Dimensions

Wheelbase186 cmReference

Wheelbase205 cmReference

Weight1826 kgReference

Front tire8-16Reference

Rear tire14.9-24Reference

Standard tires (ag)Front: 8-16. Rear: 14.9-24Reference

Lawn/turf front27x10.5-15Reference

Lawn/turf rear44x18-20Reference

Lawn/turf front27/12LL-15Reference

Lawn/turf rear22.5LL-16.1Reference

Industrial front10-16.5Reference

Industrial rear17.5L-24Reference

Length318 cmReference

Length328 cmReference

Width169 cmReference

Height (ROPS)241 cmReference

Height (cab)228 cmReference

Weight1826 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

ROPS Charging amps40Reference

Cab Charging amps55Reference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
