Tractor · 2008Unverified

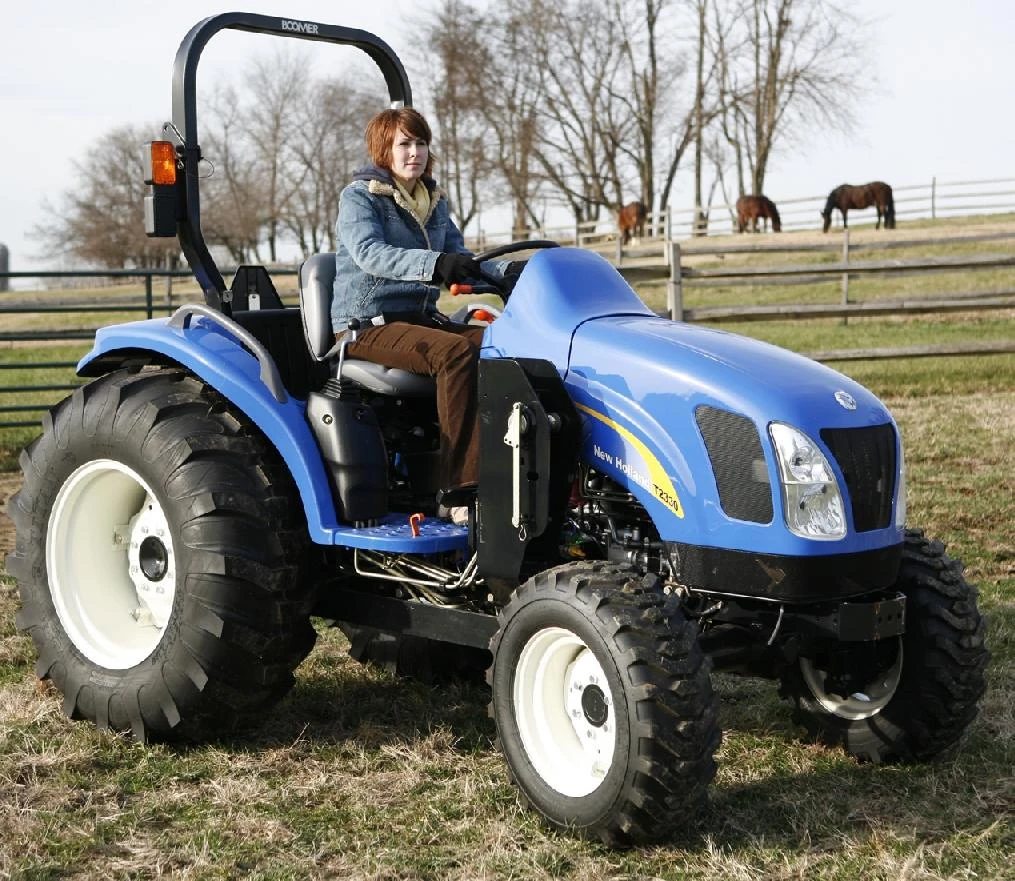

New Holland T2330
New Holland T2330 — T2300 Series · 50 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
50 hp
Max power
33.3 kW
Weight
1586 kg
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Shibaura 2.2L 4-cyl dieselReference
Fuel tank49.2 LReference
Engine (gross)37.3 kWReference
Shibaura N844LReference
dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement2.2 LReference
Bore/Stroke84 x 100 mmReference
Power (gross)37.3 kWReference
Compression22.4:1Reference
Rated RPM2800Reference
StarterelectricReference
Starter volts12Reference
Max power33.3 kWReference
Power at rated engine speed32.5 kWReference
Transmission
12-speed synchro shuttleReference
Typesynchro shuttleReference
Gears12 forward and reverseReference
PTO & Hydraulics
PTO (claimed)32.1 kWReference
PTO (tested)33.3 kWReference
Typeopen centerReference
Pump flow37.1 lpmReference
Steering flow19.3 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)1056 kgReference
Rear PTOindependentReference
Clutchwet discReference
Rear PTO Type540 (1.375)Reference
Power at rated PTO speed31.0 kWReference
Dimensions
Wheelbase186 cmReference
Weight1586 kgReference
Front tire8-16Reference
Rear tire14.9-24Reference
Standard tires (ag)Front: 8-16. Rear: 14.9-24Reference
Lawn/turf front27x10.5-15Reference
Lawn/turf rear44x18-20Reference
Lawn/turf front27/12LL-15Reference
Lawn/turf rear22.5LL-16.1Reference
Industrial front10-16.5Reference
Industrial rear17.5L-24Reference
Length318 cmReference
Width169 cmReference
Height (ROPS)241 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery volts12Reference
Test results
Diesel 12-speed 4WDDecember 2 - 3, 2008Link: Nebraska Tractor Test 1938 fileReference
PTO performanceReference
Fuel use14.8 l/hourReference
Fuel use12.5 l/hourReference
Fuel use15.1 l/hourReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
