Tractor · 2008Unverified

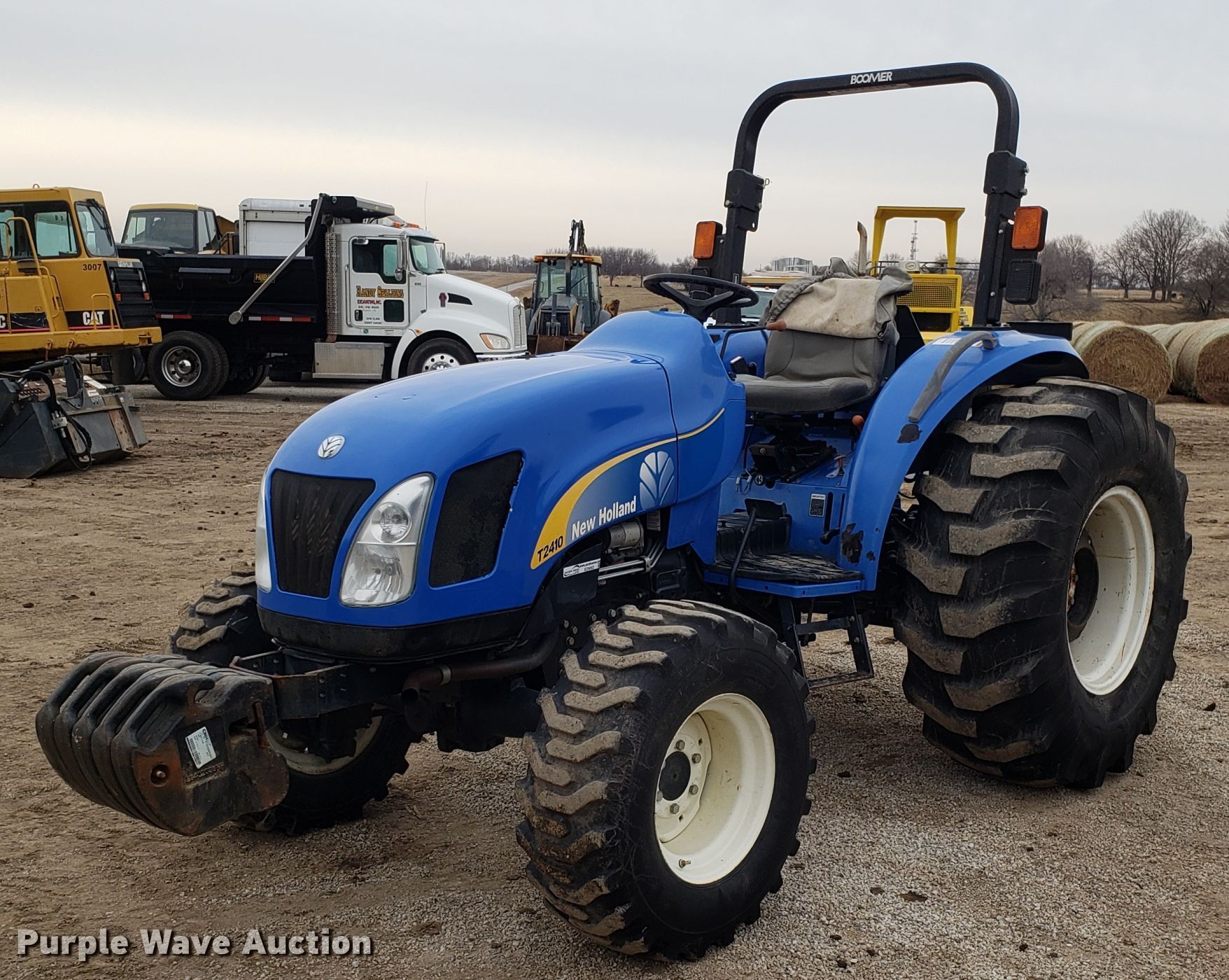

New Holland T2410
New Holland T2410 — T2400 Series · 55 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
55 hp
Weight
4260 to 5220 pounds
Hover a source tag to verify
Overview
DistributorNew HollandReference
ManufacturerShibauraReference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Engine
Shibaura 2.2L 4-cyl dieselReference
Fuel tank51.1 LReference
Engine (gross)41.0 kWReference
ShibauraReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke84 x 100 mmReference
Power (gross)41.0 kWReference
Air cleanerdual paper elementsReference
Rated RPM2700Reference
Starter volts12Reference
Power at rated engine speed35.8 kWReference
Transmission
12-speed mechanical shuttleReference
12-speed power shuttleReference
TransmissionSynchronized Shuttle ShiftReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Four synchronized gears in three ranges.Reference
TransmissionElectro-Hydraulic Shuttle ShiftReference
Typepower shuttleReference
PTO & Hydraulics
PTO (claimed)35.0 kWReference
PTO (tested)35.8 kWReference
Pump flow43.9 lpmReference
Steering flow20.8 lpmReference
Rear TypeII/IReference
Rear lift (at 24"/610mm)1571 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Power at rated PTO speed35.6 kWReference
Dimensions
Wheelbase189 cmReference
Weight4260 to 5220 poundsReference
Front tire8-16Reference
Rear tire14.9-24Reference
Ag front8-16Reference
Ag front9.5-16Reference
Ag rear14.9-24Reference
Ag rear14.9-28Reference
Lawn/turf front27x10.50-15Reference
Lawn/turf rear44-18.00-20Reference
Industrial front12-16.5Reference
Industrial rear18.4-24Reference
Length348 cmReference
Width181 cmReference
Height (ROPS)181 cmReference
Height (cab)224 cmReference
ROPS Shipping weight1932 kgReference
Cab Shipping weight2367 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Test results
Diesel 12-speed 4WDApril 29 - 30, 2004Link: Nebraska Tractor Test 1837 fileReference
PTO performanceReference
Fuel use14.8 l/hourReference
Fuel use14.0 l/hourReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
