Tractor · 2008Unverified

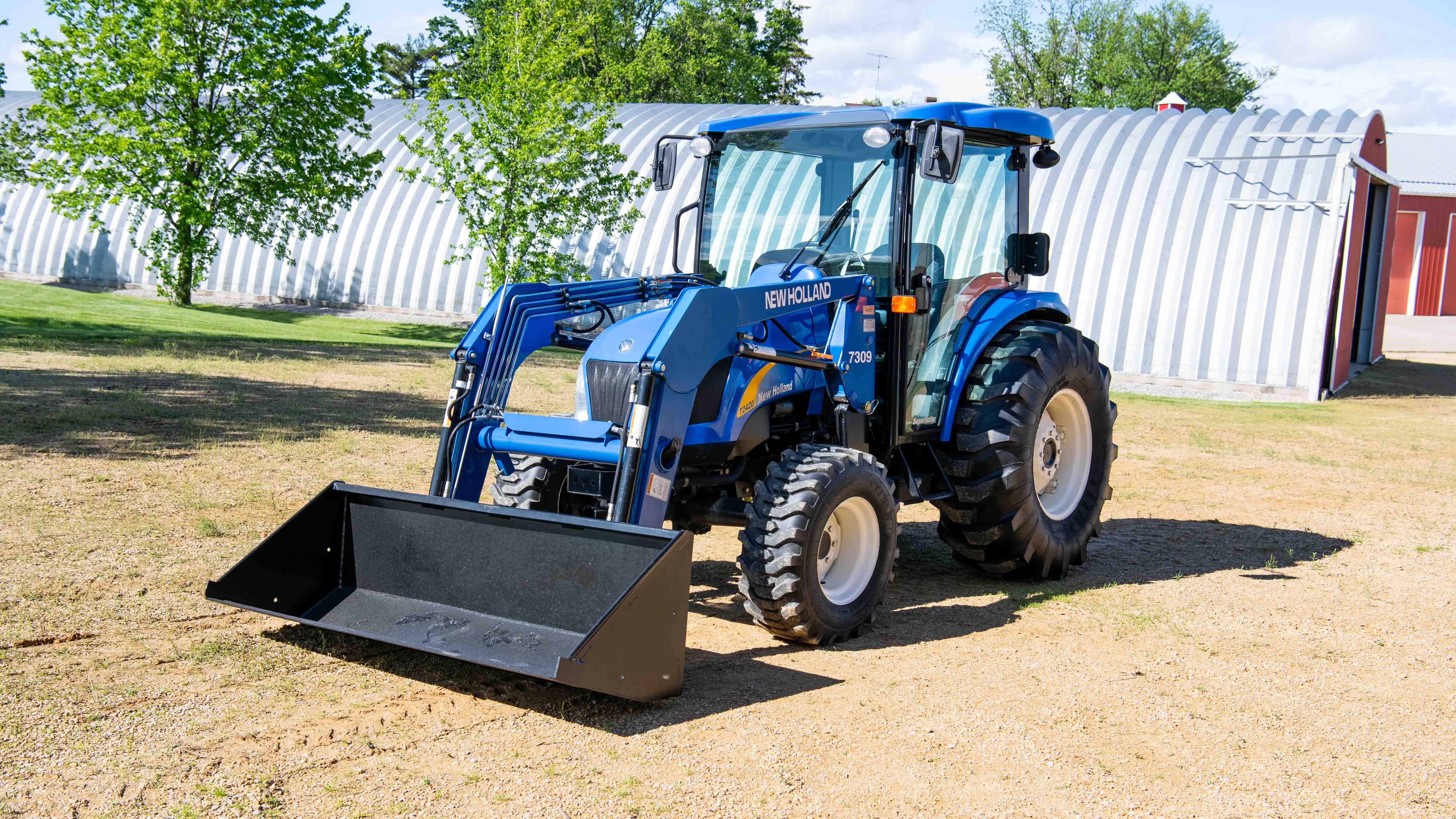

New Holland T2420

Name: New Holland T2420
Brand: New Holland

New Holland T2420 — T2400 Series · 60 hp. Reference specifications; pending source verification.

The New Holland T2420 is a tractor model with a rated power output of 60 hp, making it one of the more compact options in its class. Manufactured in 2008, it is equipped with a 4-cylinder turbocharged diesel liquid-cooled engine and features four-wheel drive with a 12-speed gearbox. The listed operating weight is between 4260 and 5220 pounds. It is designed for use on plots of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

60 hp

Weight

4260 to 5220 pounds

Catalogue coverage

Variants represented

Richest spec table

64 rows

Recorded power

60 hp

Recorded weight

1932 kg

Transmissions

12-speed mechanical shuttle

Production years

2008-2008

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorNew HollandReference

ManufacturerShibauraReference

Compact Utility tractorReference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Two-post ROPS. Cab optional.Reference

Engine

Shibaura 2.2L 4-cyl dieselReference

Fuel tank51.1 LReference

Engine (gross)44.7 kWReference

ShibauraReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.2 LReference

Bore/Stroke84 x 100 mmReference

Power (gross)44.7 kWReference

Air cleanerdual paper elementsReference

Rated RPM2800Reference

Starter volts12Reference

Power at rated engine speed38.5 kWReference

Transmission

12-speed mechanical shuttleReference

12-speed power shuttleReference

TransmissionSynchronized Shuttle ShiftReference

Typemechanical shuttleReference

Gears12 forward and reverseReference

Four synchronized gears in three ranges.Reference

TransmissionElectro-Hydraulic Shuttle ShiftReference

Typepower shuttleReference

PTO & Hydraulics

PTO (claimed)38.0 kWReference

PTO (tested)38.5 kWReference

Typeopen centerReference

Pump flow45.4 lpmReference

Steering flow20.8 lpmReference

Rear TypeII/IReference

Rear lift (at 24"/610mm)1571 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Power at rated PTO speed38.6 kWReference

Dimensions

Wheelbase189 cmReference

Weight4260 to 5220 poundsReference

Front tire8-16Reference

Rear tire14.9-24Reference

Ag front8-16Reference

Ag front9.5-16Reference

Ag rear14.9-24Reference

Ag rear14.9-28Reference

Lawn/turf front27x10.50-15Reference

Lawn/turf rear44-18.00-20Reference

Industrial front12-16.5Reference

Industrial rear18.4-24Reference

Length348 cmReference

Width181 cmReference

Height (ROPS)181 cmReference

Height (cab)224 cmReference

ROPS Shipping weight1932 kgReference

Cab Shipping weight2367 kgReference

Electrical

GroundnegativeReference

Battery volts12Reference

Test results

Diesel 12-speed 4WDSeptember 23, 2008 - March 11, 2009Link: Nebraska Tractor Test 1939 fileReference

PTO performanceReference

Fuel use14.4 l/hourReference

Fuel use13.2 l/hourReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
