Tractor · 2007Unverified

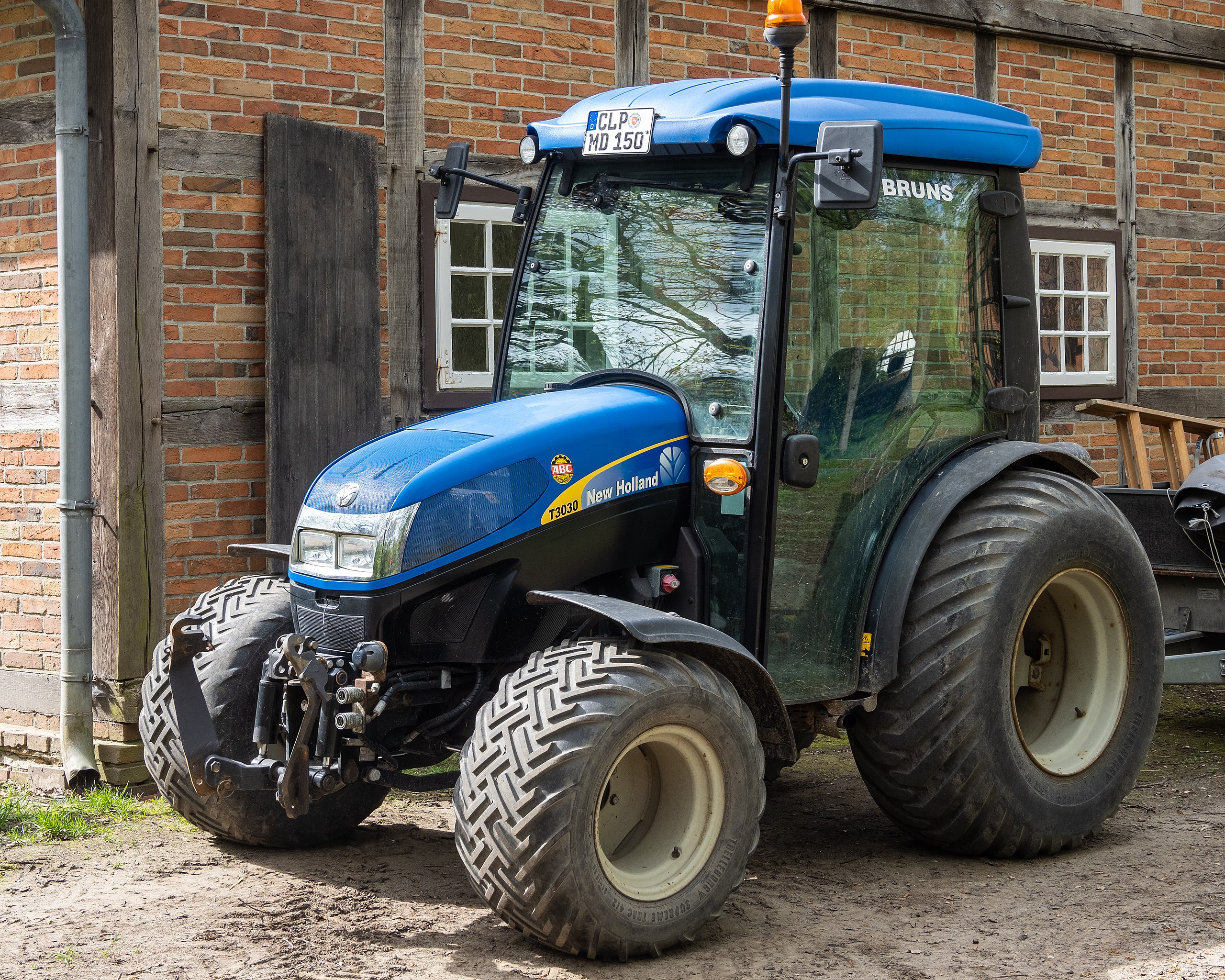

New Holland T3010

Name: New Holland T3010
Brand: New Holland

New Holland T3010 — T3000 Series · 35 hp. Reference specifications; pending source verification.

The New Holland T3010 is a compact tractor model rated at 35 hp. Manufactured from 2007 to 2010, it features a 3-cylinder diesel liquid-cooled engine, coupled with four-wheel drive and a 16-speed gearbox. The tractor's weight ranges from 3197 to 3527 pounds. It is suitable for tasks involving areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

35 hp

Max power

34.7 hp

Weight

3197 to 3527 pounds

Catalogue coverage

Variants represented

Richest spec table

61 rows

Recorded power

35 hp

Recorded weight

1450 kg

Transmissions

16-speed

Production years

2007-2010

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew Holland (a part of CNH)Reference

Compact Utility tractorReference

Four-wheel driveReference

Differential lockelectro-hydraulic rearReference

Two-post folding mid-mount ROPS. Cab optional with heat.Reference

Engine

Yanmar 1.6L 3-cyl dieselReference

Fuel tank40.1 LReference

Engine25.9 kWReference

Yanmar 3TNV88Reference

dieselReference

3-cylinderReference

liquid-cooled inlineReference

Displacement1.6 LReference

Bore/Stroke88 x 90 mmReference

Power25.9 kWReference

Rated RPM2800Reference

Torque108.5 NmReference

Torque RPM1200Reference

StarterelectricReference

Starter volts12Reference

No of Cylinders3 cylinderReference

Rated engine speed2,800 rpmReference

Engine torque at rated speed36.3 kgReference

Cooling systemliquid-cooledReference

Transmission

16-speedReference

Transmissionsynchro shuttleReference

Gears16 forward and reverseReference

Transmission TypeSync ShuttleReference

forward and reverse optionsSynchro Shuttle : 16 F and 16 RReference

Wheel Drive4WDReference

PTO & Hydraulics

Rear TypeIReference

Rear lift (at ends)1200 kgReference

Front HitchIReference

Front lift399 kgReference

Rear PTO Type540/540E (1.375)Reference

Front PTO Type1000Reference

Dimensions

Wheelbase169 cmReference

Weight3197 to 3527 poundsReference

Length329 cmReference

Width132 cmReference

Height (ROPS)189 cmReference

Height (cab)211 cmReference

ROPS Weight1450 kgReference

Cab Weight1599 kgReference

Electrical

GroundnegativeReference

Battery volts12Reference

Capacities

Capacity100.2 ciReference

Power

Max Power34.7 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Front PTO PowerAvailableReference

Hydraulics

Rear Hitch category (SAE designation)Category 1Reference

Rear Hitch maximum lift capacity1,200.2 kgReference

Front Hitch category (SAE designation)Category 1 optionalReference

Dimensions & weight

Height Over ROPS190 cmReference

Height Over Cab211.1 cmReference

Overall Length329.9 cmReference

Overall Width132.3 cmReference

Overall weight1,480.1 kgReference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
