Tractor · 2007Unverified

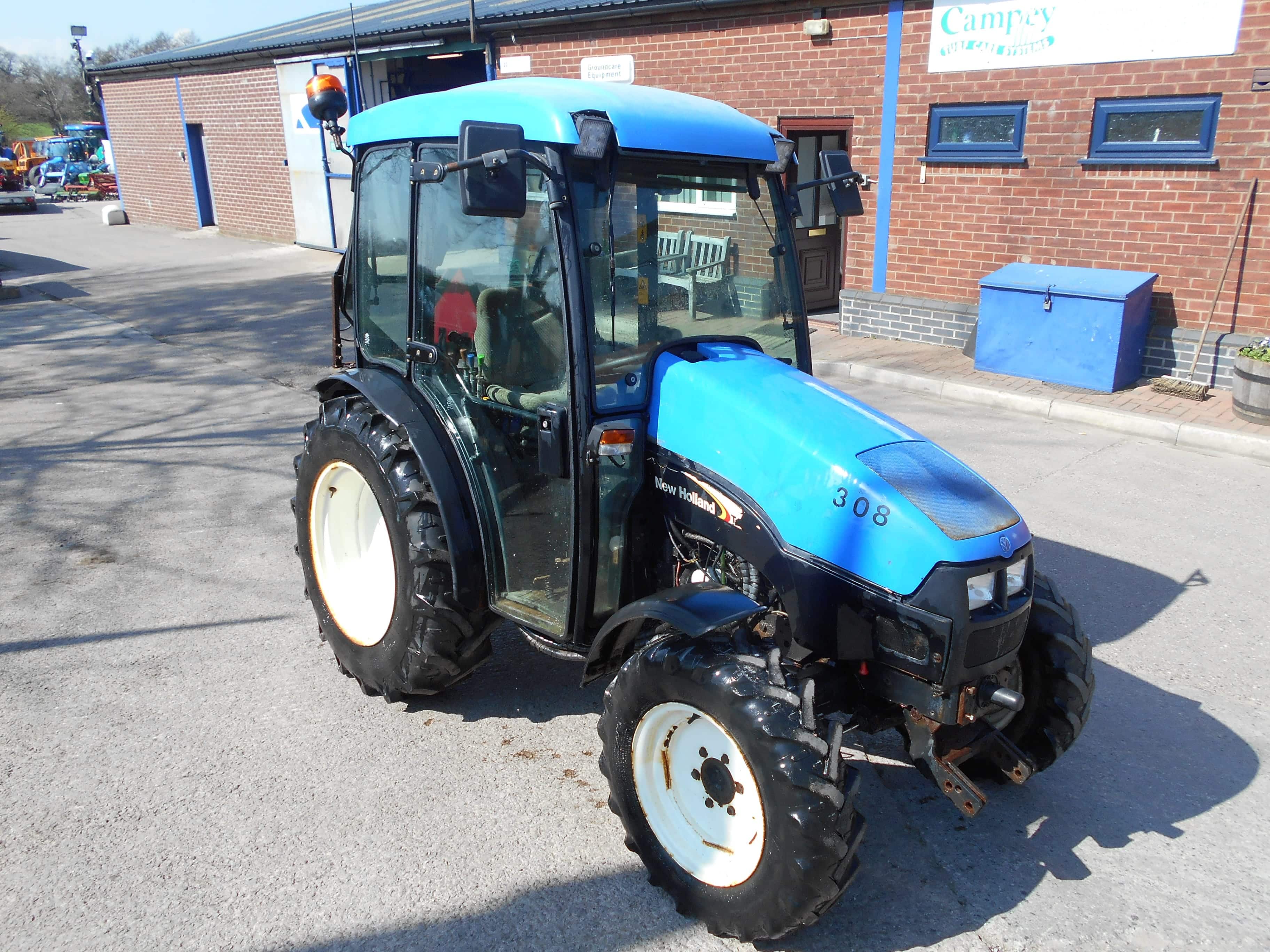

New Holland T3020

Name: New Holland T3020
Brand: New Holland

New Holland T3020 — T3000 Series · 43 hp. Reference specifications; pending source verification.

The New Holland T3020 tractor is a compact model with a rated output of 43 hp, produced between 2007 and 2010. It features a 4-cylinder diesel liquid-cooled engine, paired with a 16-speed gearbox and four-wheel drive. The T3020 has a listed weight of 3219 to 3549 pounds, and is suitable for tasks on land areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

43 hp

Max power

42.8 hp

Weight

3219 to 3549 pounds

Catalogue coverage

Variants represented

Richest spec table

60 rows

Recorded power

43 hp

Recorded weight

1460 kg

Transmissions

16-speed

Production years

2007-2010

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew Holland (a part of CNH)Reference

Compact Utility tractorReference

Four-wheel driveReference

Differential lockelectro-hydraulic rearReference

Two-post folding mid-mount ROPS. Cab optional with available air-conditioning.Reference

Engine

Yanmar 2.0L 4-cyl dieselReference

Fuel tank40.1 LReference

Engine31.9 kWReference

Yanmar 4TNV84Reference

dieselReference

4-cylinderReference

liquid-cooled inlineReference

Displacement2.0 LReference

Bore/Stroke84 x 90 mmReference

Power31.9 kWReference

Rated RPM2800Reference

Torque128.8 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

No of Cylinders4 cylindersReference

Rated engine speed2,800 rpmReference

Engine torque at rated speed43.1 kgReference

Cooling systemliquid-cooledReference

Transmission

16-speedReference

Transmissionsynchro shuttleReference

Gears16 forward and reverseReference

Transmission TypeSync ShuttleReference

forward and reverse optionsSynchro Shuttle : 16 F and 16 RReference

Wheel Drive4WDReference

PTO & Hydraulics

Rear TypeIReference

Rear lift (at ends)1200 kgReference

Front HitchIReference

Front lift399 kgReference

Rear PTO Type540/540E (1.375)Reference

Front PTO Type1000Reference

Dimensions

Wheelbase169 cmReference

Weight3219 to 3549 poundsReference

Length329 cmReference

Width137 cmReference

Height (ROPS)193 cmReference

Height (cab)213 cmReference

ROPS Weight1460 kgReference

Cab Weight1609 kgReference

Electrical

GroundnegativeReference

Battery volts12Reference

Capacities

Capacity121.7 ciReference

Power

Max Power42.8 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Front PTO PowerAvailableReference

Hydraulics

Rear Hitch category (SAE designation)Category 1Reference

Rear Hitch maximum lift capacity1,200.2 kgReference

Front Hitch category (SAE designation)Category 1 optionalReference

Dimensions & weight

Height Over ROPS193 cmReference

Height Over Cab214 cmReference

Overall Length329.9 cmReference

Overall Width137.9 cmReference

Overall weight1,460.1 kgReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
