Tractor · 2007Unverified

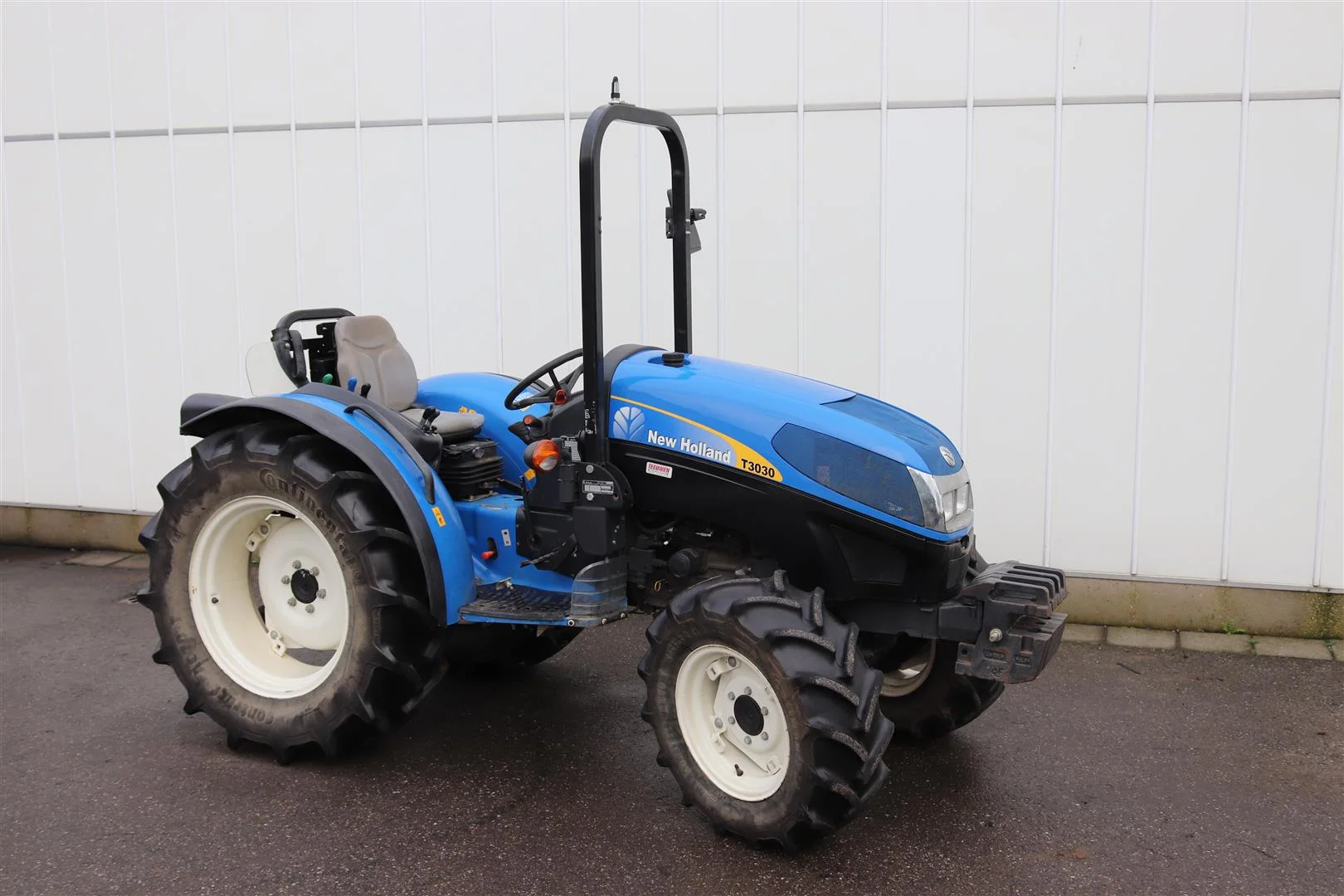

New Holland T3030

New Holland T3030 — T3000 Series · 47 hp. Reference specifications; pending source verification.

The New Holland T3030 is a tractor model with a rated output of 47 hp, a compact size within its class. It was manufactured from 2007 to 2010. The tractor is equipped with a 4-cylinder diesel liquid-cooled engine, driving through four-wheel drive via a 16-speed gearbox. It has a listed weight range of 3219 to 3549 pounds and is suited for tasks on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
47 hp
Max power
46.9 hp
Weight
3219 to 3549 pounds

Catalogue coverage

Variants represented
2
Richest spec table
60 rows
Recorded power
47 hp
Recorded weight
1460 kg
Transmissions
16-speed
Production years
2007-2010
Verified variants
0

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew Holland (a part of CNH)Reference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockelectro-hydraulic rearReference
Two-post folding mid-mount ROPS. Cab optional with available air-conditioning.Reference

Engine

Yanmar 2.2L 4-cyl dieselReference
Fuel tank40.1 LReference
Engine35.0 kWReference
Yanmar 4TNV88Reference
dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement2.2 LReference
Bore/Stroke88 x 90 mmReference
Power35.0 kWReference
Rated RPM2800Reference
Torque141.0 NmReference
Torque RPM1200Reference
StarterelectricReference
Starter volts12Reference
No of Cylinders4 cylinderReference
Rated engine speed2,800 rpmReference
Engine torque at rated speed47.2 kgReference
Cooling systemliquid-cooledReference

Transmission

16-speedReference
Transmissionsynchro shuttleReference
Gears16 forward and reverseReference
Transmission TypeSync ShuttleReference
forward and reverse optionsSynchro Shuttle : 16 F and 16 RReference
Wheel Drive4WDReference

PTO & Hydraulics

Rear TypeIReference
Rear lift (at ends)1200 kgReference
Front HitchIReference
Front lift399 kgReference
Rear PTO Type540/540E (1.375)Reference
Front PTO Type1000Reference

Dimensions

Wheelbase169 cmReference
Weight3219 to 3549 poundsReference
Length329 cmReference
Width137 cmReference
Height (ROPS)193 cmReference
Height (cab)213 cmReference
ROPS Weight1460 kgReference
Cab Weight1609 kgReference

Electrical

GroundnegativeReference
Battery volts12Reference

Capacities

Capacity133.6 ciReference

Power

Max Power46.9 hpReference

PTO

Rear PTO PowerAvailableReference
Rear PTO RPM540 RPMReference
Front PTO PowerAvailableReference

Hydraulics

Rear Hitch category (SAE designation)Category 1Reference
Rear Hitch maximum lift capacity1,200.2 kgReference
Front Hitch category (SAE designation)Category 1 optionalReference

Dimensions & weight

Height Over ROPS193 cmReference
Height Over Cab214 cmReference
Overall Length329.9 cmReference
Overall Width137.9 cmReference
Overall weight1,460.1 kgReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
