Tractor · 2008Unverified

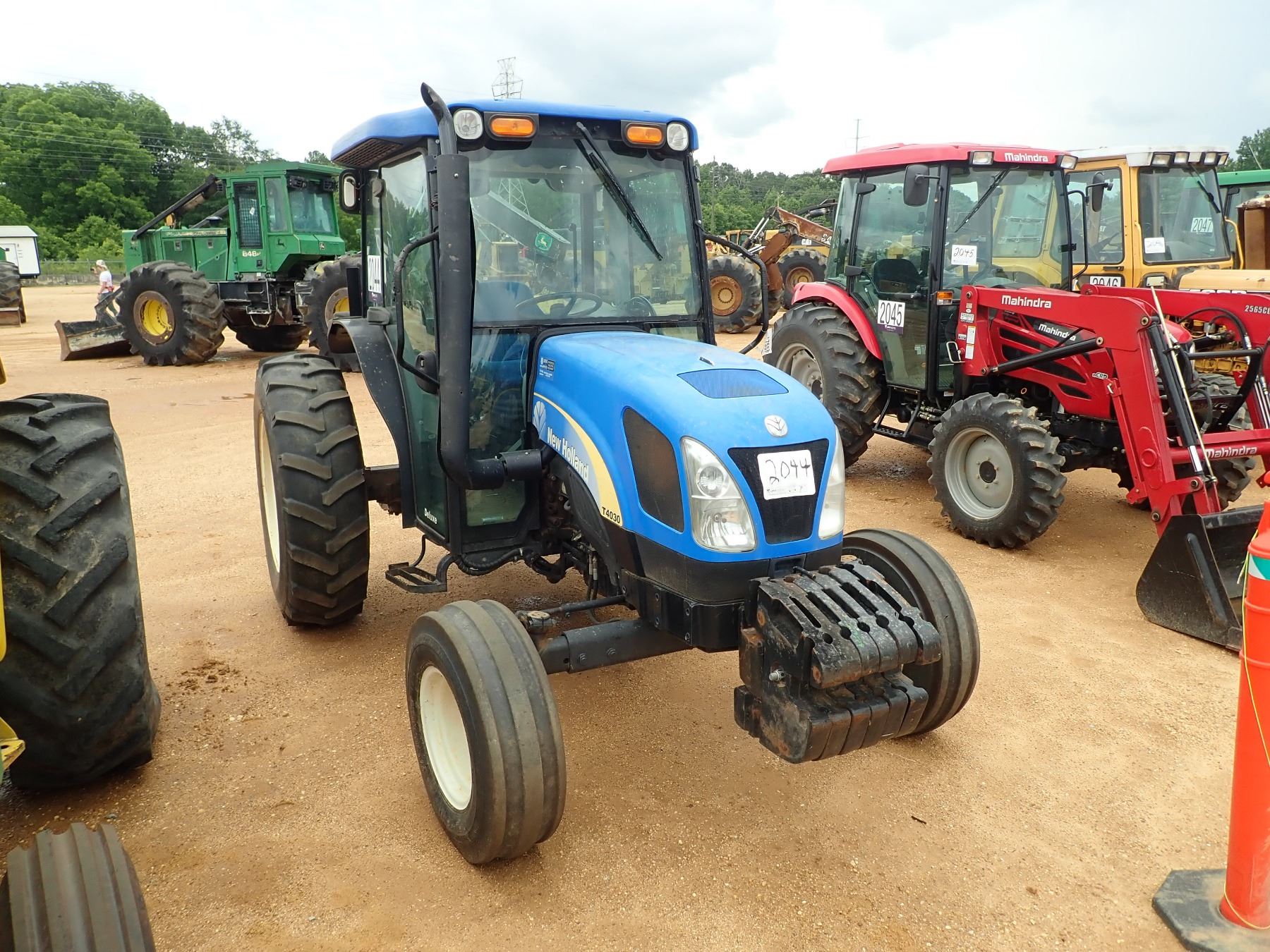

New Holland T4030
New Holland T4030 — T4000 Series · 76 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
76 hp
Max power
42.1 kW
Weight
5776 to 6768 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Utility tractorReference
Built in Jesi, ItalyReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Platform with ROPS. Cab on deluxe model with heat and air-conditioning.Reference
Variants
T4030standard chassisReference
T4030Fnarrow chassisReference
T4030Vultra-narrow chassisReference
TK4030VcrawlerReference
Farmall 75Csimilar CaseIH modelReference
Engine
FPT 3.2L 4-cyl dieselReference
Fuel tank81.8 LReference
Fuel tank74.9 LReference
Engine (gross)56.7 kWReference
Drawbar (tested)42.6 kWReference
FPT F5CReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement3.2 LReference
Bore/Stroke99 x 104 mmReference
EmissionsTier IIIReference
Power (gross)56.7 kWReference
Air cleanerdual dry elementReference
Pre-heatingthermostartReference
Rated RPM2300Reference
StarterelectricReference
Starter volts12Reference
Power at rated engine speed49.5 kWReference
Max power42.1 kWReference
Power at rated engine speed48.9 kWReference
Max power42.6 kWReference
Transmission
12-speed mechanical shuttleReference
16-speed mechanical shuttleReference
16-speed power shuttleReference
TransmissionSynchro CommandReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Four speeds and three ranges. Synchronized shift between speeds.Reference
Gears16 forward and reverseReference
Typepower shuttleReference
PTO & Hydraulics
PTO (claimed)46.2 kWReference
PTO (tested)49.5 kWReference
Typeopen centerReference
Pressure190.0 barReference
Valves1 to 5Reference
Pump flow48.4 lpmReference
Pump flow60.9 lpmReference
Steering flow28.0 lpmReference
Steering flow35.6 lpmReference
Rear TypeII/IReference
Rear lift (at 24"/610mm)1797 kgReference
Rear PTOindependentReference
Clutch280mm mechanical dry discReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2196Reference
Power at rated PTO speed48.7 kWReference
Power at rated PTO speed48.2 kWReference
Dimensions
Wheelbase203 cmReference
Wheelbase209 cmReference
Wheelbase211 cmReference
Wheelbase217 cmReference
Wheelbase240 cmReference
Weight5776 to 6768 poundsReference
Front tire11.2R24Reference
Rear tire16.9R30Reference
Standard tires (ag)Front: 11.2R24. Rear: 16.9R30Reference
Lawn/turf front13.6-16.1Reference
Lawn/turf rear16.9-24Reference
Lawn/turf front12LL-16Reference
Lawn/turf rear22.5L-16.1Reference
Industrial front12.5/80-18Reference
Industrial rear16.9-24Reference
Length343 cmReference
Length349 cmReference
Height (Folded ROPS)197 cmReference
Height (cab)232 cmReference
Front tread123 to 194 cmReference
Rear tread123 to 194 cmReference
Shipping2619 kgReference
Shipping2869 kgReference
Shipping2820 kgReference
Shipping3069 kgReference
2WD Max front axle2100 kgReference
4WD Max front axle2499 kgReference
Max rear axle3700 kgReference
New Holland T4030 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps85Reference
Battery CCA730Reference
Battery volts12Reference
Attachment overview
New Holland 810TL loaderReference
New Holland 820TL loaderReference
Test results
OECD 2454: diesel 12-speed 4WDReference
OECD 2455: diesel 16-speed 4WDReference
Diesel 12-speed 4WDApril 2008 - 2008, Link: OCED Tractor Test 2454 fileReference
PTO performanceReference
Fuel use16.3 l/hourReference
Drawbar performanceReference
Gear 3M used for power test.Reference
Max pull2844 kgReference
Gear 3L used for pull test.Reference
Diesel 16-speed 4WDApril 2008 - May 2008, Link: OCED Tractor Test 2455 fileReference
Gear 3MH used for power test.Reference
Max pull3177 kgReference
Gear 1MH used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
