Tractor · Unverified

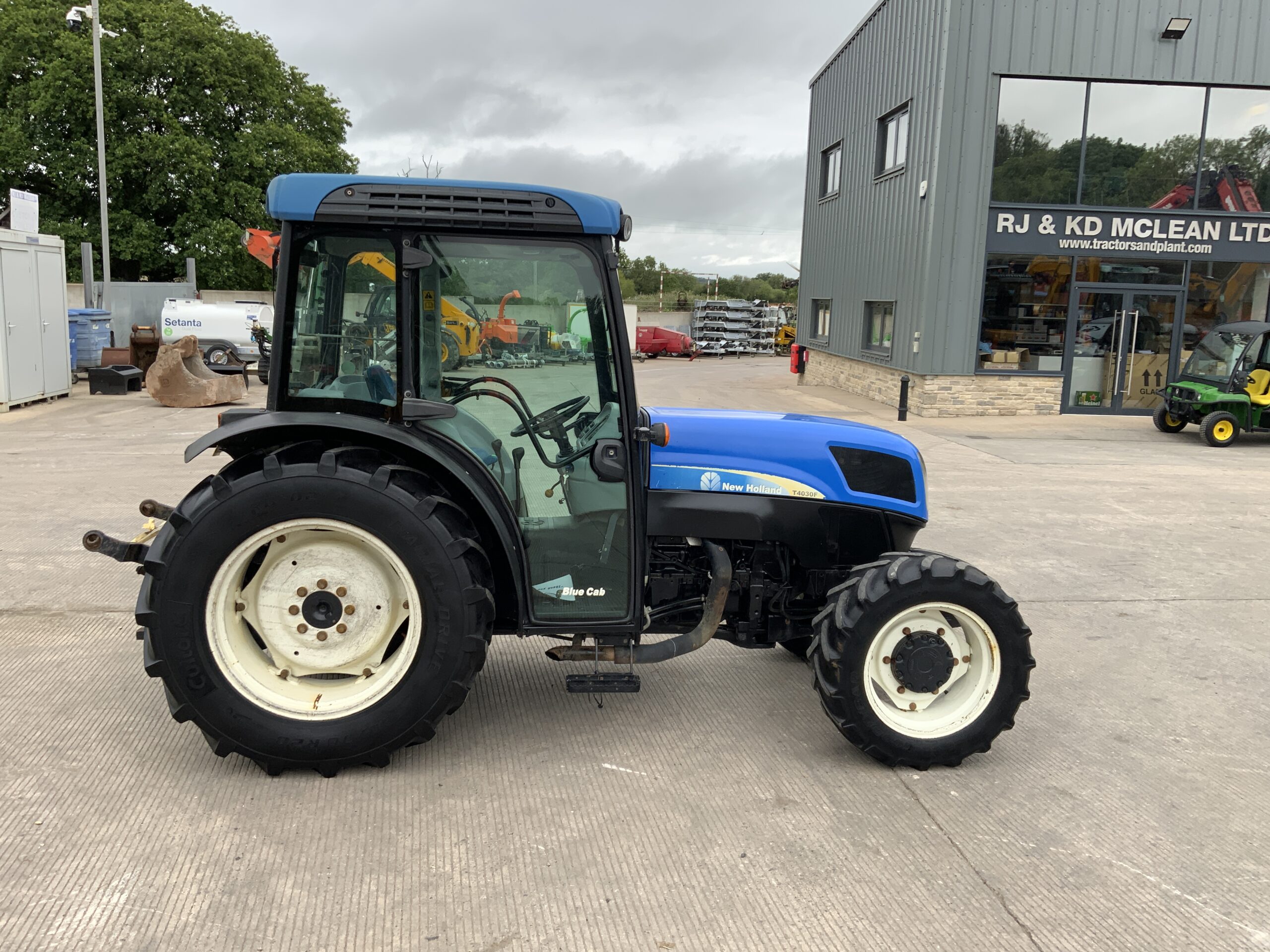

New Holland T4030F

Name: New Holland T4030F
Brand: New Holland

New Holland T4030F · 76 hp. Reference specifications; pending source verification.

The New Holland T4030F is a tractor with a rated power output of 76 hp, a mid-range figure for its class. It is equipped with a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with a four-wheel drive system and a 16-speed gearbox. The tractor's operating weight is listed as between 6089 and 6415 pounds. It is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

76 hp

Weight

6089 to 6415 pounds

Catalogue coverage

Variants represented

Richest spec table

55 rows

Recorded power

76 hp

Transmissions

16-speed mechanical shuttle

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Built in Jesi, ItalyReference

Two-wheel driveReference

Platform with ROPS. Cab optional with heat and air-conditioning.Reference

Variants

T4030standard chassisReference

T4030Fnarrow chassisReference

T4030Vultra-narrow chassisReference

TK4030VcrawlerReference

Engine

New Holland 3.2L 4-cyl dieselReference

Fuel tank73.1 LReference

Engine (gross)56.7 kWReference

New Holland F5CReference

turbocharged intercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.2 LReference

Power (gross)56.7 kWReference

Air cleanerdual dry elementReference

Rated RPM2300Reference

Torque329.5 NmReference

Torque RPM1250Reference

Starter volts12Reference

Transmission

16-speed mechanical shuttleReference

16-speed power shuttleReference

32-speed power shuttleReference

TransmissionSynchro CommandReference

Typemechanical shuttleReference

Gears16 forward and reverseReference

Typepower shuttleReference

TransmissionDual CommandReference

Gears32 forward and 16 reverseReference

PTO & Hydraulics

PTO (claimed)46.2 kWReference

Typeopen centerReference

Pressure190.0 barReference

Valves2 to 3Reference

Pump flow48.4 lpmReference

Pump flow65.1 lpmReference

Steering flow27.3 lpmReference

Steering flow34.8 lpmReference

Rear PTO Type540/1000Reference

Dimensions

Wheelbase208 cmReference

Wheelbase234 cmReference

Weight6089 to 6415 poundsReference

Width148 cmReference

2761 kgReference

2839 kgReference

2831 kgReference

2909 kgReference

Steering wheel129 cmReference

Electrical

Charging systemalternatorReference

Charging amps120Reference

Battery CCA800Reference

Battery volts12Reference

New Holland T4030F Height

ROPS227 cmReference

Cab217 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
