Tractor · Unverified

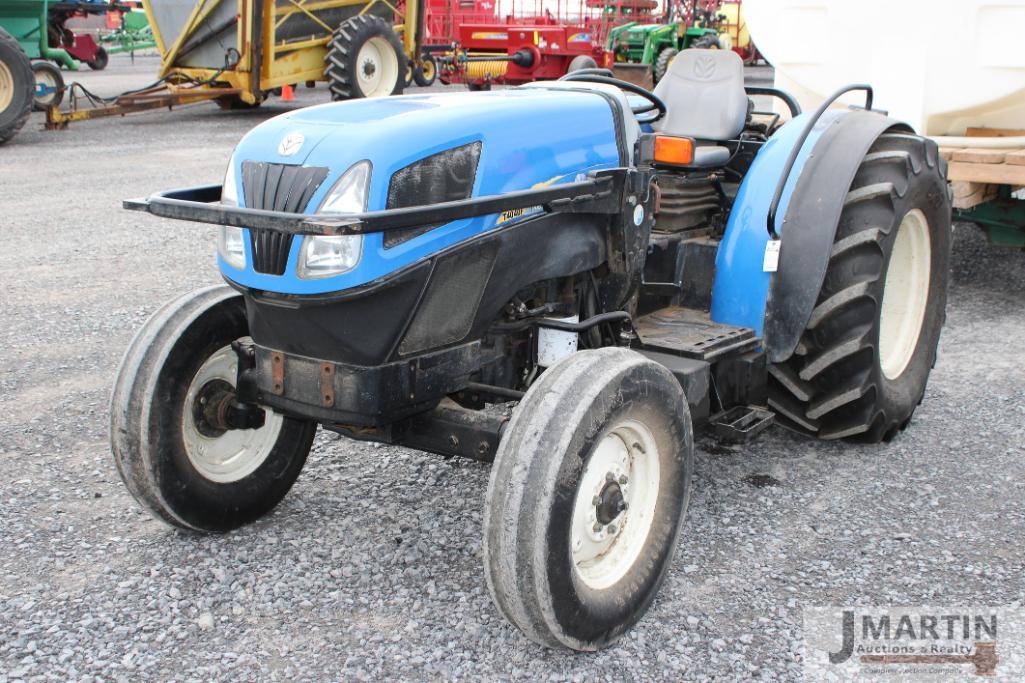

New Holland T4040F
New Holland T4040F · 87 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
87 hp
Weight
6089 to 6415 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Built in Jesi, ItalyReference
Two-wheel driveReference
Platform with ROPS. Cab optional with heat and air-conditioning.Reference
Variants
T4040conventional chassisReference
T4040Fnarrow chassisReference
T4040Vultra-narrow chassisReference
Engine
New Holland 3.2L 4-cyl dieselReference
Fuel tank73.1 LReference
Engine (gross)64.9 kWReference
New Holland F5CReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.2 LReference
Power (gross)64.9 kWReference
Air cleanerdual dry elementReference
Rated RPM2300Reference
Torque351.2 NmReference
Torque RPM1250Reference
Starter volts12Reference
Transmission
16-speed mechanical shuttleReference
16-speed power shuttleReference
32-speed power shuttleReference
TransmissionSynchro CommandReference
Typemechanical shuttleReference
Gears16 forward and reverseReference
Typepower shuttleReference
TransmissionDual CommandReference
Gears32 forward and 16 reverseReference
PTO & Hydraulics
PTO (claimed)53.7 kWReference
Typeopen centerReference
Pressure190.0 barReference
Valves2 to 3Reference
Pump flow48.4 lpmReference
Pump flow65.1 lpmReference
Steering flow27.3 lpmReference
Steering flow34.8 lpmReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase208 cmReference
Wheelbase234 cmReference
Weight6089 to 6415 poundsReference
Width148 cmReference
2761 kgReference
2839 kgReference
2831 kgReference
2909 kgReference
Steering wheel129 cmReference
Electrical
Charging systemalternatorReference
Charging amps120Reference
Battery CCA800Reference
Battery volts12Reference
New Holland T4040F Height
ROPS227 cmReference
Cab217 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
