Tractor · Unverified

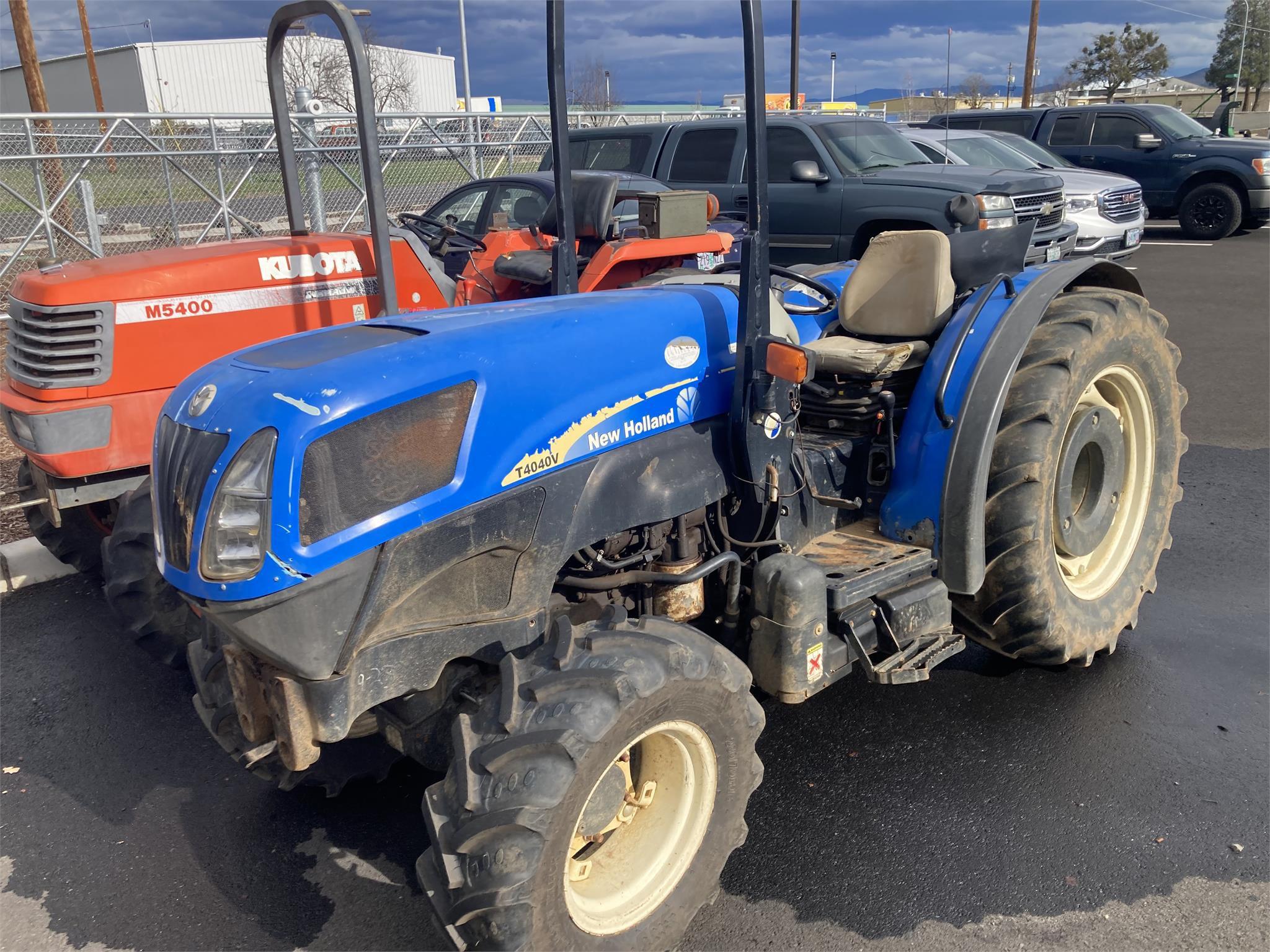

New Holland T4040V
New Holland T4040V · 87 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
87 hp
Weight
5108 to 5975 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Built in Jesi, ItalyReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Platform with ROPS. Cab optional with heat and air-conditioning.Reference
Variants
T4040conventional chassisReference
T4040Fnarrow chassisReference
T4040Vultra-narrow chassisReference
Engine
New Holland 3.2L 4-cyl dieselReference
Fuel tank73.1 LReference
Engine (gross)64.9 kWReference
New Holland F5CReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.2 LReference
Power (gross)64.9 kWReference
Air cleanerdual dry elementReference
Rated RPM2300Reference
Torque351.2 NmReference
Torque RPM1250Reference
Starter volts12Reference
Transmission
16-speed mechanical shuttleReference
16-speed power shuttleReference
TransmissionSynchro CommandReference
Typemechanical shuttleReference
Gears16 forward and reverseReference
Typepower shuttleReference
PTO & Hydraulics
PTO (claimed)53.7 kWReference
Typeopen centerReference
Pressure190.0 barReference
Valves2 to 3Reference
Pump flow65.1 lpmReference
Steering flow34.8 lpmReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase208 cmReference
Wheelbase209 cmReference
Weight5108 to 5975 poundsReference
Width107 cmReference
2316 kgReference
2458 kgReference
2567 kgReference
2710 kgReference
Steering wheel129 cmReference
Electrical
Charging systemalternatorReference
Charging amps120Reference
Battery CCA800Reference
Battery volts12Reference
New Holland T4040V Height
ROPS225 cmReference
Cab214 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
