Tractor · 2008Unverified

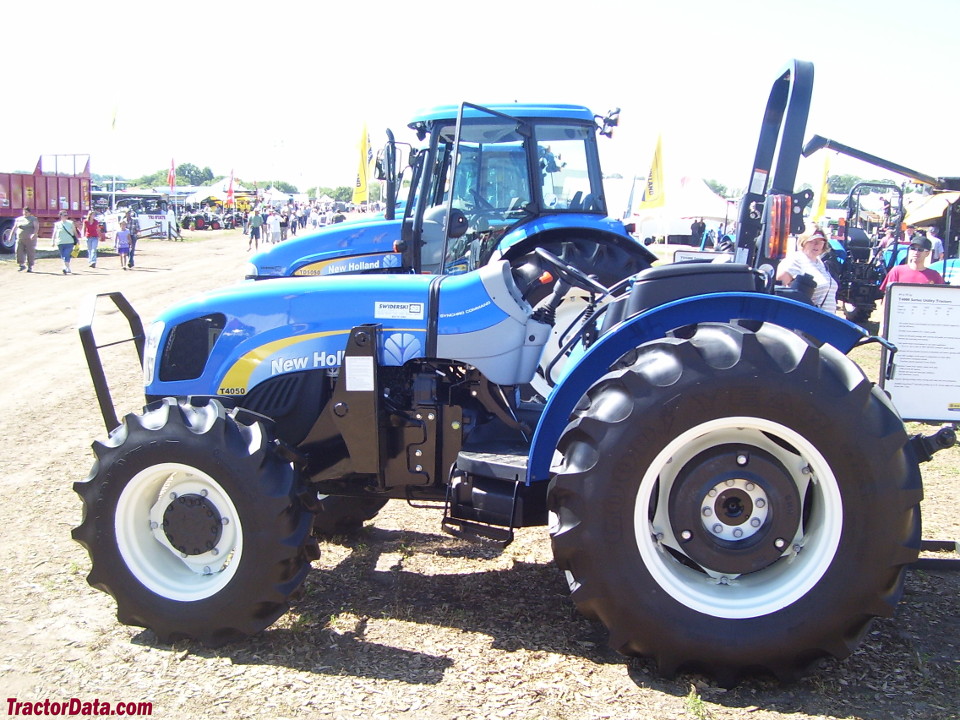

New Holland T4050
New Holland T4050 — T4000 Series · 95 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
95 hp
Max power
55.0 kW
Weight
6614 to 7055 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Utility tractorReference
Built in Jesi, ItalyReference
Four-wheel driveReference
Differential lockmechanical rearReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Platform with ROPS. Cab on deluxe model with heat and air-conditioning.Reference
Variants
T4050standard chassisReference
T4050Fnarrow chassisReference
T4050Vultra-narrow chassisReference
TK4050crawlerReference
TK4050Mmountain crawler (wide)Reference
Farmall 95Csimilar CaseIH modelReference
Engine
FPT 4.5L 4-cyl dieselReference
Fuel tank81.8 LReference
Fuel tank87.8 LReference
Engine (gross)70.8 kWReference
Drawbar (tested)55.4 kWReference
FPT NEFReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier IIIReference
Power (gross)70.8 kWReference
Air cleanerdual dry elementReference
Pre-heatingthermostartReference
Rated RPM2300Reference
StarterelectricReference
Starter volts12Reference
Power at rated engine speed66.9 kWReference
Max power55.0 kWReference
Max power55.4 kWReference
Transmission
16-speed mechanical shuttleReference
16-speed power shuttleReference
TransmissionSynchro CommandReference
Typemechanical shuttleReference
Gears16 forward and reverseReference
Typepower shuttleReference
PTO & Hydraulics
PTO (claimed)59.7 kWReference
PTO (tested)66.9 kWReference
Typeopen centerReference
Pressure190.0 barReference
Valves1 to 5Reference
Pump flow60.9 lpmReference
Steering flow35.6 lpmReference
Rear TypeII/IReference
Rear lift (at 24"/610mm)1797 kgReference
Rear PTOindependentReference
Clutch280mm mechanical dry discReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2196Reference
Power at rated PTO speed67.1 kWReference
Power at rated PTO speed66.4 kWReference
Dimensions
Wheelbase212 cmReference
Wheelbase218 cmReference
Wheelbase220 cmReference
Wheelbase226 cmReference
Wheelbase249 cmReference
Weight6614 to 7055 poundsReference
Front tire11.2R24Reference
Rear tire16.9R30Reference
Standard tires (ag)Front: 11.2R24. Rear: 16.9R30Reference
Lawn/turf front13.6-16.1Reference
Lawn/turf rear16.9-24Reference
Lawn/turf front12LL-16Reference
Lawn/turf rear22.5L-16.1Reference
Industrial front12.5/80-18Reference
Industrial rear16.9-24Reference
Length352 cmReference
Length357 cmReference
Height (Folded ROPS)197 cmReference
Height (cab)232 cmReference
Front tread123 to 194 cmReference
Rear tread123 to 194 cmReference
Shipping3000 kgReference
Shipping3200 kgReference
2WD Max front axle2100 kgReference
4WD Max front axle2499 kgReference
Max rear axle3700 kgReference
New Holland T4050 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Battery CCA800Reference
Battery volts12Reference
Attachment overview
New Holland 810TL loaderReference
New Holland 820TL loaderReference
Test results
OECD 2460: diesel 12-speed 4WDReference
OECD 2457: diesel 16-speed 4WDReference
Diesel 12-speed 4WDMay 2008 - July 2008, Link: OCED Tractor Test 2460 fileReference
PTO performanceReference
Fuel use20.4 l/hourReference
Fuel use20.1 l/hourReference
Drawbar performanceReference
Gear 3M used for power test.Reference
Max pull2882 kgReference
Gear 2M used for pull test.Reference
Diesel 16-speed 4WDMay 2008 - July 2008, Link: OCED Tractor Test 2457 fileReference
Gear 3MH used for power test.Reference
Max pull3288 kgReference
Gear 2ML used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
