Tractor · Unverified

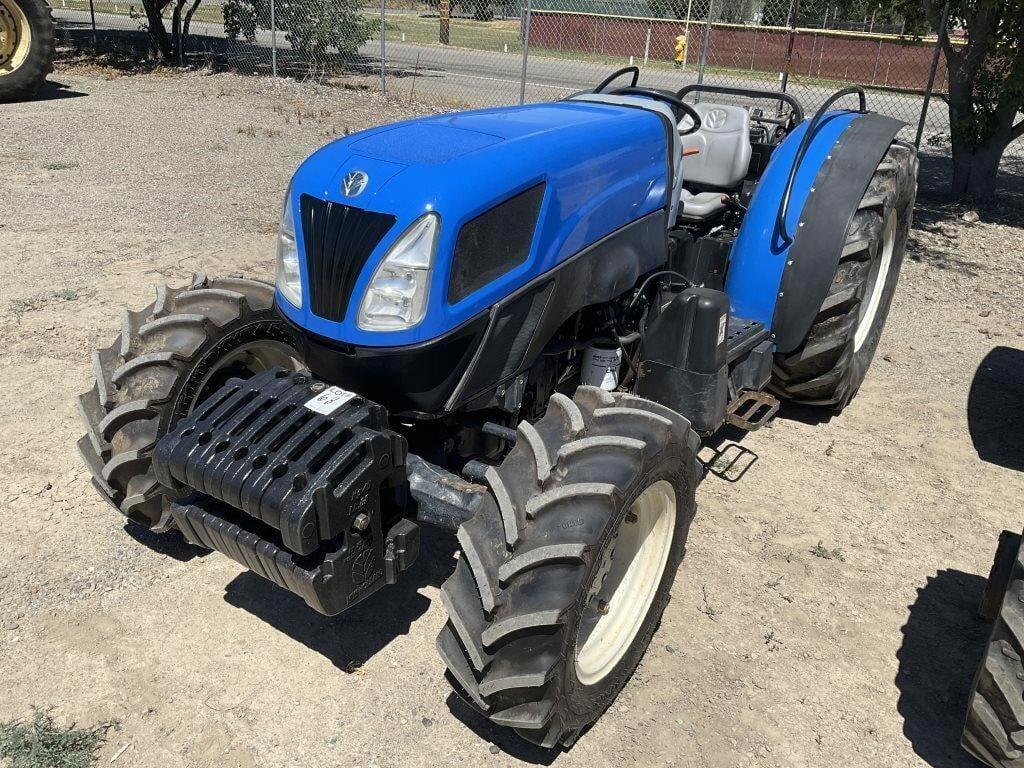

New Holland T4050F
New Holland T4050F · 95 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
95 hp
Weight
6266 to 6614 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Built in Jesi, ItalyReference
Two-wheel driveReference
Platform with ROPS. Cab optional with heat and air-conditioning.Reference
Variants
T4050standard chassisReference
T4050Fnarrow chassisReference
T4050Vultra-narrow chassisReference
TK4050crawlerReference
TK4050Mmountain crawler (wide)Reference
Engine
New Holland 4.5L 4-cyl dieselReference
Fuel tank73.1 LReference
Engine (gross)70.8 kWReference
New Holland NEFReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Power (gross)70.8 kWReference
Air cleanerdual dry elementReference
Rated RPM2300Reference
Torque397.3 NmReference
Torque RPM1300Reference
Starter volts12Reference
Transmission
16-speed mechanical shuttleReference
16-speed power shuttleReference
32-speed power shuttleReference
TransmissionSynchro CommandReference
Typemechanical shuttleReference
Gears16 forward and reverseReference
Typepower shuttleReference
TransmissionDual CommandReference
Gears32 forward and 16 reverseReference
PTO & Hydraulics
PTO (claimed)61.1 kWReference
Typeopen centerReference
Pressure190.0 barReference
Valves2 to 3Reference
Pump flow48.4 lpmReference
Pump flow65.1 lpmReference
Steering flow27.3 lpmReference
Steering flow34.8 lpmReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase216 cmReference
Wheelbase243 cmReference
Weight6266 to 6614 poundsReference
Width148 cmReference
2842 kgReference
2930 kgReference
2912 kgReference
3000 kgReference
Steering wheel129 cmReference
Electrical
Charging systemalternatorReference
Charging amps120Reference
Battery CCA800Reference
Battery volts12Reference
New Holland T4050F Height
ROPS227 cmReference
Cab217 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
