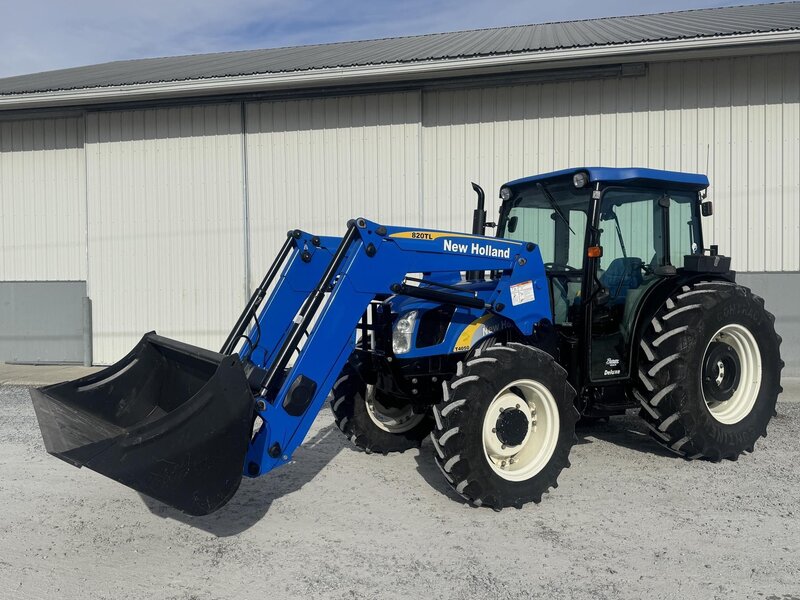

New Holland T4050V
New Holland T4050V · 95 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
95 hp
Weight
5307 to 6151(4WD pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Built in Jesi, ItalyReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Platform with ROPS. Cab optional with heat and air-conditioning.Reference
Variants
T4050standard chassisReference
T4050Fnarrow chassisReference
T4050Vultra-narrow chassisReference
TK4050crawlerReference
TK4050Mmountain crawler (wide)Reference
Engine
New Holland 4.5L 4-cyl dieselReference
Fuel tank73.1 LReference
Engine (gross)70.8 kWReference
New Holland NEFReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Power (gross)70.8 kWReference
Air cleanerdual dry elementReference
Rated RPM2300Reference
Torque397.3 NmReference
Torque RPM1300Reference
Starter volts12Reference
Transmission
16-speed mechanical shuttleReference
16-speed power shuttleReference
TransmissionSynchro CommandReference
Typemechanical shuttleReference
Gears16 forward and reverseReference
Typepower shuttleReference
PTO & Hydraulics
PTO (claimed)61.1 kWReference
Typeopen centerReference
Pressure190.0 barReference
Valves2 to 3Reference
Pump flow65.1 lpmReference
Steering flow34.8 lpmReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase208 cmReference
Wheelbase209 cmReference
Weight5307 to 6151(4WD poundsReference
Width107 cmReference
2407 kgReference
2531 kgReference
2666 kgReference
2790 kgReference
Steering wheel129 cmReference
Electrical
Charging systemalternatorReference
Charging amps120Reference
Battery CCA800Reference
Battery volts12Reference
New Holland T4050V Height
ROPS225 cmReference
Cab214 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
