Tractor · 2012Unverified

New Holland T4.100

Name: New Holland T4.100
Brand: New Holland

New Holland T4.100 — T4 PowerStar Series · 94 hp. Reference specifications; pending source verification.

The New Holland T4.100 is a tractor with a rated power of 94 hp, falling within the mid-range of its class. Available from 2012 to 2014, it features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission. This model is suitable for operations on land of 200–800 acres in size.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

94 hp

Catalogue coverage

Variants represented

Richest spec table

58 rows

Recorded power

94 hp

Transmissions

8-speed partially synchronized mechanical shuttle

Production years

2012-2014

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Utility tractorReference

Two- or four-wheel driveReference

Differential lockmechanical differential lockReference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Two-post foldable ROPS. Optional cab with air-conditioning.Reference

Engine

FPT 3.2L 4-cyl dieselReference

Fuel tank90.1 LReference

Engine (gross)70.1 kWReference

FPTReference

turbocharged intercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.2 LReference

Bore/Stroke99 x 104 mmReference

EmissionsTier 3Reference

Power (gross)70.1 kWReference

Air cleanerdryReference

Pre-heatinggrid heaterReference

Rated RPM2300Reference

StarterelectricReference

Starter volts12Reference

Transmission

8-speed partially synchronized mechanical shuttleReference

12-speed mechanical shuttleReference

12-speed power shuttleReference

Typepartially synchronized mechanical shuttleReference

Gears8 forward and reverseReference

Four gears in two ranges. Gear shifts and shuttle are synchronized with the clutch. Tractor must be stopped to shift ranges.Reference

Typemechanical shuttleReference

Gears12 forward and reverseReference

Four gears in three ranges. Optional creeper provdes an additional eight speeds.Reference

Typepower shuttleReference

PTO & Hydraulics

PTO (claimed)63.4 kWReference

Typeopen centerReference

Rear valves1 or 2Reference

Mid valves0 or 2Reference

Pump flow47.3 lpmReference

Total flow74.9 lpmReference

Steering flow27.6 lpmReference

Rear Type2Reference

Controlmechanical upper-link draft sensingReference

Rear lift (at 24"/610mm)2100 kgReference

Rear PTOindependentReference

Clutchmechanical dry disc, wet disc with power shuttleReference

Rear PTO Type540 (1.375)Reference

Rear PTO Type540/540EReference

New Holland T4.100 attachments

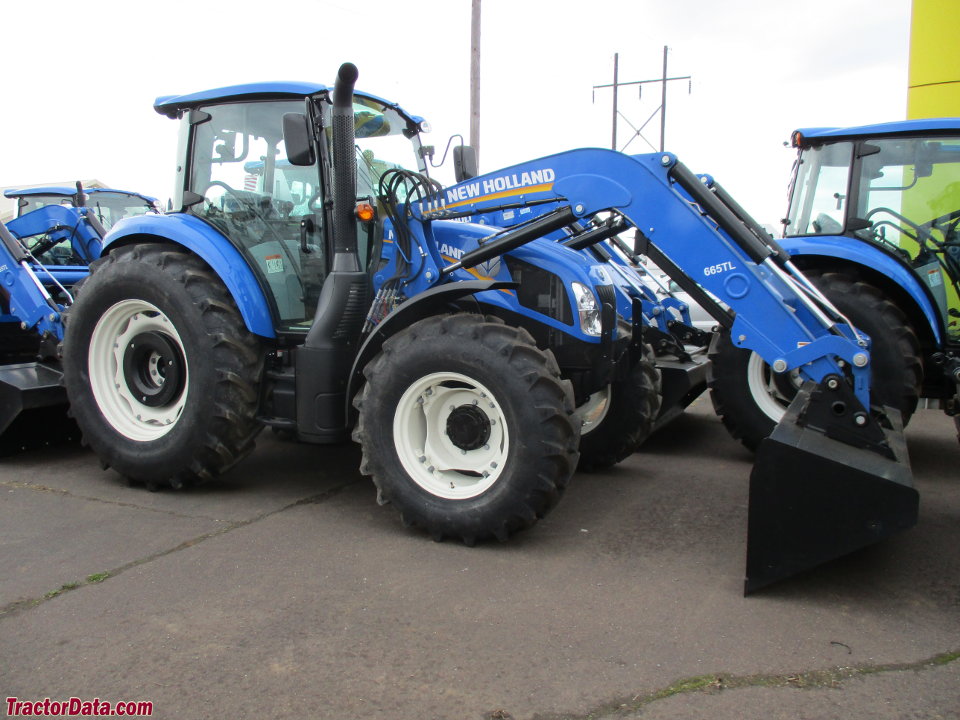

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Battery CCA730 (ROPS)Reference

Battery CCA800 (cab)Reference

Battery volts12Reference

Dimensions

Flange rear axleReference

2WD Front tread152 to 202 cmReference

4WD Front tread154 to 194 cmReference

Rear tread132 to 193 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
