Tractor · 2015Unverified

New Holland T4.110

Name: New Holland T4.110
Brand: New Holland

New Holland T4.110 — T4 Series · 107 hp. Reference specifications; pending source verification.

The New Holland T4.110 is a tractor model with a rated power of 107 hp, classified as a mid-range figure for its class. It was manufactured between 2015 and 2017. The tractor features a 4-cylinder turbocharged diesel liquid-cooled engine and four-wheel drive with a powershift transmission. Its operating weight falls within the range of 6989 to 8157 pounds, suitable for operations spanning 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

107 hp

Max power

71.6 kW

Weight

6989 to 8157 pounds

Catalogue coverage

Variants represented

Richest spec table

87 rows

Recorded power

107 hp

Transmissions

12-speed mechanical shuttle

Production years

2015-2017

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Utility tractorReference

Two- or four-wheel driveReference

Final drivesinboard planetaryReference

Power steeringReference

Wet disc brakesReference

VisionView Cab standard. Two-post ROPS available.Reference

Engine

FPT 3.4L 4-cyl dieselReference

Fuel tank114.7 LReference

Exhaust fluid (DEF)10.6 LReference

Engine (gross)79.8 kWReference

Drawbar (tested)54.7 kWReference

FPT F5GReference

aftercooled turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.4 LReference

Bore/Stroke99 x 110 mmReference

EmissionsTier IVReference

Emission controlselectice catalytic reduction with diesel exhaust fluid (DEF) (SCR)Reference

Power (gross)79.8 kWReference

Fuel systemelectronic high-pressure common rail direct injectionReference

Rated RPM2300Reference

StarterelectricReference

Starter volts12Reference

Max power71.6 kWReference

Power at rated engine speed65.3 kWReference

Max power54.7 kWReference

Transmission

12-speed mechanical shuttleReference

12-speed power shuttleReference

24-speed two-speed power shiftReference

Typemechanical shuttleReference

Gears12 forward and reverseReference

Four synchronized gears in three non-synchronized ranges with mechanical shuttle.Reference

Typepower shuttleReference

Four synchronized gears in three non-synchronized ranges with power shuttle.Reference

TransmissionDual CommandReference

Typetwo-speed power shiftReference

Gears24 forward and reverseReference

Four synchronized gears in three non-synchronized ranges with two-speed power shift and power shuttle.Reference

PTO & Hydraulics

PTO (claimed)69.4 kWReference

PTO (tested)71.6 kWReference

Typeopen centerReference

Valves2 or 3Reference

Pump flow64.0 lpmReference

Rear TypeIIReference

Controltop-link draft sensingReference

Rear lift (at ends)3334 kgReference

Rear lift (at 24"/610mm)1968 kgReference

Rear Armstelescopic link endsReference

DrawbarCat. 2Reference

Rear PTOindependentReference

Rear PTO Type540Reference

Rear PTO Type540EReference

Rear PTO Type1000Reference

Power at rated PTO speed71.5 kWReference

Dimensions

2WD Wheelbase234 cmReference

4WD Wheelbase228 cmReference

Weight6989 to 8157 poundsReference

Front tire7.50-16Reference

2WD Rear tire16.9R30Reference

2WD Standard tires (ag)Front: 7.50-16. Rear: 16.9R30Reference

4WD Standard tires (ag)Front: 11.2R24. Rear: 16.9R30Reference

2WD Length414 cmReference

4WD Length406 cmReference

Width192 cmReference

Height (ROPS)270 cmReference

Height (cab)259 cmReference

Flange rear axleReference

2WD ROPS3170 kgReference

4WD ROPS3480 kgReference

2WD Cab3390 kgReference

4WD Cab3700 kgReference

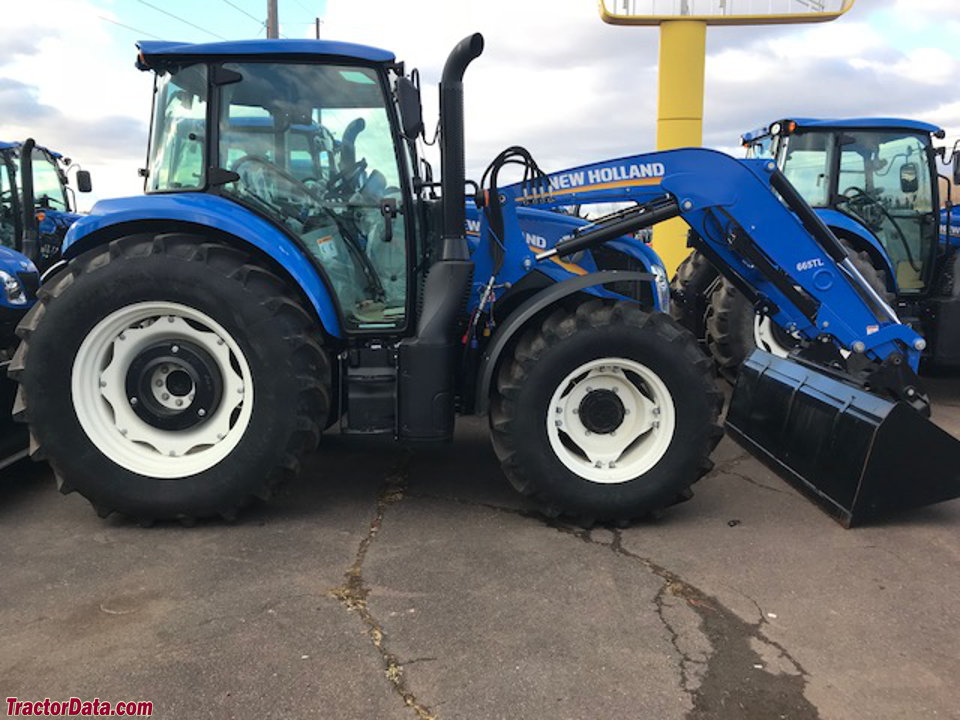

New Holland T4.110 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Attachment overview

New Holland 655TL loaderReference

New Holland 655TL MSL loaderReference

Capacities

Max capacity4280 kgReference

Test results

Diesel 12-speed 4WD4/2016Link: OCED Tractor Test 3007 fileReference

PTO performanceReference

Fuel use20.4 l/hourReference

Fuel use22.0 l/hourReference

Drawbar performanceReference

Fuel use19.3 l/hourReference

Gear 4M used for power test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
