Tractor · 2013Unverified

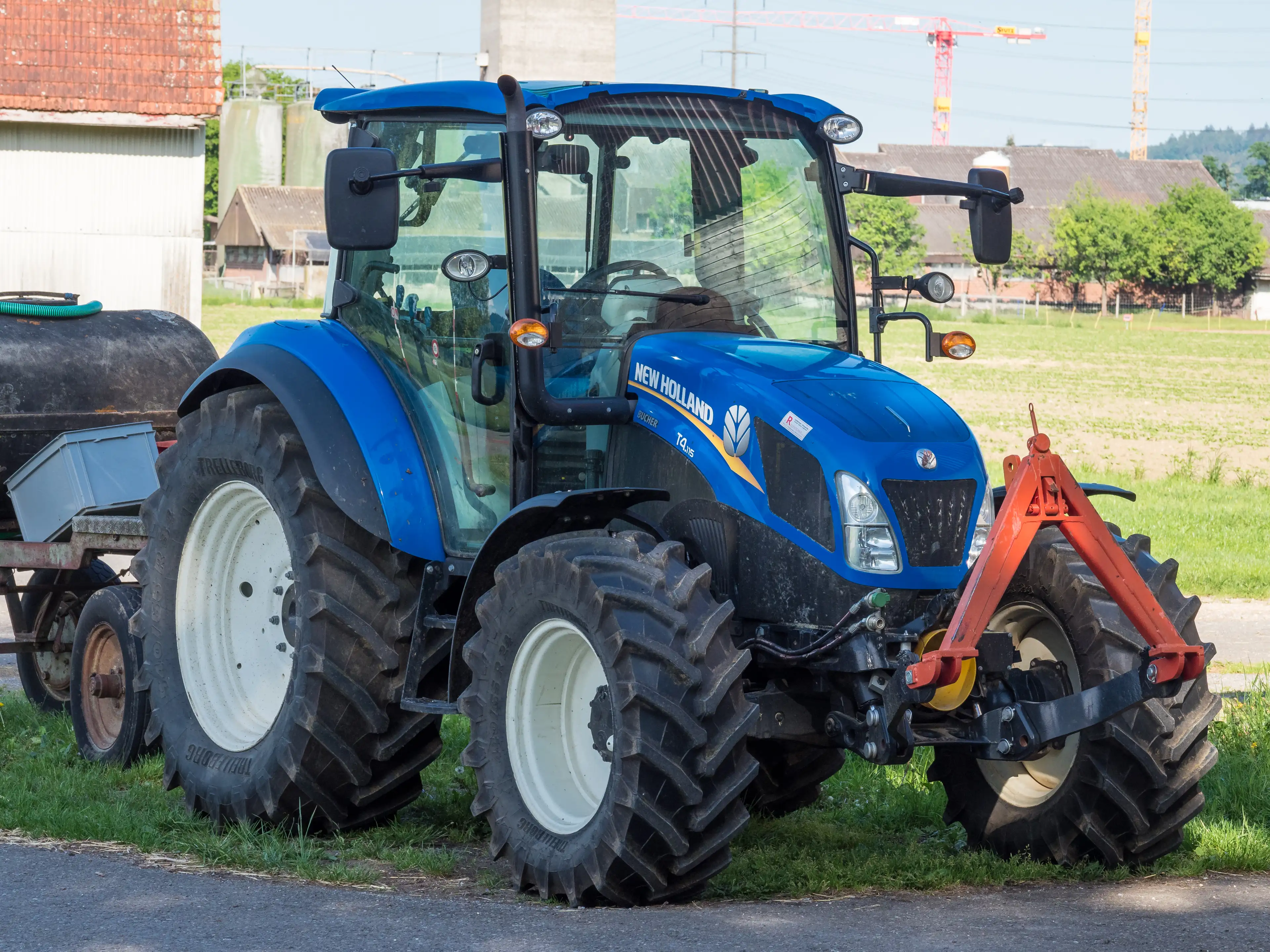

New Holland T4.115

New Holland T4.115 — T4 Series · 114 hp. Reference specifications; pending source verification.

The New Holland T4.115 is a tractor with an approximate power output of 114 hp, which falls within the mid-range of its class. Production of the model took place between 2013 and 2014. The tractor is equipped with a 4-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a 12-speed gearbox. It has an operating weight of 6768 to 7936 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
114 hp
Max power
77.2 kW
Weight
6768 to 7936 pounds

Catalogue coverage

Variants represented
2
Richest spec table
67 rows
Recorded power
114 hp
Transmissions
12-speed power shuttle
Production years
2013-2014
Verified variants
0

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference
Utility tractorReference
Two-post ROPS with available FOPS canopy. Optional VisionView Cab with air-conditioning.Reference

Engine

FPT 3.4L 4-cyl dieselReference
Engine (gross)85.0 kWReference
Drawbar (tested)47.8 kWReference
FPT F5DReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.4 LReference
Bore/Stroke99 x 110 mmReference
EmissionsTier 4AReference
Emission controlCooled Exhaust Gas Recirculation and a Diesel Particulate Filter (DPF) (CEGR)Reference
Power (gross)85.0 kWReference
Fuel systemcommon rail fuel injectionReference
StarterelectricReference
Starter volts12Reference
Max power77.2 kWReference
Power at rated engine speed73.9 kWReference
Max power47.8 kWReference

Transmission

12-speed power shuttleReference
20-speed power shuttle with creeperReference
Typepower shuttleReference
Gears12 forward and reverseReference
Four synchronized gears in three ranges with left-hand power shuttle.Reference
Typepower shuttle with creeperReference
Gears20 forward and 12 reverseReference

PTO & Hydraulics

PTO (claimed)73.1 kWReference
PTO (tested)77.2 kWReference
Typeopen centerReference
Rear valves1 to 3Reference
Pump flow47.3 lpmReference
Pump flow64.0 lpmReference
Steering flow27.6 lpmReference
Steering flow36.7 lpmReference
Rear TypeIIReference
Rear lift (at 24"/610mm)2549 kgReference
Rear lift (at 24"/610mm)3334 kgReference
Rear PTO Type540/1000Reference
Rear PTO Type540Reference
Power at rated PTO speed75.1 kWReference

Dimensions

2WD Wheelbase229 cmReference
4WD Wheelbase223 cmReference
Weight6768 to 7936 poundsReference
4WD Length401 cmReference
2WD Length408 cmReference
Width192 cmReference
Height (ROPS)270 cmReference
Height (cab)259 cmReference
2WD ROPS3069 kgReference
4WD ROPS3379 kgReference
2WD Cab3289 kgReference
4WD Cab3599 kgReference

New Holland T4.115 attachments

front-end loaderReference

Electrical

GroundnegativeReference
Battery volts12Reference

Attachment overview

New Holland 655TL loaderReference
New Holland 665TL loaderReference

Test results

Diesel 12-speed 4WDMarch 2014 - April 2014, Link: OCED Tractor Test 2838 fileReference
PTO performanceReference
Fuel use22.3 l/hourReference
Fuel use23.5 l/hourReference
Fuel use23.1 l/hourReference
Drawbar performanceReference
Fuel use20.4 l/hourReference
Gear 3M used for power test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
