Tractor · 2012Unverified

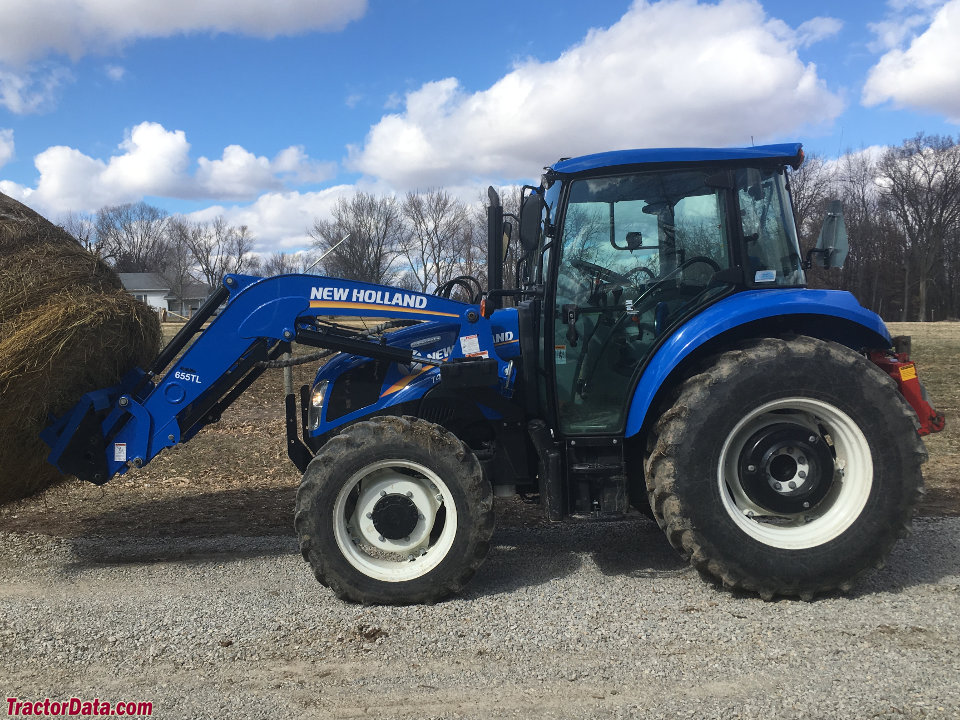

New Holland T4.65

Name: New Holland T4.65
Brand: New Holland

New Holland T4.65 — PowerStar T4 Series · 65 hp. Reference specifications; pending source verification.

The New Holland T4.65 is a tractor with an output of approximately 65 horsepower. It was manufactured from 2012 to 2014. The tractor features a 4-cylinder turbocharged diesel liquid-cooled engine, coupled with four-wheel drive and a hydrostatic transmission. Its operating weight ranges from 4960 to 6173 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

65 hp

Weight

4960 to 6173 pounds

Catalogue coverage

Variants represented

Richest spec table

74 rows

Recorded power

65 hp

Transmissions

12-speed

Production years

2012-2014

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Utility tractorReference

Two- or four-wheel driveReference

Differential locklimited slip 4WD front axleReference

Steeringhydrostatic powerReference

Trailer brakeshydraulic optionalReference

Two-post foldable ROPS. Optional PowerStar cab with optional air-conditioning. EZ-Guide 250 and 500 capable.Reference

Engine

FPT 3.2L 4-cyl dieselReference

Fuel tank90.1 LReference

Engine (gross)48.5 kWReference

FPT F5CReference

turbocharged dieselReference

4-cylinder 8-valveReference

liquid-cooledReference

Displacement3.2 LReference

Bore/Stroke99 x 104 mmReference

EmissionsTier 3Reference

Rated Power (gross)48.5 kWReference

Rated RPM2300Reference

Torque275.0 NmReference

Torque RPM1200Reference

StarterelectricReference

Starter volts12Reference

Oil change500 hReference

Transmission

12-speedReference

20-speedReference

TransmissionSynchro ShuttleReference

Gears12 forward and reverseReference

Four gears in three ranges. Mechanical shuttle shift. Optional creeper adds an additionalReference

TransmissionPower ShuttleReference

Power shuttle transmission adds a hydraulic shuttle shift.Reference

TransmissionSynchro Shuttle creeperReference

Gears20 forward and reverseReference

TransmissionPower Shuttle creeperReference

FourReference

PTO & Hydraulics

Typefixed displacementReference

Rear valves3Reference

Mid valves2Reference

Pump flow47.5 lpmReference

Steering flow27.6 lpmReference

Steering flow36.0 lpmReference

Rear Type2/1Reference

Controlmechanical draft controlReference

Rear lift (at ends)2214 kgReference

Rear lift (at 24"/610mm)1661 kgReference

Rear PTOindependentReference

Rear PTO Type540Reference

Rear PTO Type540EReference

Rear PTO TypegroundReference

Engine RPM540@1958Reference

Engine RPM540E@1592Reference

Dimensions

2WD Wheelbase215 cmReference

4WD Wheelbase210 cmReference

Weight4960 to 6173 poundsReference

Rear tire420/85R30Reference

Ag rear420/85R30Reference

Length379 cmReference

Width194 cmReference

Height (cab)247 cmReference

Ground clearance39 cmReference

Rear tread152 to 192 cmReference

2WD ROPS Shipping2249 kgReference

4WD ROPS Shipping2669 kgReference

2WD cab Shipping2520 kgReference

4WD cab Shipping2800 kgReference

New Holland T4.65 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Charging volts12Reference

Battery volts12Reference

Battery AH100Reference

Capacities

2WD Max capacity4500 kgReference

4WD Max capacity4799 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
