Tractor · 2013Unverified

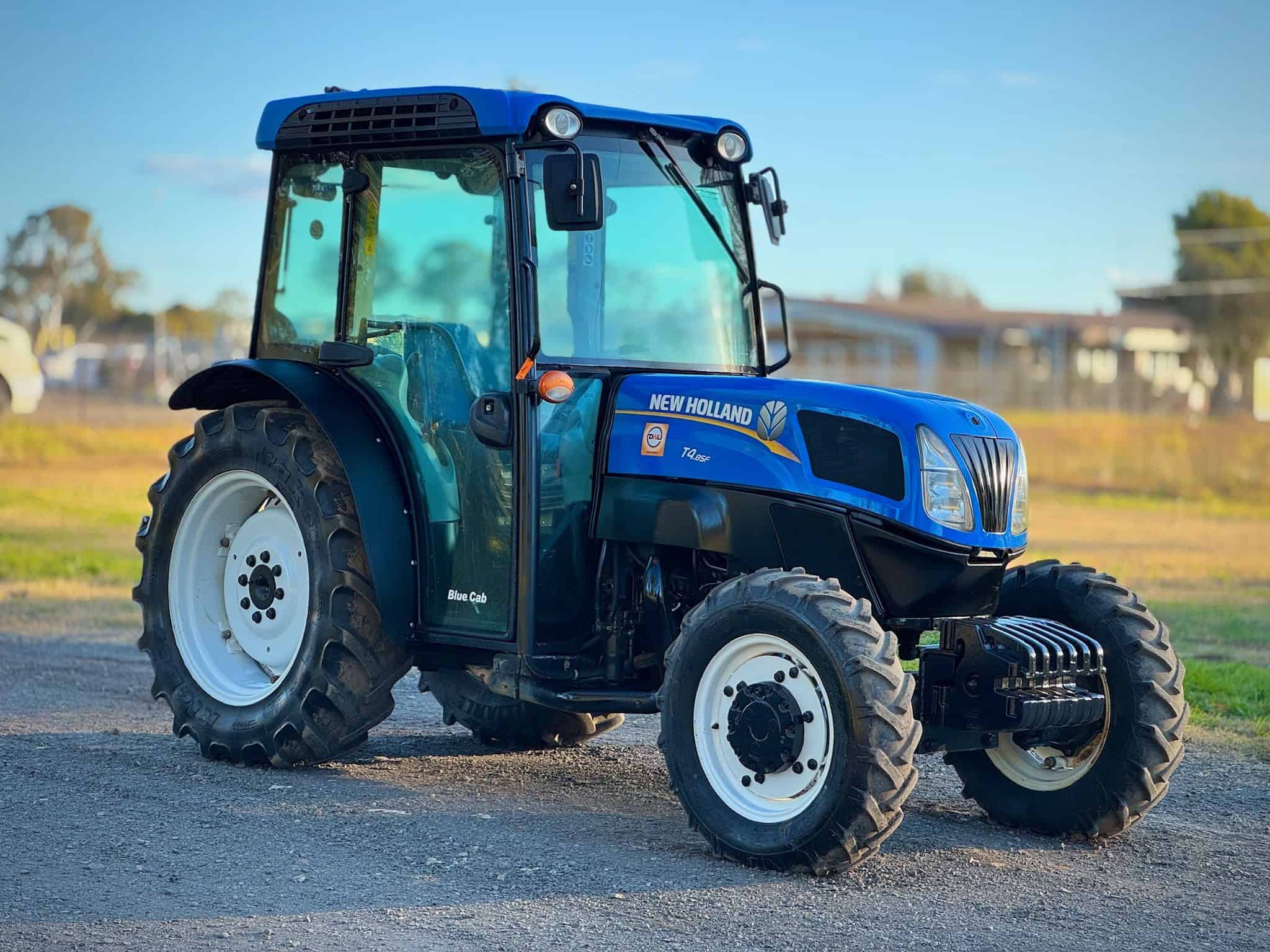

New Holland T4.85
New Holland T4.85 — T4 Series · 84 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
84 hp
Max power
57.1 kW
Weight
6768 to 7936 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Utility tractorReference
Two-post ROPS with available FOPS canopy. Optional VisionView Cab with air-conditioning.Reference
Engine
FPT 3.4L 4-cyl dieselReference
Engine (gross)62.6 kWReference
Drawbar (tested)43.6 kWReference
FPT F5DReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.4 LReference
Bore/Stroke99 x 110 mmReference
EmissionsTier 4AReference
Emission controlCooled Exhaust Gas Recirculation and a Diesel Particulate Filter (DPF) (CEGR)Reference
Power (gross)62.6 kWReference
Fuel systemcommon rail fuel injectionReference
StarterelectricReference
Starter volts12Reference
Max power57.1 kWReference
Power at rated engine speed53.3 kWReference
Max power43.6 kWReference
Transmission
12-speed mechanical shuttleReference
20-speed mechanical shuttle with creeperReference
12-speed power shuttleReference
20-speed power shuttle with creeperReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Four synchronized gears in three ranges with left-hand mechanical shuttle.Reference
Typemechanical shuttle with creeperReference
Gears20 forward and 12 reverseReference
Typepower shuttleReference
Four synchronized gears in three ranges with left-hand power shuttle.Reference
Typepower shuttle with creeperReference
PTO & Hydraulics
PTO (claimed)52.2 kWReference
PTO (tested)57.1 kWReference
Typeopen centerReference
Rear valves1 to 3Reference
Pump flow47.3 lpmReference
Pump flow64.0 lpmReference
Steering flow27.6 lpmReference
Steering flow36.7 lpmReference
Rear TypeIIReference
Rear lift (at 24"/610mm)2549 kgReference
Rear lift (at 24"/610mm)3334 kgReference
Rear PTO Type540/1000Reference
Rear PTO Type540Reference
Power at rated PTO speed53.5 kWReference
Dimensions
2WD Wheelbase229 cmReference
4WD Wheelbase223 cmReference
Weight6768 to 7936 poundsReference
4WD Length401 cmReference
2WD Length408 cmReference
Width192 cmReference
Height (ROPS)270 cmReference
Height (cab)259 cmReference
2WD ROPS3069 kgReference
4WD ROPS3379 kgReference
2WD Cab3289 kgReference
4WD Cab3599 kgReference
New Holland T4.85 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
New Holland 655TL loaderReference
New Holland 665TL loaderReference
Test results
Diesel 12-speed 4WD1/2014Link: OCED Tractor Test 2828 fileReference
PTO performanceReference
Fuel use16.7 l/hourReference
Fuel use17.4 l/hourReference
Drawbar performanceReference
Fuel use16.3 l/hourReference
Gear 3M used for power test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
