Tractor · 2013Unverified

New Holland T4.95

Name: New Holland T4.95
Brand: New Holland

New Holland T4.95 — T4 Series · 98 hp. Reference specifications; pending source verification.

The New Holland T4.95 is a tractor with a rated power of 98 hp, a mid-range figure for its class. It was produced between 2013 and 2014. The tractor is equipped with a 4-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a 12-speed gearbox. Its operating weight is listed as 6768 to 7936 pounds, making it suitable for operations of up to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

98 hp

Max power

44.4 kW

Weight

6768 to 7936 pounds

Catalogue coverage

Variants represented

Richest spec table

70 rows

Recorded power

98 hp

Transmissions

12-speed mechanical shuttle

Production years

2013-2014

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Utility tractorReference

Two-post ROPS with available FOPS canopy. Optional VisionView Cab with air-conditioning.Reference

Engine

FPT 3.4L 4-cyl dieselReference

Engine (gross)73.1 kWReference

Drawbar (tested)44.4 kWReference

FPT F5DReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.4 LReference

Bore/Stroke99 x 110 mmReference

EmissionsTier 4AReference

Emission controlCooled Exhaust Gas Recirculation and a Diesel Particulate Filter (DPF) (CEGR)Reference

Power (gross)73.1 kWReference

Fuel systemcommon rail fuel injectionReference

StarterelectricReference

Starter volts12Reference

Power at rated engine speed61.7 kWReference

Max power44.4 kWReference

Transmission

12-speed mechanical shuttleReference

20-speed mechanical shuttle with creeperReference

12-speed power shuttleReference

20-speed power shuttle with creeperReference

Typemechanical shuttleReference

Gears12 forward and reverseReference

Four synchronized gears in three ranges with left-hand mechanical shuttle.Reference

Typemechanical shuttle with creeperReference

Gears20 forward and 12 reverseReference

Typepower shuttleReference

Four synchronized gears in three ranges with left-hand power shuttle.Reference

Typepower shuttle with creeperReference

PTO & Hydraulics

PTO (claimed)61.1 kWReference

PTO (tested)61.7 kWReference

Typeopen centerReference

Rear valves1 to 3Reference

Pump flow47.3 lpmReference

Pump flow64.0 lpmReference

Steering flow27.6 lpmReference

Steering flow36.7 lpmReference

Rear TypeIIReference

Rear lift (at 24"/610mm)2549 kgReference

Rear lift (at 24"/610mm)3334 kgReference

Rear PTO Type540/1000Reference

Rear PTO Type540Reference

Power at rated PTO speed67.2 kWReference

Dimensions

2WD Wheelbase229 cmReference

4WD Wheelbase223 cmReference

Weight6768 to 7936 poundsReference

4WD Length401 cmReference

2WD Length408 cmReference

Width192 cmReference

Height (ROPS)270 cmReference

Height (cab)259 cmReference

2WD ROPS3069 kgReference

4WD ROPS3379 kgReference

2WD Cab3289 kgReference

4WD Cab3599 kgReference

New Holland T4.95 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

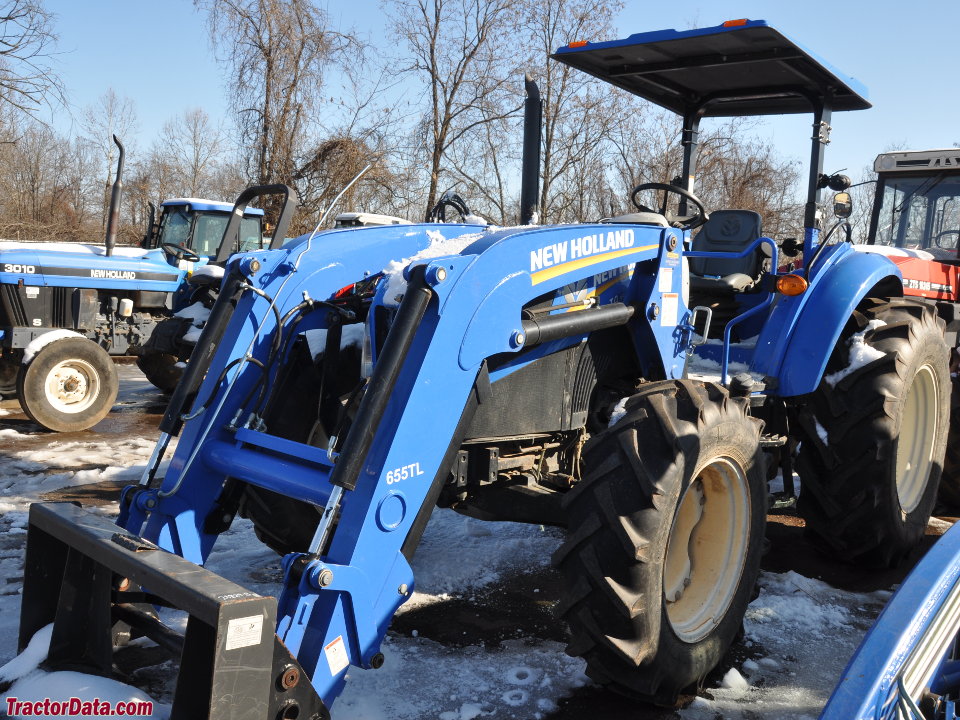

New Holland 655TL loaderReference

New Holland 665TL loaderReference

Test results

Diesel 12-speed 4WDAugust 2013 - December 2013, Link: OCED Tractor Test 2810 fileReference

PTO performanceReference

Fuel use20.4 l/hourReference

Fuel use19.7 l/hourReference

Drawbar performanceReference

Fuel use18.9 l/hourReference

Gear 3M used for power test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
