Tractor · 2008Unverified

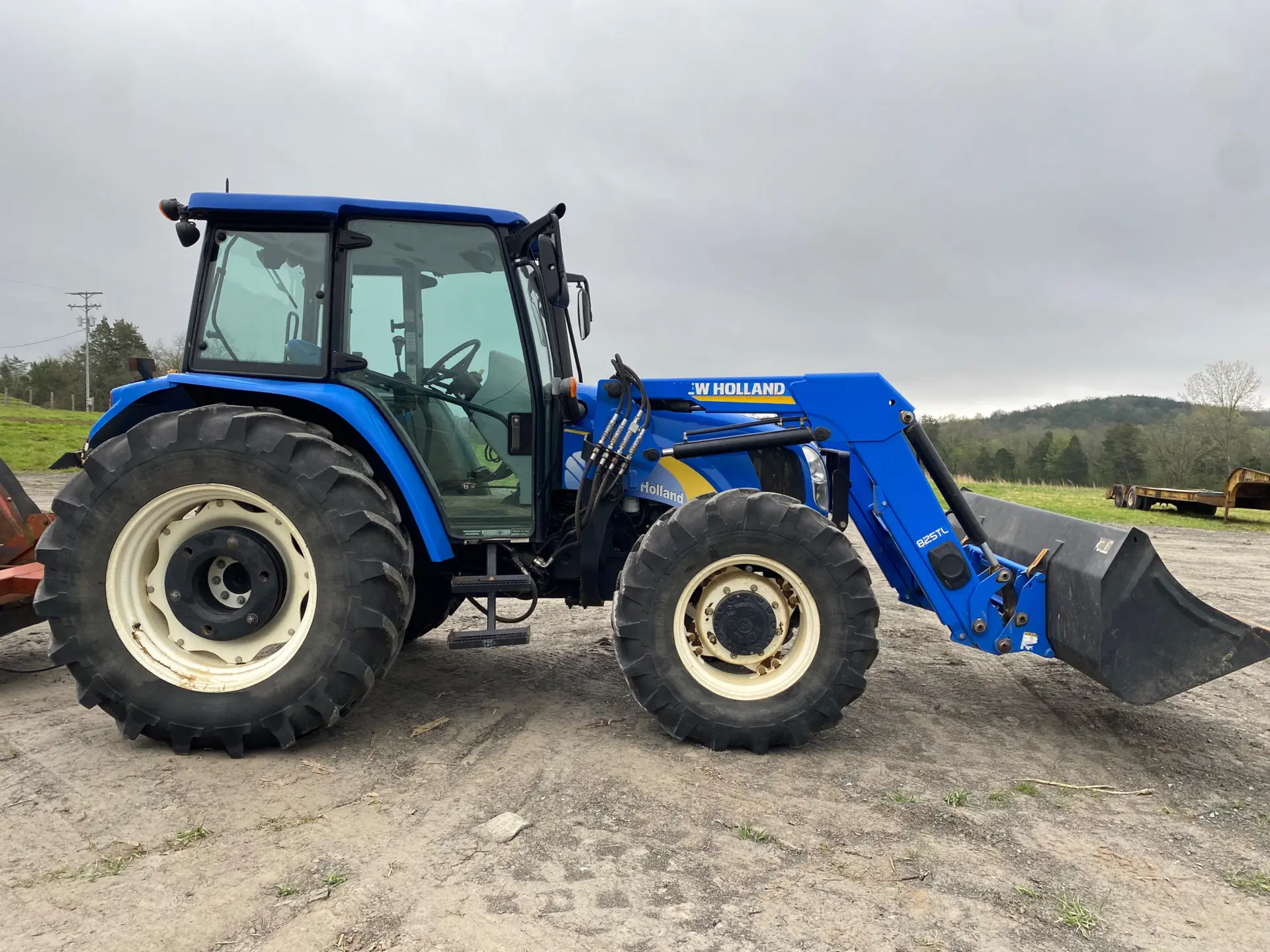

New Holland T5060

New Holland T5060 — T5000 Series · 105 hp. Reference specifications; pending source verification.

The New Holland T5060 is a tractor model with a power rating of 105 hp, placing it within the middle range of its class. Manufactured from 2008 to 2013, this tractor features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, which powers four-wheel drive through a 12-speed gearbox. It is suited for operations involving areas of approximately 200 to 800 acres. Detailed specifications for the New Holland T5060 are provided in both metric and imperial units.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
105 hp
Max power
70.4 kW

Catalogue coverage

Variants represented
2
Richest spec table
120 rows
Recorded power
105 hp
Transmissions
12-speed mechanical shuttle
Production years
2008-2013
Verified variants
0

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference
Utility tractorReference
Built in Jesi, ItalyReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Differential lockelectrohydraulic front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Flat deck platform with ROPS. Cab optional with heat and air-conditioning.Reference

Engine

New Holland 4.5L 4-cyl dieselReference
Fuel tank126.8 LReference
Engine (gross)78.3 kWReference
Drawbar (tested)57.1 kWReference
New HollandReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
EmissionsTier IIIReference
Power (gross)78.3 kWReference
Air cleanerdual dry elementReference
Pre-heatinggrid heaterReference
Rated RPM2300Reference
Starter volts12Reference
Max power70.4 kWReference
Power at rated engine speed69.5 kWReference
Max power57.1 kWReference
Fuel TypedieselReference
No of Cylinders4 cylinderReference
Rated engine speed2,300 RPMReference
Emissions complianceTier IIIReference
Cooling systemliquid-cooledReference

Transmission

12-speed mechanical shuttleReference
12-speed power shuttleReference
20-speed mechanical shuttleReference
24-speed power shuttleReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Typepower shuttleReference
Gears20 forward and 12 reverseReference
TransmissionDual CommandReference
Gears24 forward and reverseReference
Transmission TypePower ShuttleReference
Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)67.1 kWReference
PTO (tested)70.4 kWReference
Typeopen centerReference
Pressure198.0 barReference
Rear valves2 to 3 (open or closed center)Reference
Mid valves0 to 2Reference
Pump flow60.9 lpmReference
Steering flow39.4 lpmReference
Rear TypeIIReference
Controlmechanical lower-link draft sensingReference
Rear lift (at 24"/610mm)2483 kgReference
Rear lift (at 24"/610mm)3086 kgReference
Rear PTOindependentReference
ClutchmechanicalReference
ClutchelectrohydraulicReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2199Reference
Engine RPM1000@2261Reference
Power at rated PTO speed69.9 kWReference

Dimensions

Wheelbase234 cmReference
2WD Length234 cmReference
4WD Length234 cmReference
Height (ROPS)276 cmReference
Height (cab)256 cmReference
Flange rear axle1770 mmReference
Front tread149 to 209 cmReference
Front tread175 to 215 cmReference
2WD Max front axle3499 kgReference
4WD Max front axle4499 kgReference
Max rear axle4599 kgReference

New Holland T5060 attachments

front-end loaderReference

T5060 Serial Numbers

2008Z8JH00040Reference
2009Z8JH15125Reference
2010Z9JH15954Reference
2011ZAJH17531Reference
2012ZAJH18230Reference
FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Battery CCA960Reference
Battery volts12Reference
Total cold cranking amps960 CCAReference

Attachment overview

New Holland 820 loaderReference
New Holland 830 loaderReference

Test results

Diesel 12-speed 2WDDecember 2008 - February 2009, Link: OCED Tractor Test 2511 fileReference
PTO performanceReference
Fuel use22.0 l/hourReference
Fuel use22.3 l/hourReference
Drawbar performanceReference
Gear 3II used for power test.Reference
Max pull2932 kgReference
Gear 2I used for pull test.Reference

General

Make & ModelNew HollandReference
SCV controljoystickReference
Rear Axle TypeFlange: 69.7 inch lengthReference
Country of manufacturerItalyReference

Capacities

Capacity274 ciReference

PTO

PTO Power90 hpReference
Rear PTO PowerAvailableReference
Rear PTO RPM1,000 RPMReference
Engine Speed on Rear PTO speed540@2,199 | 1,000@2,261 RPMReference

Steering & brakes

Brakeshydraulic wet discReference
Steering typehydrostatic powerReference

Hydraulics

Hydraulics Typeopen centerReference
Maximum operating pressure2,871 psiReference
Remote Valves2 to 3 ValvesReference
Steering & Implements flow10.4 gpm (16.1 gpm)Reference
Rear Hitch category (SAE designation)Category IIReference
Rear Hitch Sensing Typemechanical lower-link draft sensingReference

Dimensions & weight

Height Over Cab256 cmReference
Height Over ROPS276.6 cmReference
Overall Length235 cmReference

Wheels & tyres

Front Wheel tread range58.8 to 82.4 inchesReference

Operator station

Cab AvailabilityAvailableReference
Seat SuspensionavailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
