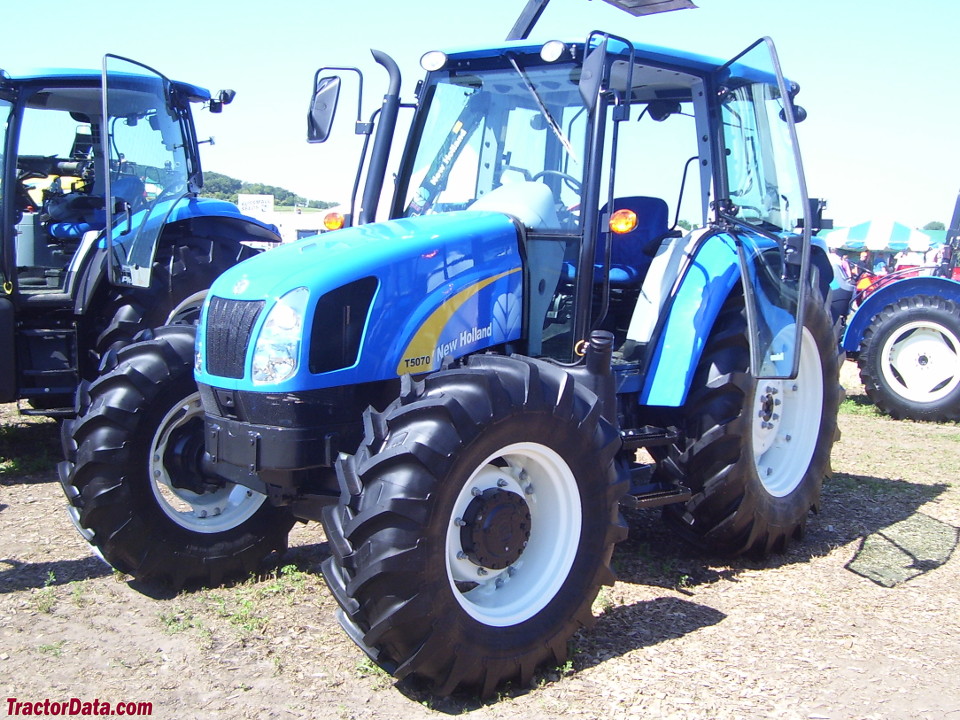

New Holland T5070
New Holland T5070 — T5000 Series · 115 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
115 hp
Max power
76.8 kW
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Utility tractorReference
Built in Jesi, ItalyReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Differential lockelectrohydraulic front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Flat deck platform with ROPS. Cab optional with heat and air-conditioning.Reference
Engine
New Holland 4.5L 4-cyl dieselReference
Fuel tank126.8 LReference
Engine (gross)85.8 kWReference
Drawbar (tested)58.0 kWReference
New HollandReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
EmissionsTier IIIReference
Power (gross)85.8 kWReference
Air cleanerdual dry elementReference
Pre-heatinggrid heaterReference
Rated RPM2300Reference
Starter volts12Reference
Max power76.8 kWReference
Power at rated engine speed73.5 kWReference
Max power58.0 kWReference
Transmission
12-speed power shuttleReference
24-speed power shuttleReference
Typepower shuttleReference
Gears12 forward and reverseReference
TransmissionDual CommandReference
Gears24 forward and reverseReference
PTO & Hydraulics
PTO (claimed)71.6 kWReference
PTO (tested)76.8 kWReference
Typeopen centerReference
Pressure198.0 barReference
Rear valves2 to 3 (open or closed center)Reference
Mid valves0 to 2Reference
Pump flow60.9 lpmReference
Steering flow39.4 lpmReference
Rear TypeIIReference
Controlmechanical lower-link draft sensingReference
Rear lift (at 24"/610mm)2483 kgReference
Rear lift (at 24"/610mm)3086 kgReference
Rear PTOindependentReference
ClutchmechanicalReference
ClutchelectrohydraulicReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2199Reference
Engine RPM1000@2261Reference
Power at rated PTO speed74.2 kWReference
Dimensions
Wheelbase234 cmReference
2WD Length234 cmReference
4WD Length234 cmReference
Height (ROPS)276 cmReference
Height (cab)256 cmReference
Flange rear axle1770 mmReference
2WD Front tread149 to 209 cmReference
4WD Front tread175 to 215 cmReference
Rear tread143 to 229 cmReference
2WD Max front axle3499 kgReference
4WD Max front axle4499 kgReference
Max rear axle4599 kgReference
New Holland T5070 attachments
front-end loaderReference
T5070 Serial Numbers
2008Z8JH00040Reference
2009Z8JH15125Reference
2010Z9JH15954Reference
2011ZAJH17531Reference
2012ZAJH18230Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Battery CCA960Reference
Battery volts12Reference
Attachment overview
New Holland 820 loaderReference
New Holland 830 loaderReference
Test results
Diesel 12-speed 2WDDecember 2008 - July 209, Link: OCED Tractor Test 2519 fileReference
PTO performanceReference
Fuel use22.7 l/hourReference
Fuel use24.2 l/hourReference
Fuel use23.8 l/hourReference
Drawbar performanceReference
Fuel use23.5 l/hourReference
Gear 3II used for power test.Reference
Max pull2884 kgReference
Gear 4I used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
