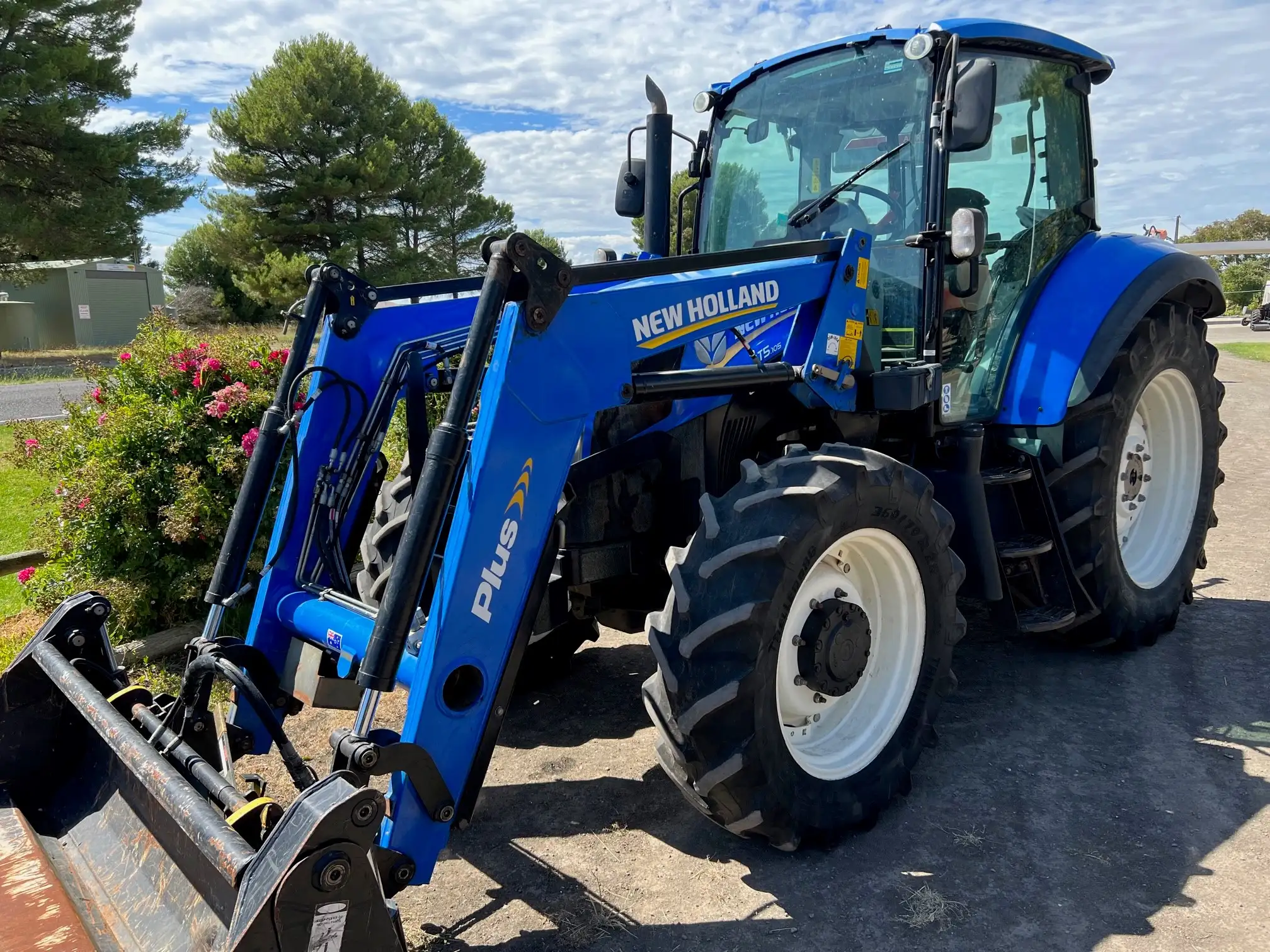

New Holland T5.105
New Holland T5.105 — T5 Series · 106 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
106 hp
Max power
74.0 kW
Weight
4250 kg
Hover a source tag to verify
Overview
ManufacturerNew Holland (a part of CNH)Reference
Utility tractorReference
Four-wheel driveReference
Differential lockElectro-hydraulic rear. Limited slip front.Reference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Variants
T5.105base modelReference
T5.115 Electro Commandpremium modelReference
Farmall 105Usimilar CaseIH modelReference
Engine
FPT 3.4L 4-cyl dieselReference
Fuel tank140.0 LReference
Engine (gross)79.0 kWReference
Drawbar (tested)52.4 kWReference
FPT F5DReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.4 LReference
Bore/Stroke99 x 110 mmReference
EmissionsInterim Tier IVReference
Emission controlcooled exhaust gas recirculation with diesel particulate filter (DPF) (CEGR)Reference
Power (gross)79.0 kWReference
Pre-heatinggrid heaterReference
Rated RPM2300Reference
StarterelectricReference
Starter volts12Reference
Max power74.0 kWReference
Power at rated engine speed72.0 kWReference
Max power52.4 kWReference
Transmission
12-speed power shuttleReference
20-speed creeper power shuttleReference
24-speed two-speed power shiftReference
Typepower shuttleReference
Gears12 forward and reverseReference
Four synchronized gears in three non-synchronized ranges. Power shuttle shift.Reference
TransmissionFour synchronized gears in three non-synchronized ranges with added creeper range. Power shuttle shift.Reference
Typecreeper power shuttleReference
Gears20 forward and reverseReference
TransmissionDual CommandReference
Typetwo-speed power shiftReference
Gears24 forward and reverseReference
PTO & Hydraulics
PTO (claimed)67.9 kWReference
PTO (tested)74.0 kWReference
Typeopen center gear pumpsReference
Valves2 to 3Reference
Pump flow60.9 lpmReference
Pump flow79.9 lpmReference
Steering flow37.9 lpmReference
Steering flow43.1 lpmReference
Rear TypeIIReference
Controlelectronic draft controlReference
Rear lift (at 24"/610mm)2899 kgReference
Rear lift (at 24"/610mm)4741 kgReference
Rear Armsflexible lower link ends with telescopic stabilizersReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000Reference
Front PTO Type1000Reference
Power at rated PTO speed74.0 kWReference
Dimensions
Wheelbase234 cmReference
Weight4250 kgReference
Length416 cmReference
Width209 cmReference
Height (cab)267 cmReference
New Holland T5.105 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Battery CCA960Reference
Battery volts12Reference
Attachment overview
New Holland 825TL loaderReference
New Holland 835TL loaderReference
Test results
Diesel 12-speed 4WDJune 2013 - August 2013, Link: OCED Tractor Test 2805A fileReference
PTO performanceReference
Fuel use22.0 l/hourReference
Fuel use23.1 l/hourReference
Drawbar performanceReference
Fuel use23.5 l/hourReference
Gear 2M used for power test.Reference
Max pull3742 kgReference
Gear 2L used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
