Tractor · 2013Unverified

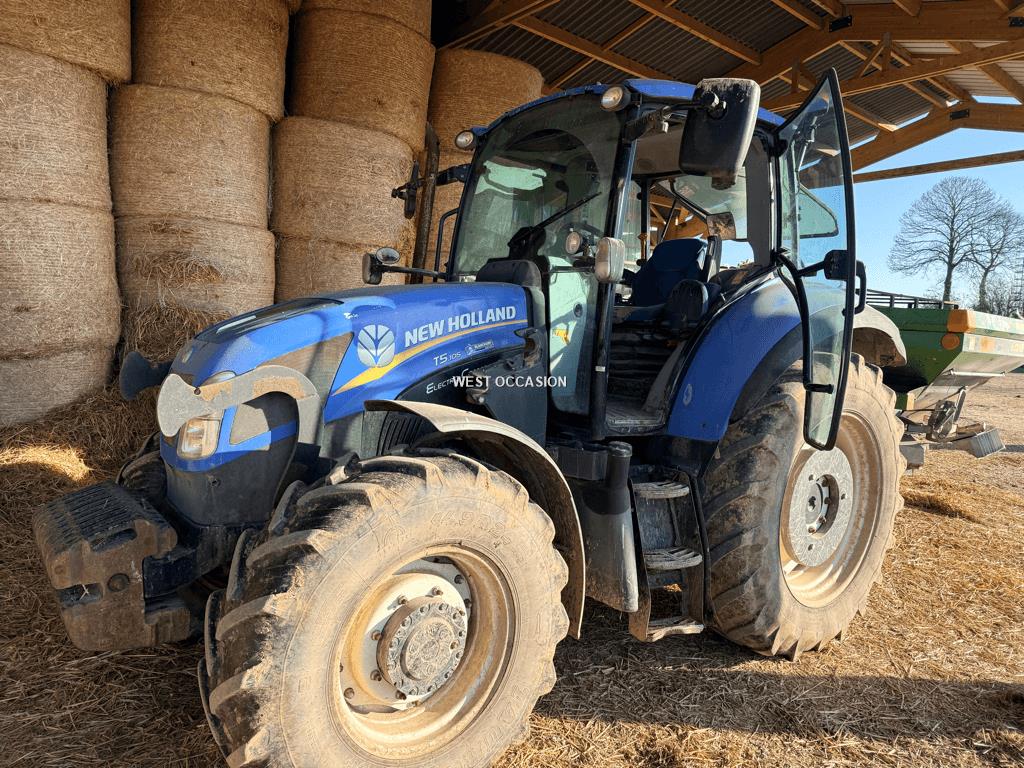

New Holland T5.105 Electro Command
New Holland T5.105 Electro Command — T5 Series · 106 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
106 hp
Weight
4399 kg
Hover a source tag to verify
Overview
ManufacturerNew Holland (a part of CNH)Reference
Utility tractorReference
Four-wheel driveReference
Differential lockElectro-hydraulic rear. Limited slip front.Reference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning. Comfort Ride cab suspension optional.Reference
Variants
T5.105base modelReference
T5.115 Electro Commandpremium modelReference
Engine
FPT 3.4L 4-cyl dieselReference
Fuel tank160.1 LReference
Engine (gross)79.0 kWReference
FPT F5DReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.4 LReference
Bore/Stroke99 x 110 mmReference
EmissionsInterim Tier IVReference
Emission controlcooled exhaust gas recirculation with diesel particulate filter (DPF) (CEGR)Reference
Power (gross)79.0 kWReference
Pre-heatinggrid heaterReference
Rated RPM2300Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed partial power shiftReference
32-speed creeper partial power shiftReference
Typepartial power shiftReference
Gears16 forward and reverseReference
Typecreeper partial power shiftReference
Gears32 forward and reverseReference
PTO & Hydraulics
PTO (claimed)67.9 kWReference
Typeopen center gear pumpsReference
Valves3Reference
Pump flow79.9 lpmReference
Pump flow60.9 lpmReference
Steering flow43.1 lpmReference
Steering flow37.9 lpmReference
Rear TypeIIReference
Controlelectronic draft controlReference
Rear lift (at 24"/610mm)2899 kgReference
Rear lift (at 24"/610mm)3995 kgReference
Rear lift (at 24"/610mm)4741 kgReference
Rear Armsflexible lower link ends with telescopic stabilizersReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000Reference
Front PTO Type1000Reference
Dimensions
Wheelbase234 cmReference
Weight4399 kgReference
Length419 cmReference
Width209 cmReference
Height (cab)268 cmReference
Height (cab)272 cmReference
New Holland T5.105 Electro Command attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Battery CCA800Reference
Battery volts12Reference
Attachment overview
New Holland 825TL loaderReference
New Holland 835TL loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
