Tractor · 2017Unverified

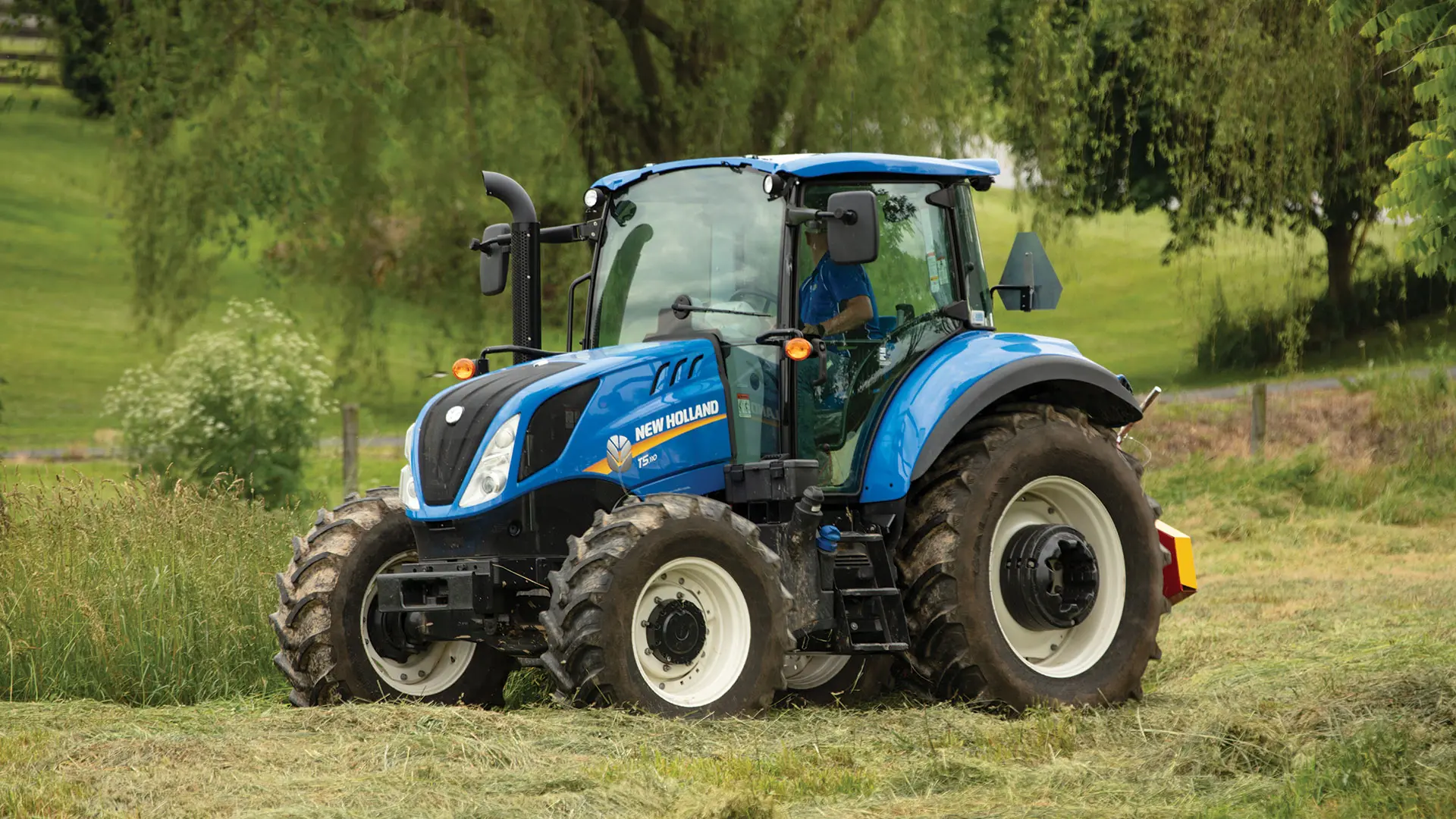

New Holland T5.110 Electro Command

Name: New Holland T5.110 Electro Command
Brand: New Holland

New Holland T5.110 Electro Command — T5 Series · 107 hp. Reference specifications; pending source verification.

The New Holland T5.110 Electro Command is a tractor rated at approximately 107 hp, a mid-range figure for its class. It was produced in 2017. Equipped with a 4-cylinder turbocharged diesel liquid-cooled engine and four-wheel drive, the tractor features a powershift transmission. The T5.110 Electro Command has a listed operating weight of 4550 kg and is suitable for operations involving 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

107 hp

Max power

53.4 kW

Weight

4550 kg

Catalogue coverage

Variants represented

Richest spec table

72 rows

Recorded power

107 hp

Recorded weight

4550 kg

Transmissions

16-speed 8-speed power shift

Production years

2017-2017

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew Holland (a part of CNH)Reference

Utility tractorReference

Original price was $123,629 in 2023Reference

Four-wheel driveReference

Differential lockelectro-hydraulic rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Variants

T5.110 DCsynchronizedReference

T5.110 ECpower shiftReference

Engine

FPT 3.4L 4-cyl dieselReference

Fuel tank165.0 LReference

Exhaust fluid (DEF)12.1 LReference

Engine (gross)79.8 kWReference

Drawbar (tested)53.4 kWReference

FPT F5GReference

turbocharged aftercooled dieselReference

4-cylinder 16-valveReference

liquid-cooledReference

Displacement3.4 LReference

Bore/Stroke99 x 110 mmReference

EmissionsTier IVReference

Power (gross)79.8 kWReference

Rated RPM2200Reference

StarterelectricReference

Starter volts12Reference

Power at rated engine speed72.9 kWReference

Max power53.4 kWReference

Transmission

16-speed 8-speed power shiftReference

TransmissionElectro CommandReference

Type8-speed power shiftReference

Gears16 forward and reverseReference

Clutchhydraulic wet discReference

PTO & Hydraulics

PTO (claimed)69.4 kWReference

PTO (tested)72.9 kWReference

Typeopen centerReference

Rear valves2 or 3Reference

Mid valves2Reference

Pump flow79.9 lpmReference

Steering flow43.1 lpmReference

Rear TypeIIReference

Rear lift (at 24"/610mm)3666 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540/1000Reference

Engine RPM540@1938Reference

Engine RPM1000@1926Reference

Power at rated PTO speed74.1 kWReference

Dimensions

Wheelbase237 cmReference

Weight4550 kgReference

Front tire14.9R24Reference

Rear tire460/85R34Reference

Standard tires (ag)Front: 14.9R24. Rear: 460/85R34Reference

Length419 cmReference

Height (cab)271 cmReference

Shipping4550 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Batteries12Reference

Battery CCA800Reference

Battery volts1Reference

Capacities

Max capacity6200 kgReference

Max capacity8000 kgReference

Test results

Diesel 16-speed 4WDFebruary 2016 - March 2016, Link: OCED Tractor Test 2976 fileReference

PTO performanceReference

Fuel use22.0 l/hourReference

Fuel use21.2 l/hourReference

Drawbar performanceReference

Gear 6L used for power test.Reference

Max pull4116 kgReference

Gear 4L used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
