Tractor · 2019Unverified

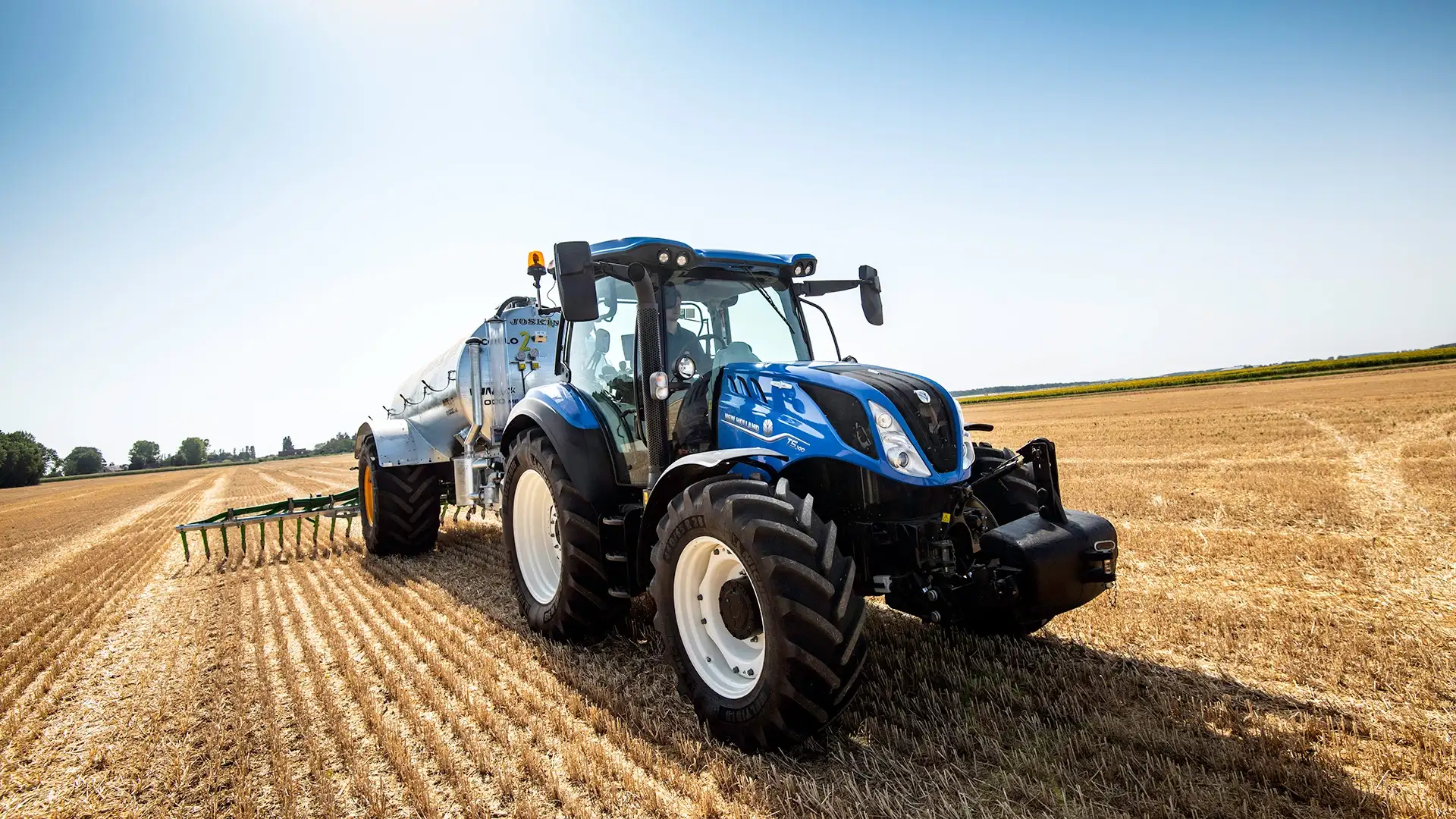

New Holland T5.140 Dynamic/Auto Command
New Holland T5.140 Dynamic/Auto Command — T5 Series · 128 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
128 hp
Weight
5499 kg
Hover a source tag to verify
Overview
ManufacturerNew Holland (a part of CNH)Reference
Utility tractorReference
Four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Variants
Vestrum 130similar CaseIH modelReference
Engine
FPT 4.5L 4-cyl dieselReference
Fuel tank179.8 LReference
Exhaust fluid (DEF)18.9 LReference
Engine (gross)95.6 kWReference
Engine (max)103.0 kWReference
FPT NEFReference
turbocharged aftercooled dieselReference
4-cylinder 16-valveReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier IVReference
Rated Power (gross)95.6 kWReference
Maximum Power (gross)103.0 kWReference
Rated RPM2200Reference
Torque630.1 NmReference
Torque RPM1300Reference
StarterelectricReference
Starter volts12Reference
Transmission
continuously-variable transmissionReference
24-speed eight-speed power shiftReference
TransmissionAuto CommandReference
Typecontinuously-variable transmissionReference
Gearsinfinite forward and reverseReference
TransmissionDynamic CommandReference
Typeeight-speed power shiftReference
Gears24 forward and reverseReference
PTO & Hydraulics
PTO (claimed)82.8 kWReference
Typeclosed center load-sensingReference
Pressure200.0 barReference
Rear valves4Reference
Mid valves3Reference
Pump flow79.9 lpmReference
Pump flow110.1 lpmReference
Steering flow36.3 lpmReference
Rear TypeIIReference
Controlelectronic draft controlReference
Rear lift (at ends)5499 kgReference
Rear lift (at 24"/610mm)4639 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1969Reference
Engine RPM540E@1546Reference
Engine RPM1000@1893Reference
Front PTOindependentReference
Dimensions
Wheelbase248 cmReference
Weight5499 kgReference
Length439 cmReference
Width228 cmReference
Shipping weight5499 kgReference
Max weight8799 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Charging amps200Reference
Battery CCA1300Reference
Battery volts12Reference
New Holland T5.140 Height
Hood189 cmReference
Cab269 cmReference
Cab279 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
