Tractor · 2013Unverified

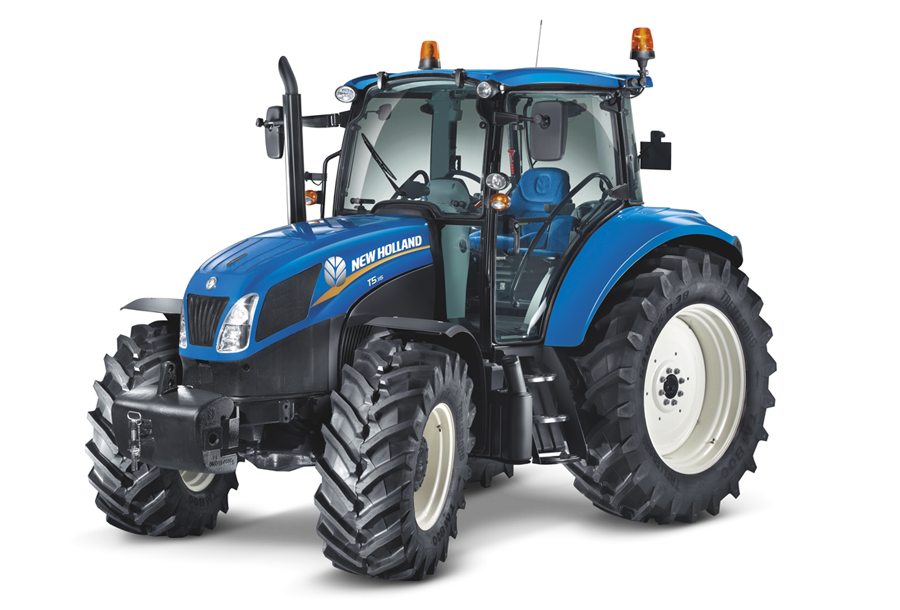

New Holland T5.95

Name: New Holland T5.95
Brand: New Holland

New Holland T5.95 — T5 Series · 98 hp. Reference specifications; pending source verification.

The New Holland T5.95 is a tractor with a rated output of 98 hp, positioning it in the middle of its class for power. It was manufactured from 2013 to 2016. The tractor is equipped with a 4-cylinder turbocharged diesel liquid-cooled engine, which powers a four-wheel drive system via a hydrostatic transmission. The listed weight of the T5.95 is 4250 kg, and it is designed for use in areas of approximately 200-800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

98 hp

Max power

69.6 kW

Weight

4250 kg

Catalogue coverage

Variants represented

Richest spec table

79 rows

Recorded power

98 hp

Recorded weight

4250 kg

Transmissions

12-speed power shuttle

Production years

2013-2016

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew Holland (a part of CNH)Reference

Utility tractorReference

Four-wheel driveReference

Differential lockElectro-hydraulic rear. Limited slip front.Reference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

FPT 3.4L 4-cyl dieselReference

Fuel tank140.0 LReference

Engine (gross)73.1 kWReference

Drawbar (tested)48.6 kWReference

FPT F5DReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.4 LReference

Bore/Stroke99 x 110 mmReference

EmissionsInterim Tier IVReference

Emission controlcooled exhaust gas recirculation with diesel particulate filter (DPF) (CEGR)Reference

Power (gross)73.1 kWReference

Pre-heatinggrid heaterReference

Rated RPM2300Reference

StarterelectricReference

Starter volts12Reference

Max power69.6 kWReference

Power at rated engine speed66.8 kWReference

Max power48.6 kWReference

Transmission

12-speed power shuttleReference

20-speed creeper power shuttleReference

24-speed two-speed power shiftReference

Typepower shuttleReference

Gears12 forward and reverseReference

Four synchronized gears in three non-synchronized ranges. Power shuttle shift.Reference

TransmissionFour synchronized gears in three non-synchronized ranges with added creeper range. Power shuttle shift.Reference

Typecreeper power shuttleReference

Gears20 forward and reverseReference

TransmissionDual CommandReference

Typetwo-speed power shiftReference

Gears24 forward and reverseReference

PTO & Hydraulics

PTO (claimed)61.1 kWReference

PTO (tested)69.6 kWReference

Typeopen center gear pumpsReference

Valves2 to 3Reference

Pump flow60.9 lpmReference

Pump flow79.9 lpmReference

Steering flow37.9 lpmReference

Steering flow43.1 lpmReference

Rear TypeIIReference

Controlelectronic draft controlReference

Rear lift (at 24"/610mm)2899 kgReference

Rear lift (at 24"/610mm)4741 kgReference

Rear Armsflexible lower link ends with telescopic stabilizersReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/1000Reference

Front PTO Type1000Reference

Power at rated PTO speed69.6 kWReference

Dimensions

Wheelbase234 cmReference

Weight4250 kgReference

Length416 cmReference

Width209 cmReference

Height (cab)267 cmReference

New Holland T5.95 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Battery CCA960Reference

Battery volts12Reference

Attachment overview

New Holland 825TL loaderReference

New Holland 835TL loaderReference

Test results

Diesel 12-speed 4WDMarch 2013 - August 2013, Link: OCED Tractor Test 2806 fileReference

PTO performanceReference

Fuel use20.1 l/hourReference

Fuel use20.4 l/hourReference

Drawbar performanceReference

Fuel use21.2 l/hourReference

Gear 2M used for power test.Reference

Max pull3671 kgReference

Gear 3L used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
