Tractor · 2007Unverified

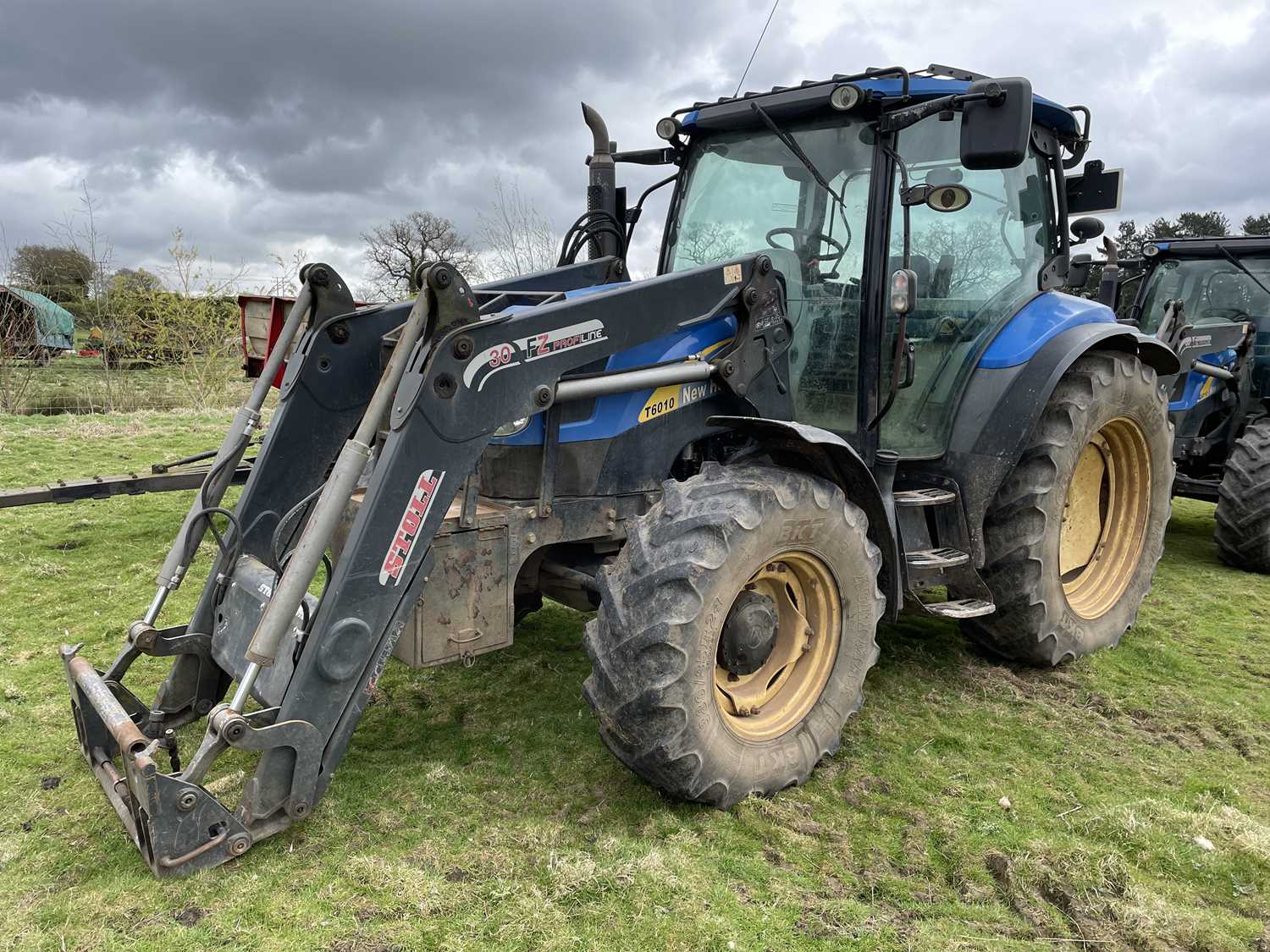

New Holland T6010

Name: New Holland T6010
Brand: New Holland

New Holland T6010 — T6000 Series · 99 hp. Reference specifications; pending source verification.

The New Holland T6010 is a tractor rated at 99 hp, positioning it within the middle of its class in terms of power. Manufactured between 2007 and 2012, the T6010 is equipped with a 4-cylinder turbocharged diesel liquid-cooled engine, which powers four-wheel drive via a 24-speed gearbox. Weighing between 10450 and 11110 pounds, the T6010 is designed for use on areas ranging from approximately 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

99 hp

Max power

99.2 hp

Weight

10450 to 11110 pounds

Catalogue coverage

Variants represented

Richest spec table

82 rows

Recorded power

99 hp

Transmissions

24-speed

Production years

2007-2012

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew Holland (a part of CNH)Reference

Utility tractorReference

Four-wheel driveReference

Power steeringReference

Cab standard with air-conditioning.Reference

Variants

Maxxum 100similar CaseIH modelReference

Engine

FPT 4.5L 4-cyl dieselReference

Fuel tank176.0 LReference

Fuel tank152.2 LReference

Engine (gross)73.8 kWReference

FPT NEF F4CReference

turbocharged dieselReference

4-cylinder 8-valveReference

liquid-cooled inlineReference

Displacement4.5 LReference

Bore/Stroke104 x 132 mmReference

Rated Power (gross)73.8 kWReference

Rated RPM2200Reference

Torque400.0 NmReference

Torque RPM1400Reference

Starter volts12Reference

No of Cylinders4 cylinderReference

Rated engine speed2,200 RPMReference

Engine torque at rated speed133.8 kgReference

Bore and stroke4.094x5.197 inchesReference

Cooling systemliquid-cooledReference

Transmission

24-speedReference

48-speedReference

16-speedReference

32-speedReference

TransmissionDual CommandReference

Gears24 forward and reverseReference

TransmissionDual Command creeperReference

Gears48 forward and reverseReference

TransmissionElectro CommandReference

Gears16 forward and reverseReference

TransmissionElectro Command creeperReference

Gears32 forward and reverseReference

Transmission TypePower QuadReference

Wheel Drive4WDReference

PTO & Hydraulics

Typefixed displacementReference

Typeclose center load sensing optional on PLUS (CCLS)Reference

Pressure190.0 barReference

Pressure210.0 barReference

Valves3 (DELTA)Reference

Valves4 (PLUS)Reference

Pump flow62.8 lpmReference

Pump flow79.9 lpmReference

Pump flow113.2 lpmReference

Rear PTOindependentReference

Rear PTO Type540/1000 (1.375)Reference

Front PTO Type1000Reference

Dimensions

Wheelbase241 cmReference

Wheelbase242 cmReference

Wheelbase251 cmReference

Weight10450 to 11110 poundsReference

Length429 cmReference

Width187 cmReference

Height272 cmReference

Ground clearance42 cmReference

4740 kgReference

5021 kgReference

5039 kgReference

Electrical

GroundnegativeReference

Battery volts12Reference

General

Make & ModelNew HollandReference

Cruise controlAvailableReference

SCV controlJoystickReference

Capacities

Capacity273.7 ciReference

Hydraulics

Capacity Valves8 valveReference

Maximum operating pressure3,046 psiReference

Remote Valves3 (DELTA) | 4 (PLUS) ValvesReference

Power

Max Power99.2 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Front PTO PowerAvailableReference

Dimensions & weight

Overall Height272.5 cmReference

Overall Length429.3 cmReference

Overall Width187.2 cmReference

Overall weight5,039.4 kgReference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
