Tractor · 2007Unverified

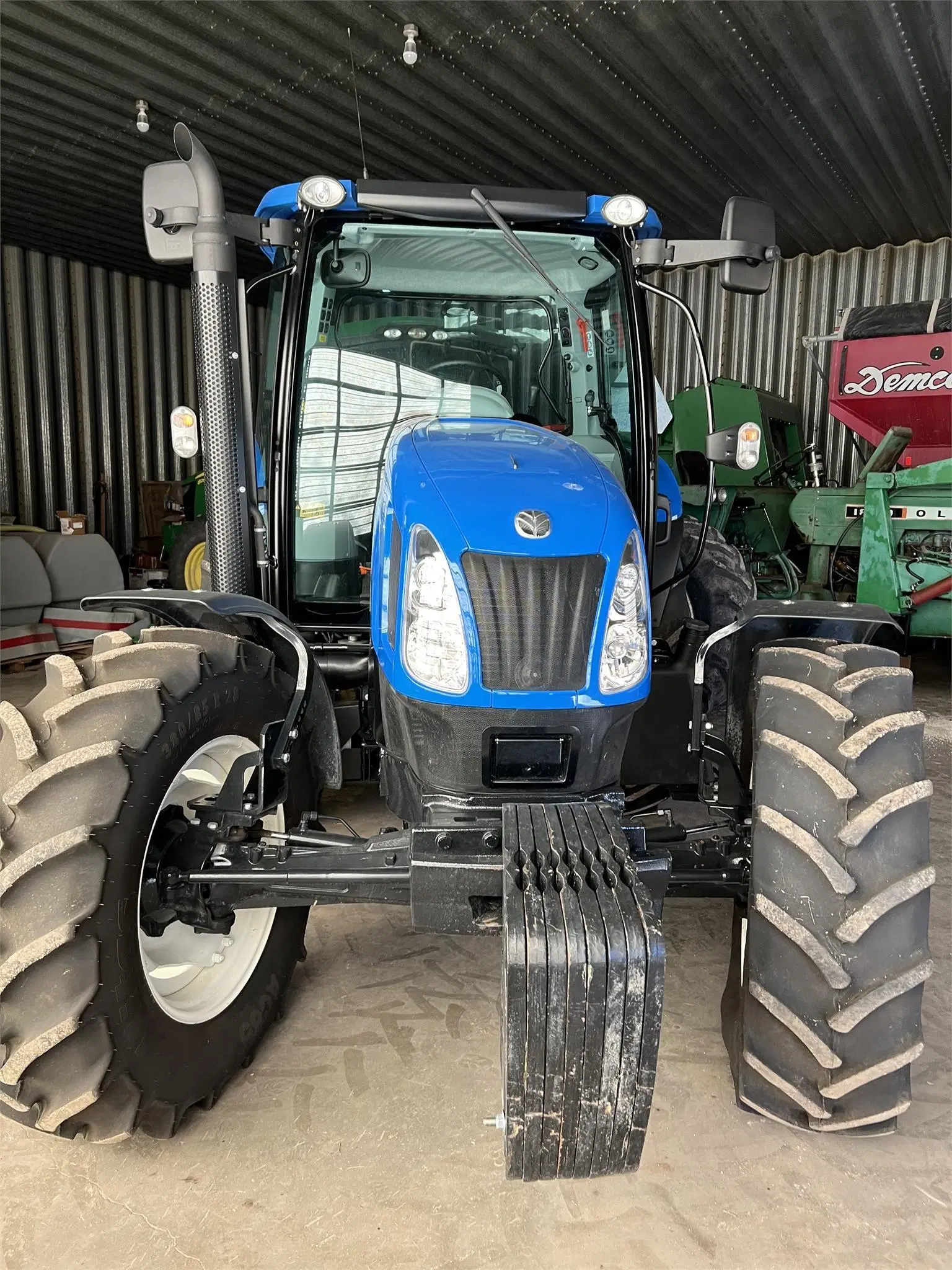

New Holland T6020 Delta

Name: New Holland T6020 Delta
Brand: New Holland

New Holland T6020 Delta — T6000 Series · 110 hp. Reference specifications; pending source verification.

The New Holland T6020 Delta is a mid-range tractor with a power rating of approximately 110 horsepower. Produced from 2007 to 2012, this model features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with mechanical front-wheel drive and a hydrostatic transmission. Its operating weight is listed as 9090 to 10383 pounds. It is suitable for operations covering 200-800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

110 hp

Max power

72.3 kW

Weight

9090 to 10383 pounds

Catalogue coverage

Variants represented

Richest spec table

124 rows

Recorded power

110 hp

Transmissions

24-speed power shuttle

Production years

2007-2012

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Utility tractorReference

Drive4x2 2WDReference

Drive4x4 MFWD 4WD (optional)Reference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Two-post ROPS. Horizon cab optional.Reference

Variants

T6020 DeltaeconomyReference

T6020 Plusmid-levelReference

T6020 ElitepremiumReference

Engine

FPT 4.5L 4-cyl dieselReference

Engine (gross)82.0 kWReference

Drawbar (tested)61.4 kWReference

FPTReference

turbocharged air-to-air intercooled dieselReference

4-cylinder 8-valveReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke104 x 132 mmReference

Power (gross)82.0 kWReference

Fuel systemmechanical rotary pumpReference

Compression17.5:1Reference

Rated RPM2200Reference

StarterelectricReference

Starter volts12Reference

Oil capacity10.0 LReference

Max power72.3 kWReference

Power at rated engine speed720.3 kWReference

Max power61.4 kWReference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,200 RPMReference

Bore and stroke4.094x5.197 inchesReference

Compression ratio17.5:1Reference

Cooling systemliquid-cooledReference

Transmission

24-speed power shuttleReference

16-speed partial power shiftReference

TransmissionDual CommandReference

Typepower shuttleReference

Gears24 forward and reverseReference

Twelve gears with push-button underdrive for each gear. Power shuttle shifting.Reference

TransmissionElectroShiftReference

Typepartial power shiftReference

Gears16 forward and reverseReference

Four gears in four ranges. Push-button power shifting between gears and clutch-free shifting between ranges A-B and C-D. Synchronized shift from ranges B to C. Power shuttle shifting.Reference

Transmission TypePower ShuttleReference

Wheel Drive2WD | 4WDReference

PTO & Hydraulics

PTO (claimed)67.1 kWReference

PTO (tested)720.3 kWReference

Hydraulic system64.7 LReference

Typeopen centerReference

Capacity64.7 LReference

Valves2 or 3Reference

Pump flow62.8 lpmReference

Total flow102.6 lpmReference

ElectroShift Total flow109.8 lpmReference

Steering flow39.7 lpmReference

ElectroShift Steering flow46.9 lpmReference

Rear TypeIIReference

Controlmechanical lower-link draft controlReference

Rear lift3406 kgReference

Rear lift3997 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/1000 (1.375)Reference

Power at rated PTO speed71.9 kWReference

Capacities

Fuel176.0 LReference

Fuel tank176 LReference

Crankcase oil volume10.6 qtsReference

Dimensions

2WD Wheelbase236 cmReference

4WD Wheelbase241 cmReference

Weight9090 to 10383 poundsReference

Length429 cmReference

Width187 cmReference

2WD Front tread160 to 218 cmReference

4WD Front tread157 to 233 cmReference

2WD ROPS Shipping4123 kgReference

4WD ROPS Shipping4279 kgReference

2WD Cab Shipping4536 kgReference

4WD Cab Shipping4709 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Charging volts12Reference

Battery CCA960Reference

Battery volts12Reference

Total cold cranking amps960 CCAReference

New Holland T6020 Delta Height

ROPS285 cmReference

Cab277 cmReference

Exhaust272 cmReference

Test results

Diesel 12-speed 4WDOctober 2007 - January 2008, Link: OCED Tractor Test 2445 fileReference

PTO performanceReference

Fuel use22.0 l/hourReference

Fuel use226.3 l/hourReference

Drawbar performanceReference

Fuel use22.7 l/hourReference

Max pull4170 kgReference

General

Make & ModelNew HollandReference

Cruise controlAvailableReference

SCV controlJoystickReference

Hydraulics

Capacity Valves8 valvesReference

Pump Rated Output (total)27.1 gpmReference

Hydraulics Typeopen centerReference

Remote Valves2 or 3 ValvesReference

Steering & Implements flow10.5 gpm (16.6 gpm)Reference

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch maximum lift capacity3,997.5 kgReference

Rear Hitch Sensing Typemechanical lower-link draft controlReference

PTO

PTO Power90 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

Brakeshydraulic wet discReference

Steering typehydrostatic powerReference

Dimensions & weight

Wheelbase241 cmReference

Height Over ROPS285.5 cmReference

Overall Height272.5 cmReference

Height Over Cab277.4 cmReference

Overall Length429.3 cmReference

Overall Width188 cmReference

Overall weight4,279.6 kgReference

Wheels & tyres

Front Wheel tread range62.2 to 92 inchesReference

Operator station

Cab AvailabilityAvailableReference

Cab Air conditioning, temperature differentialHorizon cab optional.Reference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
