Tractor · 2007Unverified

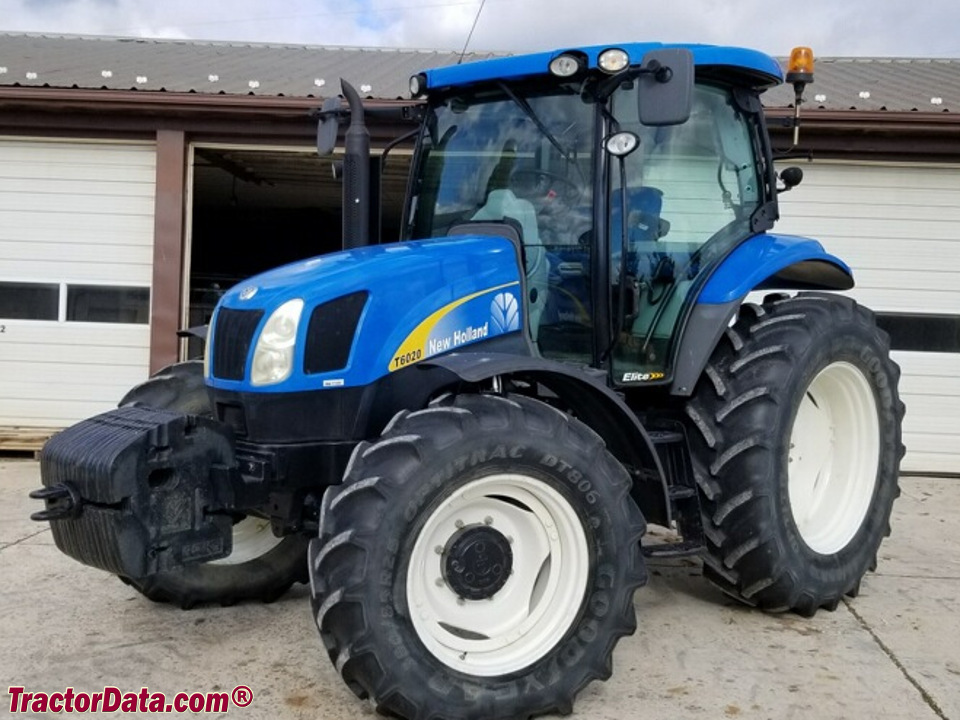

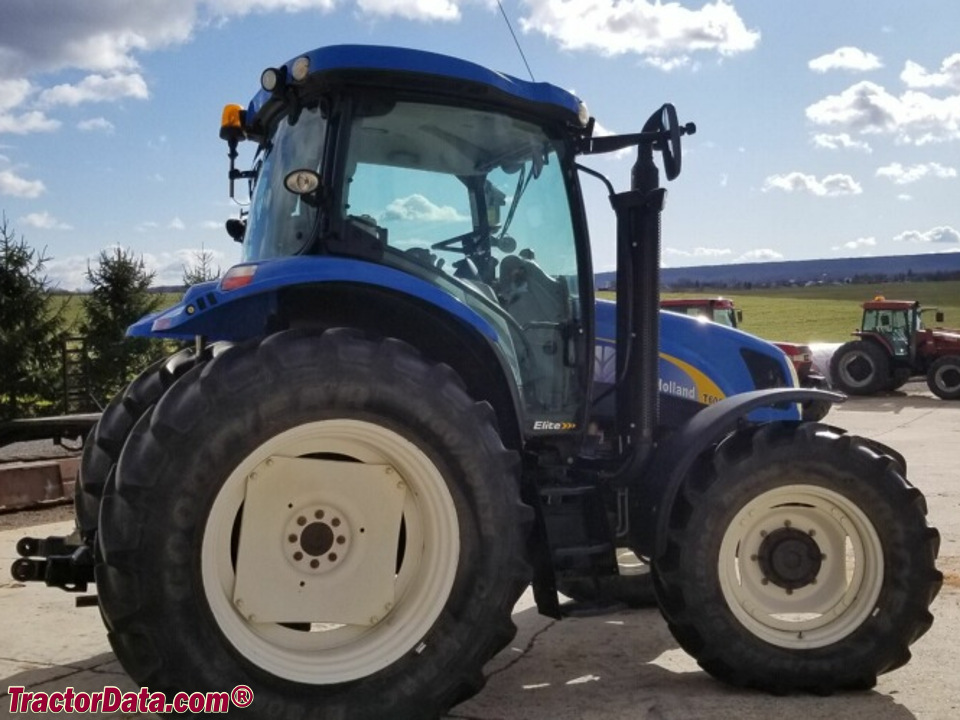

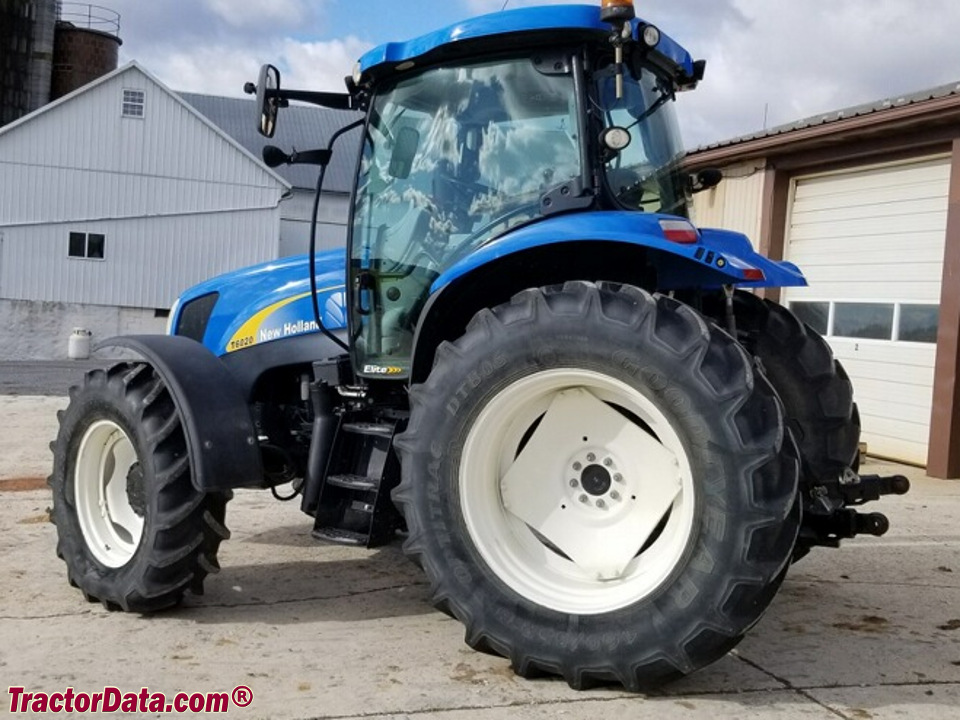

New Holland T6020 Elite
New Holland T6020 Elite — T6000 Series · 110 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
110 hp
Max power
80.9 kW
Weight
4938 kg
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Row-Crop tractorReference
Built in Basildon, EnglandReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference

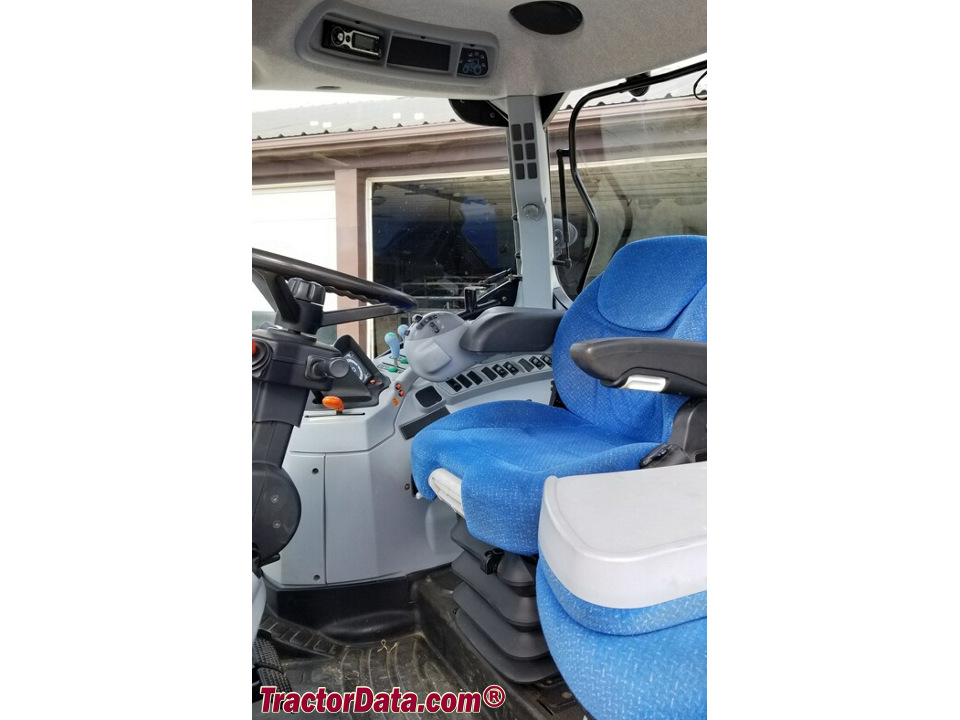

Horizon cab standard with air-conditioning. Optional deluxe cab with automatic temperature control and air-ride seat. Optional Comfort Ride cab suspension. Programmable headland management system.Reference
Variants
T6020 DeltaeconomyReference
T6020 Plusmid-levelReference
T6020 ElitepremiumReference
Engine
FPT 4.5L 4-cyl dieselReference
Engine (gross)82.0 kWReference
Drawbar (tested)58.7 kWReference
FPT NEFReference
turbocharged air-to-air intercooled dieselReference
4-cylinder 16-valveReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier 3Reference
Power (gross)82.0 kWReference
Fuel systemhigh pressure common rail (HPCR)Reference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Oil capacity15.1 LReference
Max power80.9 kWReference
Power at rated engine speed73.8 kWReference
Max power58.7 kWReference
Transmission
16-speed partial power shiftReference
TransmissionAutoShiftReference
Typepartial power shiftReference
Gears16 forward and reverseReference
Clutchhydraulic wet discReference
Four gears (1-4) in four ranges (A-D). Power shift between gears and ranges A-B and C-D. AutoShift provides automatic shifting in ranges A, B, C, and a road setting for combined ranges C-D. Economy AutoShift offers an overdrive 17th gear. High-speed option provides a 50 kph high-speed 17th gear.Reference
PTO & Hydraulics
PTO (claimed)67.1 kWReference
PTO (tested)80.9 kWReference
Hydraulic system61.7 LReference
Typeclosed center load sensingReference
Capacity61.7 LReference
Valves2 to 4Reference
Pump flow100.3 lpmReference
Total flow140.0 lpmReference
Steering flow39.7 lpmReference
Rear Type2/3NReference
Controlelectronic lower-link draft controlReference
Rear lift5527 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Power at rated PTO speed74.7 kWReference
Capacities
Fuel176.0 LReference
Fuel152.2 LReference
Dimensions
Wheelbase241 cmReference
Wheelbase242 cmReference
Wheelbase251 cmReference
Weight4938 kgReference
Height (cab)285 cmReference
Height (exhaust)288 cmReference
Shipping weight4938 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Charging volts12Reference
Battery CCA960Reference
Battery volts12Reference
Test results
Diesel AutoShift 4WDJanuary 2008 - March 2008, Link: OCED Tractor Test 2481 fileReference
PTO performanceReference
Fuel use23.1 l/hourReference
Fuel use23.5 l/hourReference
Drawbar performanceReference
Gear 7B Low used for power test.Reference
Max pull5084 kgReference
Gear 4A Low used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
