Tractor · 2007Unverified

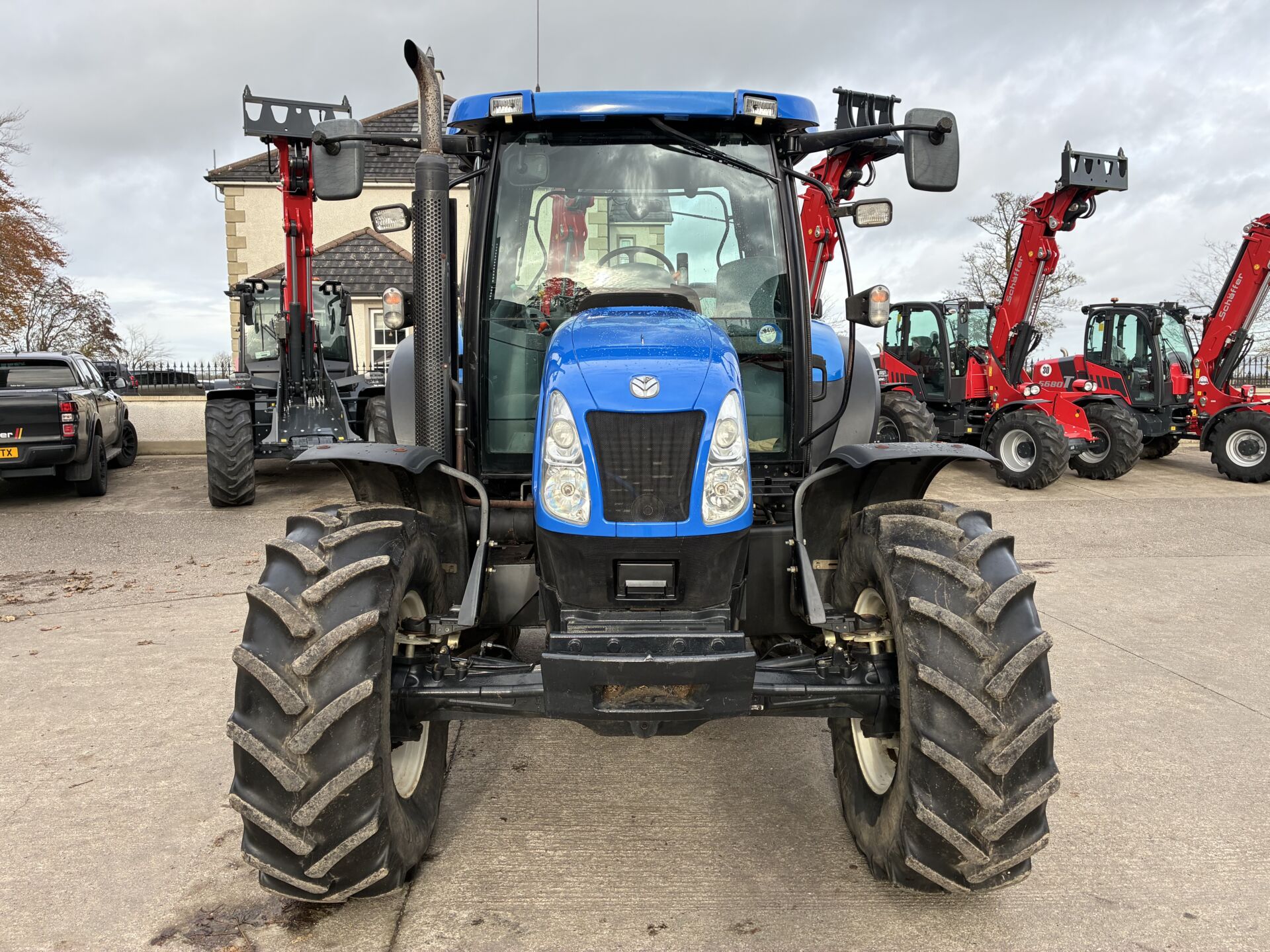

New Holland T6020 Plus
New Holland T6020 Plus — T6000 Series · 110 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
110 hp
Max power
71.5 kW
Weight
10008 to 10383 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Utility tractorReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Steeringhydrostatic powerReference
SteeringSuperSteer optionalReference
Hydraulic wet disc brakesReference
Horizon cab standard.Reference
Variants
T6020 DeltaeconomyReference
T6020 Plusmid-levelReference
T6020 ElitepremiumReference
Engine
FPT 4.5L 4-cyl dieselReference
Engine (gross)82.0 kWReference
Drawbar (tested)61.7 kWReference
FPTReference
turbocharged air-to-air aftercooled dieselReference
4-cylinder 8-valveReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
Power (gross)82.0 kWReference
Fuel systemmechanical rotary pumpReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Oil capacity10.0 LReference
Max power71.5 kWReference
Power at rated engine speed70.7 kWReference
Max power61.7 kWReference
Transmission
16-speed partial power shiftReference
TransmissionElectroShiftReference
Typepartial power shiftReference
Gears16 forward and reverseReference
Four gears in four ranges (A-D). Push-button power shifting between gears and clutch-free shifting between ranges A-B and C-D. Synchronized shift from ranges B to C. Power shuttle shifting.Reference
TransmissionAutoShiftReference
AutoShift adds an automatic shifting funtion to the ElectroShift transmission.Reference
PTO & Hydraulics
PTO (claimed)67.1 kWReference
PTO (tested)71.5 kWReference
Hydraulic system61.7 LReference
Typeclosed center load-sensingReference
Capacity61.7 LReference
Valves2 to 4Reference
Pump flow100.3 lpmReference
Total flow140.0 lpmReference
Steering flow39.7 lpmReference
Rear TypeII (mech)Reference
Rear TypeII/IIIN (elec)Reference
Controlmechanical lower link draft sensing, electronic optionalReference
Rear lift4211 kgReference
Rear lift4363 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000Reference
Power at rated PTO speed70.1 kWReference
Capacities
Fuel176.0 LReference
SuperSteer Fuel152.2 LReference
Dimensions
2WD Wheelbase265 cmReference
4WD Wheelbase265 cmReference
Weight10008 to 10383 poundsReference
Height (cab)285 cmReference
Height (exhaust)287 cmReference
2WD Weight4539 kgReference
4WD Weight4709 kgReference
Front axleHeavy-duty 2WDReference
Front axleFWDReference
Front axleFWD TerraLockReference
Front axleSuperSteer FWD TerraLockReference
Front axleTerraGlide FWD TerraLockReference
2WD Front tread160 to 218 cmReference
4WD Front tread157 to 233 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Charging volts12Reference
Battery CCA960Reference
Battery volts12Reference
Test results
Diesel 24-speed 4WDSeptember 2007 - May 2008, Link: OCED Tractor Test 2488 fileReference
PTO performanceReference
Fuel use21.6 l/hourReference
Fuel use22.3 l/hourReference
Fuel use22.0 l/hourReference
Drawbar performanceReference
Gear 12 used for power test.Reference
Max pull4917 kgReference
Gear 2 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
