Tractor · 2007Unverified

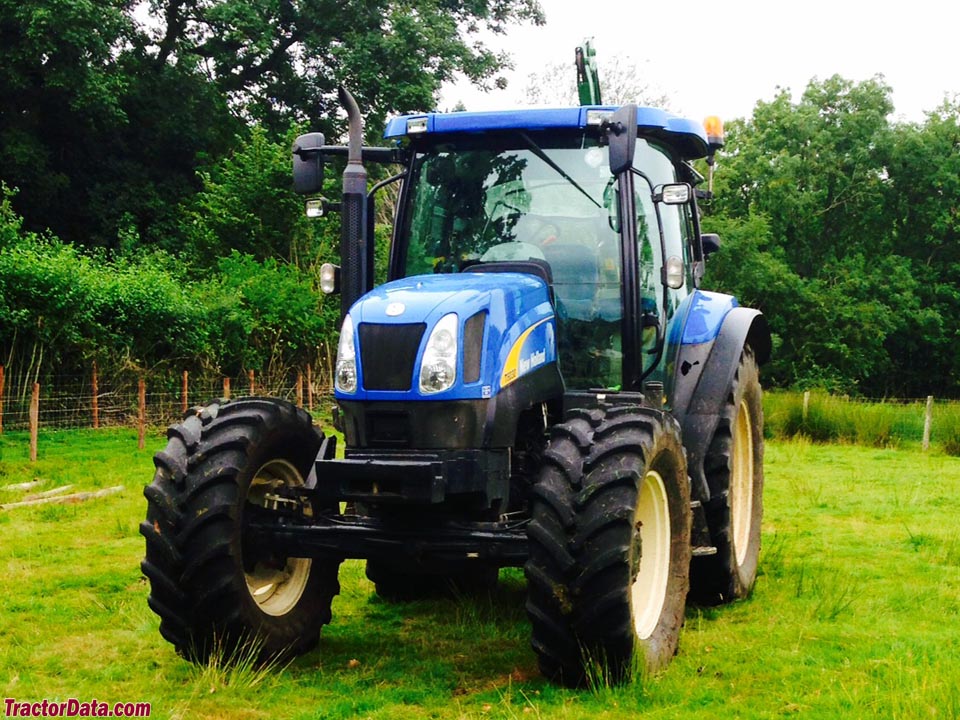

New Holland T6030 Plus

Name: New Holland T6030 Plus
Brand: New Holland

New Holland T6030 Plus — T6000 Series · 115 hp. Reference specifications; pending source verification.

The New Holland T6030 Plus is a tractor with a rated power output of 115 hp, positioning it in the middle of its class. Manufactured from 2007 to 2012, the T6030 Plus is equipped with a 6-cylinder turbocharged diesel liquid-cooled engine, driving through a mechanical front-wheel drive system with a hydrostatic transmission. The listed weight of the tractor ranges from 10890 to 11336 pounds. It is designed for use on areas of approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

115 hp

Max power

80.4 kW

Weight

10890 to 11336 pounds

Catalogue coverage

Variants represented

Richest spec table

117 rows

Recorded power

115 hp

Recorded weight

4939 kg

Transmissions

16-speed partial power shift

Production years

2007-2012

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Utility tractorReference

Drive4x2 2WDReference

Drive4x4 MFWD 4WD (optional)Reference

Steeringhydrostatic powerReference

SteeringSuperSteer optionalReference

Hydraulic wet disc brakesReference

Horizon cab standard.Reference

Variants

T6030 DeltaeconomyReference

T6030 Plusmid-levelReference

T6030 ElitepremiumReference

Engine

FPT 6.7L 6-cyl dieselReference

Engine (gross)85.8 kWReference

Drawbar (tested)59.8 kWReference

FPTReference

turbocharged air-to-air aftercooled dieselReference

6-cylinder 12-valveReference

liquid-cooledReference

Displacement6.7 LReference

Bore/Stroke104 x 132 mmReference

Power (gross)85.8 kWReference

Fuel systemmechanical rotary pumpReference

Rated RPM2200Reference

StarterelectricReference

Starter volts12Reference

Oil capacity15.1 LReference

Max power80.4 kWReference

Power at rated engine speed80.4 kWReference

Max power59.8 kWReference

Fuel TypedieselReference

No of Cylinders6 cylinderReference

Rated engine speed2,200 RPMReference

Bore and stroke4.094x5.197 inchesReference

Cooling systemliquid-cooledReference

Transmission

16-speed partial power shiftReference

TransmissionElectroShiftReference

Typepartial power shiftReference

Gears16 forward and reverseReference

Four gears in four ranges (A-D). Push-button power shifting between gears and clutch-free shifting between ranges A-B and C-D. Synchronized shift from ranges B to C. Power shuttle shifting.Reference

TransmissionAutoShiftReference

AutoShift adds an automatic shifting funtion to the ElectroShift transmission.Reference

Transmission TypeSemi-PowershiftReference

Wheel Drive2WD | 4WDReference

PTO & Hydraulics

PTO (claimed)70.8 kWReference

PTO (tested)80.4 kWReference

Hydraulic system61.7 LReference

Typeclosed center load-sensingReference

Capacity61.7 LReference

Valves2 to 4Reference

Pump flow100.3 lpmReference

Total flow140.0 lpmReference

Steering flow39.7 lpmReference

Rear TypeII (mech)Reference

Rear TypeII/IIIN (elec)Reference

Controlmechanical lower link draft sensing, electronic optionalReference

Rear lift4211 kgReference

Rear lift4363 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/1000Reference

Power at rated PTO speed79.8 kWReference

Capacities

Fuel249.8 LReference

SuperSteer Fuel230.1 LReference

Fuel tank249.8 LReference

Crankcase oil volume16 qtsReference

Dimensions

2WD Wheelbase265 cmReference

4WD Wheelbase265 cmReference

Weight10890 to 11336 poundsReference

Height (cab)289 cmReference

Height (exhaust)287 cmReference

2WD Shipping weight4939 kgReference

4WD Shipping weight5142 kgReference

Front axleHeavy-duty 2WDReference

Front axleFWDReference

Front axleFWD TerraLockReference

Front axleSuperSteer FWD TerraLockReference

Front axleTerraGlide FWD TerraLockReference

2WD Front tread160 to 218 cmReference

4WD Front tread157 to 233 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Charging volts12Reference

Battery CCA960Reference

Battery volts12Reference

Total cold cranking amps960 CCAReference

Test results

Diesel 16-speed 4WDOctober 2007 - November 2007, Link: OCED Tractor Test 2443 fileReference

PTO performanceReference

Fuel use25.7 l/hourReference

Fuel use25.4 l/hourReference

Drawbar performanceReference

Gear 7B used for power test.Reference

Max pull4885 kgReference

Gear 3A used for pull test.Reference

General

Make & ModelNew HollandReference

Cruise controlAvailableReference

SCV controlJoystickReference

PTO

PTO Power95 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

Brakeshydraulic wet discReference

Steering typehydrostatic power | SuperSteer optionalReference

Hydraulics

Pump Rated Output (total)37 gpmReference

Hydraulics Typeclosed center load-sensingReference

Remote Valves2 to 4 ValvesReference

Steering & Implements flow10.5 gpm (26.5 gpm)Reference

Rear Hitch category (SAE designation)Category II (mech) | Category II/IIIN (elec)Reference

Rear Hitch maximum lift capacity4,363.6 kgReference

Rear Hitch Sensing Typemechanical lower link draft sensing, electronic optionalReference

Dimensions & weight

Wheelbase265.9 cmReference

Height Over Cab289.8 cmReference

Overall Height287.5 cmReference

Overall weight5,141.9 kgReference

Wheels & tyres

Front Wheel tread range62.2 to 92 inchesReference

Operator station

Cab AvailabilityAvailableReference

Cab Air conditioning, temperature differentialHorizon cab standard.Reference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
