Tractor · 2007Unverified

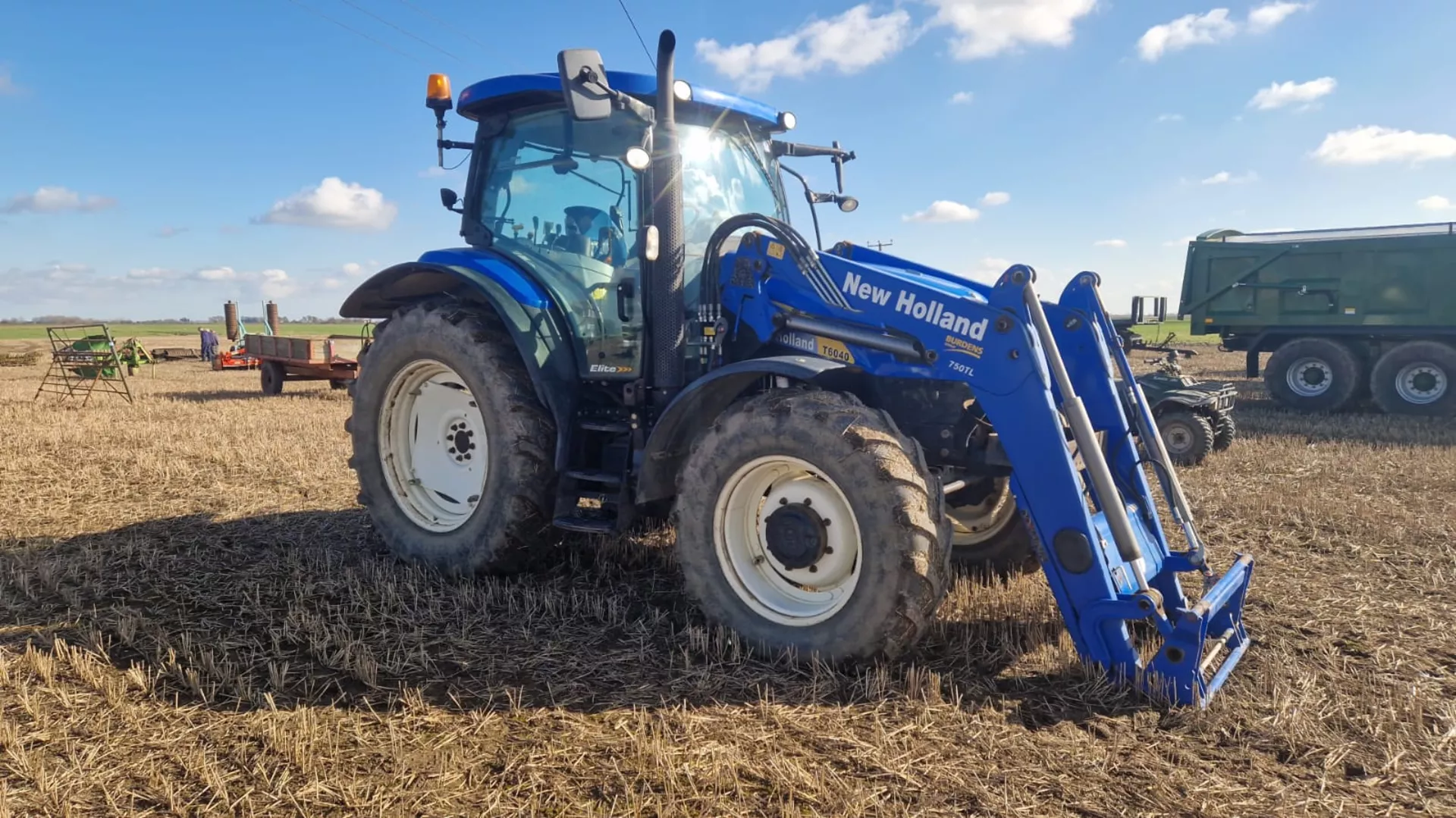

New Holland T6040 Elite

Name: New Holland T6040 Elite
Brand: New Holland

New Holland T6040 Elite — T6000 Series · 120 hp. Reference specifications; pending source verification.

The New Holland T6040 Elite is a high-powered tractor model, rated at 120 hp. Manufactured between 2007 and 2012, this model features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, coupled with a hydrostatic transmission and four-wheel drive. Its listed weight ranges from 10888 to 12465 pounds. The tractor is suitable for tasks covering approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

120 hp

Max power

87.9 kW

Weight

10888 to 12465 pounds

Catalogue coverage

Variants represented

Richest spec table

115 rows

Recorded power

120 hp

Recorded weight

4938 kg

Transmissions

16-speed partial power shift

Production years

2007-2012

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Row-Crop tractorReference

Built in Basildon, EnglandReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Differential hydraulic wet disc brakesReference

Horizon cab standard with air-conditioning. Optional deluxe cab with automatic temperature control and air-ride seat. Optional Comfort Ride cab suspension. Programmable headland management system.Reference

Engine

FPT 4.5L 4-cyl dieselReference

Engine (gross)89.5 kWReference

Drawbar (tested)60.4 kWReference

FPT NEFReference

turbocharged air-to-air intercooled dieselReference

4-cylinder 16-valveReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke104 x 132 mmReference

EmissionsTier 3Reference

Power (gross)89.5 kWReference

Fuel systemhigh pressure common rail (HPCR)Reference

Air cleanerdual paper elements and aspiratorReference

Compression16.5:1Reference

Rated RPM2200Reference

StarterelectricReference

Starter volts12Reference

Oil capacity15.1 LReference

Max power87.9 kWReference

Power at rated engine speed76.0 kWReference

Max power60.4 kWReference

Fuel TypeDieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,200 RPMReference

Emissions complianceTier 3Reference

Bore and stroke4.094x5.197 inchesReference

Compression ratio16.5:1Reference

Cooling systemliquid-cooledReference

Transmission

16-speed partial power shiftReference

TransmissionAutoShiftReference

Typepartial power shiftReference

Gears16 forward and reverseReference

Clutchhydraulic wet discReference

Four gears (1-4) in four ranges (A-D). Power shift between gears and ranges A-B and C-D. AutoShift provides automatic shifting in ranges A, B, C, and a road setting for combined ranges C-D. Economy AutoShift offers an overdrive 17th gear. High-speed option provides a 50 kph high-speed 17th gear.Reference

Transmission TypePowershiftReference

forward and reverse optionspartial power shift : 16F and 16RReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)74.6 kWReference

PTO (tested)87.9 kWReference

Hydraulic system61.7 LReference

Typeclosed center load sensingReference

Capacity61.7 LReference

Valves2 to 4Reference

Pump flow100.3 lpmReference

Total flow140.0 lpmReference

Steering flow39.7 lpmReference

Rear Type2/3NReference

Controlelectronic lower-link draft controlReference

Rear lift5527 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000 (1.375)Reference

Power at rated PTO speed79.8 kWReference

Capacities

Fuel176.0 LReference

Fuel152.2 LReference

Fuel tank176 LReference

Crankcase oil volume16 qtsReference

Dimensions

Wheelbase241 cmReference

Wheelbase251 cmReference

Weight10888 to 12465 poundsReference

Height (cab)288 cmReference

Height (exhaust)285 cmReference

Shipping weight4938 kgReference

Operating weight5654 kgReference

Front tread157 to 233 cmReference

New Holland T6040 Elite attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Charging volts12Reference

Battery CCA960Reference

Battery volts12Reference

Total cold cranking amps960 CCAReference

Attachment overview

New Holland 830TL loaderReference

New Holland 840TL loaderReference

The 840TL loader is specified for tractors with SuperSteer. Tractors with the conventional axle use the 830TL. Each loader is available with mechanical self-leveling (MSL).Reference

Test results

Diesel 16-speed 4WDDecember 1, 2007 - June 1, 2008Link: OCED Tractor Test 2462 fileReference

PTO performanceReference

Fuel use25.7 l/hourReference

Fuel use24.6 l/hourReference

Fuel use25.0 l/hourReference

Drawbar performanceReference

Gear 8B used for power test.Reference

Max pull5681 kgReference

Gear 1A used for pull test.Reference

General

Make & ModelNew HollandReference

Cruise controlAvailableReference

SCV controlJoystickReference

Country of manufacturerEnglandReference

Hydraulics

Capacity Valves16 valvesReference

Pump Rated Output (total)37 gpmReference

Hydraulics Typeclosed center load sensingReference

Remote Valves2 to 4 ValvesReference

Steering & Implements flow10.5 gpm (26.5 gpm)Reference

Rear Hitch category (SAE designation)Category 2/3NReference

Rear Hitch maximum lift capacity5,527 kgReference

Rear Hitch Sensing Typeelectronic lower-link draft controlReference

PTO

PTO Power100 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

Brakesdifferential hydraulic wet discReference

Steering typehydrostatic powerReference

Dimensions & weight

Height Over Cab288 cmReference

Overall Height285.5 cmReference

Overall weight4,938.7 kgReference

Wheels & tyres

Front Wheel tread range62.2 to 92 inchesReference

Operator station

Cab AvailabilityAvailableReference

Cab Air conditioning, temperature differentialHorizon cab standard with air-conditioning. .Reference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
