Tractor · 2007Unverified

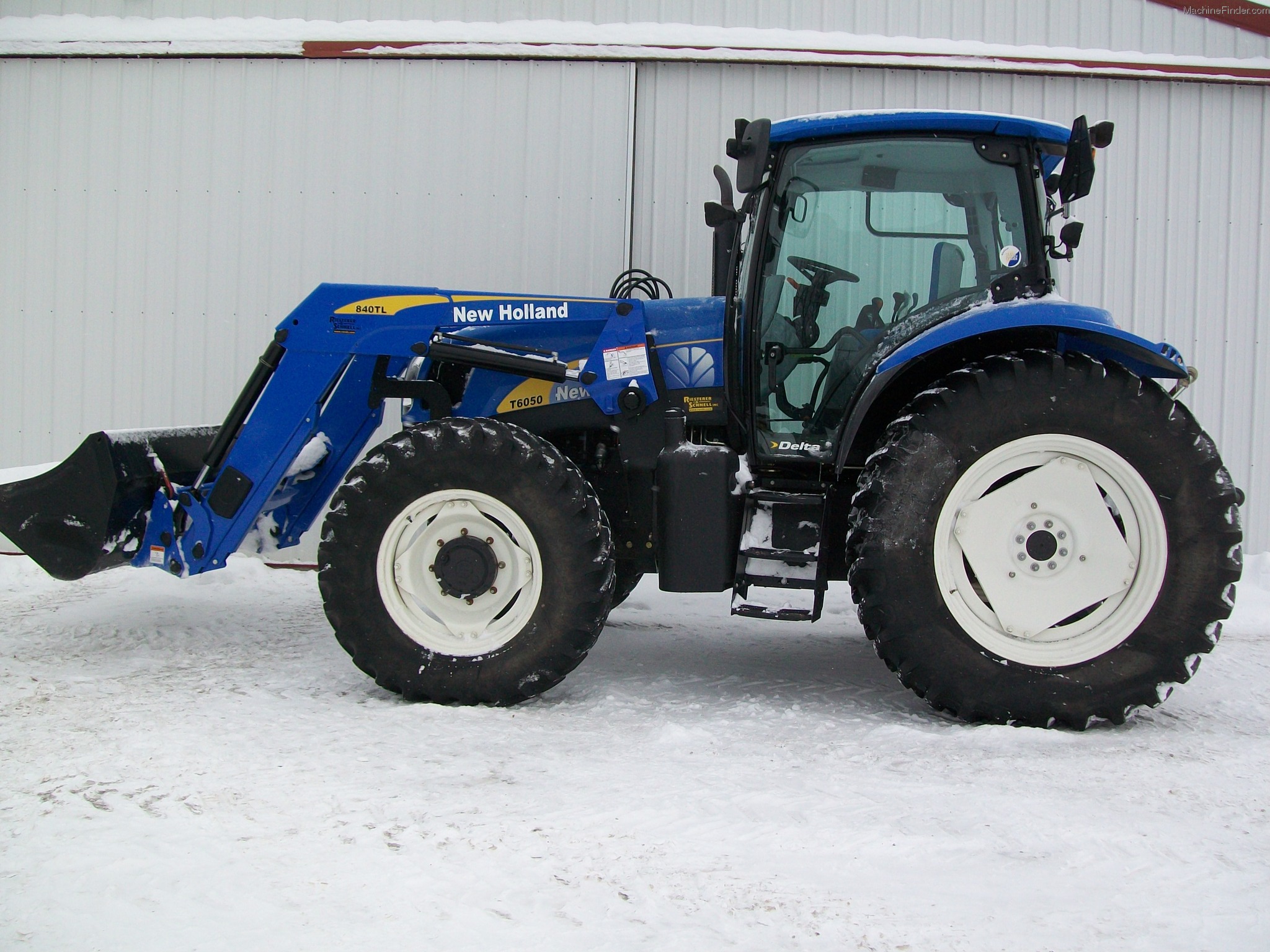

New Holland T6050 Delta
New Holland T6050 Delta — T6000 Series · 125 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
125 hp
Max power
84.5 kW
Weight
9986 to 11406 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Utility tractorReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Two-post ROPS. Horizon cab optional.Reference
Variants
T6050 DeltaeconomyReference
T6050 Plusmid-levelReference
T6050 ElitepremiumReference
Engine
FPT 6.7L 6-cyl dieselReference
Engine (gross)93.2 kWReference
Drawbar (tested)67.4 kWReference
FPTReference
turbocharged air-to-air intercooled dieselReference
6-cylinder 12-valveReference
liquid-cooledReference
Displacement6.7 LReference
Bore/Stroke104 x 132 mmReference
Power (gross)93.2 kWReference
Fuel systemmechanical rotary pumpReference
Compression17.5:1Reference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Oil capacity15.1 LReference
Max power84.5 kWReference
Power at rated engine speed85.6 kWReference
Max power67.4 kWReference
Transmission
24-speed power shuttleReference
16-speed partial power shiftReference
TransmissionDual CommandReference
Typepower shuttleReference
Gears24 forward and reverseReference
Twelve gears with push-button underdrive for each gear. Power shuttle shifting.Reference
TransmissionElectroShiftReference
Typepartial power shiftReference
Gears16 forward and reverseReference
Four gears in four ranges. Push-button power shifting between gears and clutch-free shifting between ranges A-B and C-D. Synchronized shift from ranges B to C. Power shuttle shifting.Reference
PTO & Hydraulics
PTO (claimed)78.3 kWReference
PTO (tested)85.6 kWReference
Hydraulic system64.7 LReference
Typeopen centerReference
Capacity64.7 LReference
Valves2 or 3Reference
Pump flow62.8 lpmReference
Total flow102.6 lpmReference
ElectroShift Total flow109.8 lpmReference
Steering flow39.7 lpmReference
ElectroShift Steering flow46.9 lpmReference
Rear TypeIIReference
Controlmechanical lower-link draft controlReference
Rear lift3406 kgReference
Rear lift3997 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000 (1.375)Reference
Power at rated PTO speed85.6 kWReference
Capacities
Fuel249.8 LReference
Dimensions
2WD Wheelbase265 cmReference
4WD Wheelbase265 cmReference
Weight9986 to 11406 poundsReference
Length453 cmReference
Width191 cmReference
2WD Front tread160 to 218 cmReference
4WD Front tread157 to 233 cmReference
2WD ROPS Shipping4529 kgReference
4WD ROPS Shipping4699 kgReference
2WD Cab Shipping4642 kgReference
4WD Cab Shipping5173 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Charging volts12Reference
Battery CCA960Reference
Battery volts12Reference
New Holland T6050 Delta Height
ROPS289 cmReference
Cab281 cmReference
Exhaust276 cmReference
Test results
Diesel 16-speed 4WDOctober 2007 - January 2008, Link: OCED Tractor Test 2442/1 fileReference
PTO performanceReference
Fuel use25.7 l/hourReference
Fuel use26.5 l/hourReference
Fuel use26.1 l/hourReference
Drawbar performanceReference
Gear 7B used for power test.Reference
Max pull4712 kgReference
Gear 5B used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
