Tractor · 2007Unverified

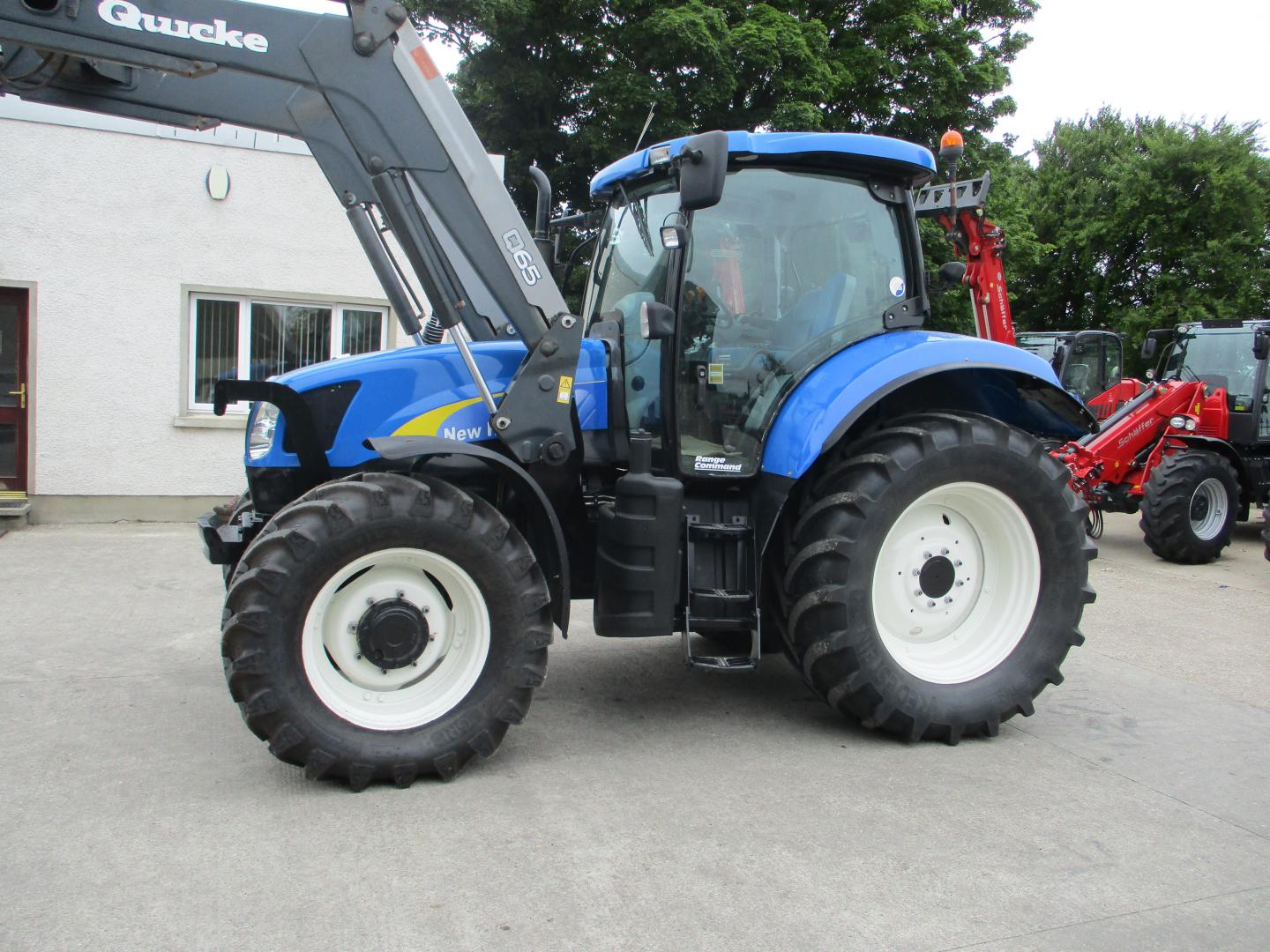

New Holland T6050 Elite
New Holland T6050 Elite — T6000 Series · 125 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
125 hp
Max power
91.4 kW
Weight
11836 to 13260 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Row-Crop tractorReference
Built in Basildon, EnglandReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Horizon cab standard with air-conditioning. Optional deluxe cab with automatic temperature control and air-ride seat. Optional Comfort Ride cab suspension. Programmable headland management system.Reference
Variants
T6050 DeltaeconomyReference
T6050 Plusmid-levelReference
T6050 ElitepremiumReference
Engine
FPT 6.7L 6-cyl dieselReference
Engine (gross)93.2 kWReference
Engine (max)101.4 kWReference
Drawbar (tested)67.8 kWReference
FPT NEFReference
turbocharged air-to-air intercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement6.7 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier 3Reference
Rated Power (gross)93.2 kWReference
Maximum Power (gross)101.4 kWReference
Fuel systemhigh pressure common rail (HPCR)Reference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Oil capacity15.1 LReference
Max power91.4 kWReference
Power at rated engine speed82.0 kWReference
Max power67.8 kWReference
Max power92.9 kWReference
Power at rated engine speed84.3 kWReference
Max power65.7 kWReference
Transmission
16-speed partial power shiftReference
18-speedReference
TransmissionAutoShiftReference
Typepartial power shiftReference
Gears16 forward and reverseReference
Clutchhydraulic wet discReference
Four gears (1-4) in four ranges (A-D). Power shift between gears and ranges A-B and C-D. AutoShift provides automatic shifting in ranges A, B, C, and a road setting for combined ranges C-D. Economy AutoShift offers an overdrive 17th gear. High-speed option provides a 50 kph high-speed 17th gear.Reference
TransmissionPower CommandReference
Gears18 forward and 6 reverseReference
PTO & Hydraulics
PTO (claimed)78.3 kWReference
PTO (tested)92.9 kWReference
Hydraulic system70.0 LReference
Typeclosed center load sensingReference
Capacity70.0 LReference
Valves2 to 4Reference
Pump flow100.3 lpmReference
Total flow165.0 lpmReference
Steering flow64.7 lpmReference
Rear Type2/3NReference
Controlelectronic lower-link draft controlReference
Rear lift5527 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Power at rated PTO speed86.6 kWReference
Power at rated PTO speed89.1 kWReference
Capacities
Fuel300.2 LReference
Dimensions
Wheelbase265 cmReference
Wheelbase242 cmReference
Wheelbase251 cmReference
Weight11836 to 13260 poundsReference
Height (cab)285 cmReference
Height (exhaust)288 cmReference
Shipping weight5368 kgReference
Operating weight6014 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Charging volts12Reference
Battery CCA1300Reference
Battery volts12Reference
Test results
OECD 2485: diesel AutoShift 4WDReference
OECD 2492: diesel Range Command 4WDReference
Diesel AutoShift 4WDApril 2008 - May 2008, Link: OCED Tractor Test 2485 fileReference
PTO performanceReference
Fuel use26.9 l/hourReference
Fuel use26.5 l/hourReference
Fuel use27.3 l/hourReference
Drawbar performanceReference
Gear 7L used for power test.Reference
Max pull5372 kgReference
Gear 2L used for pull test.Reference
Diesel Range Command 4WDSeptember 2008 - December 2008, Link: OCED Tractor Test 2492 fileReference
Fuel use25.7 l/hourReference
Fuel use26.1 l/hourReference
Gear 2M used for power test.Reference
Max pull5479 kgReference
Gear 1L used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
