Tractor · 2007Unverified

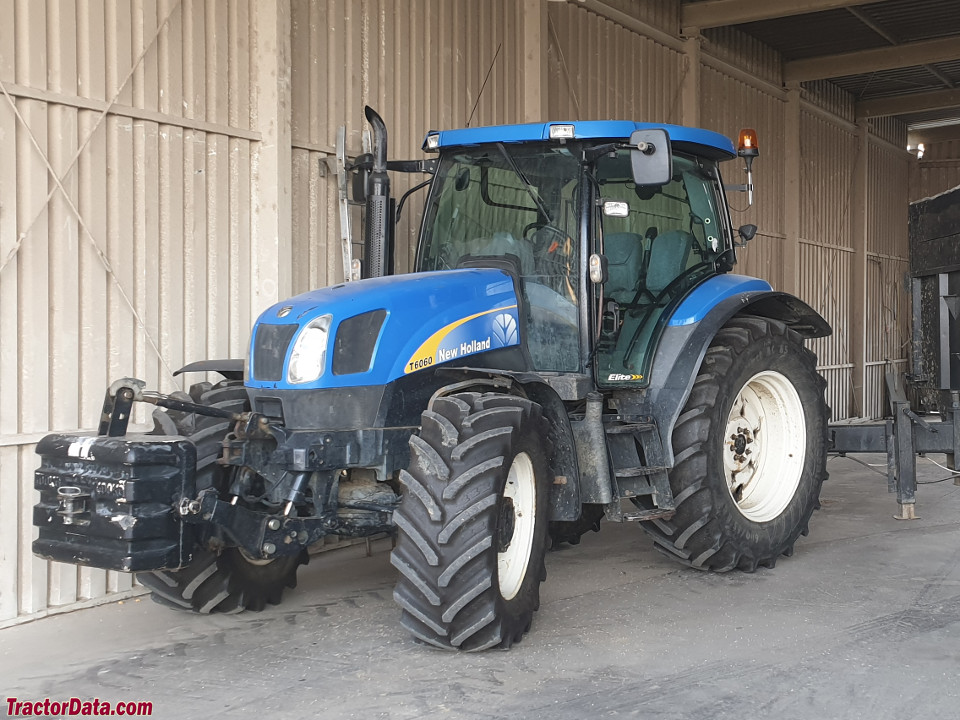

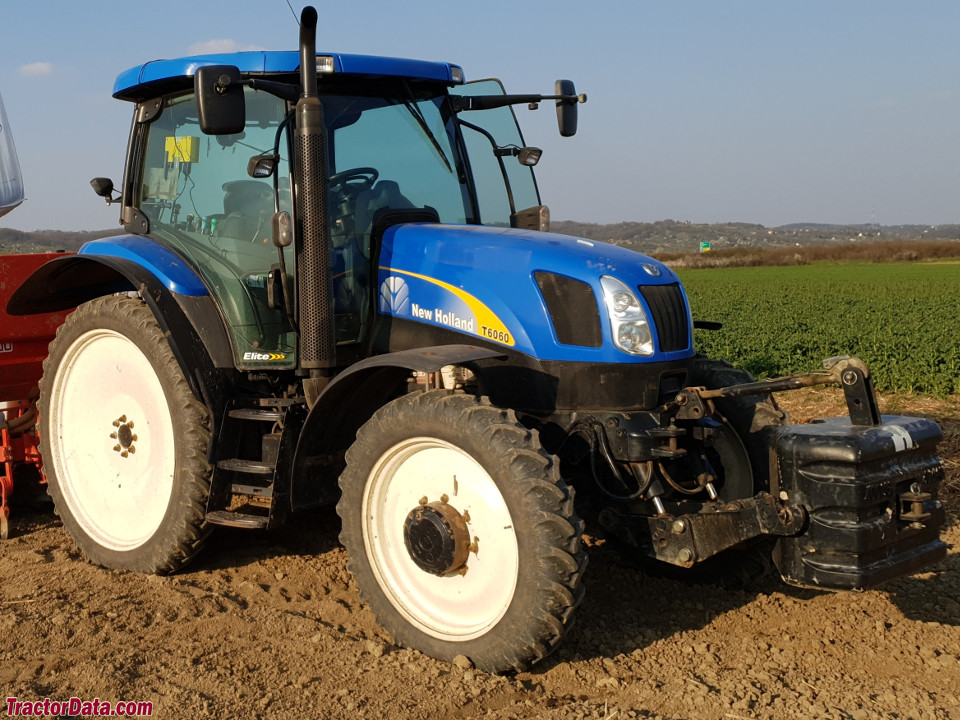

New Holland T6060 Elite
New Holland T6060 Elite — T6000 Series · 130 hp. Reference specifications; pending source verification.
The New Holland T6060 Elite is a tractor model with a rated output of 130 hp, positioning it as a higher-powered machine in its class. It was manufactured from 2007 to 2012. The tractor features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, coupled with a hydrostatic transmission and four-wheel drive. It has a listed weight of 10888 to 12465 pounds and is suited for tasks covering around 200–800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
130 hp
Max power
90.5 kW
Weight
10888 to 12465 pounds
Catalogue coverage
Variants represented
2
Richest spec table
113 rows
Recorded power
130 hp
Recorded weight
4938 kg
Transmissions
16-speed partial power shift
Production years
2007-2012
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Row-Crop tractorReference
Built in Basildon, EnglandReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Differential hydraulic wet disc brakesReference
Horizon cab standard with air-conditioning. Optional deluxe cab with automatic temperature control and air-ride seat. Optional Comfort Ride cab suspension. Programmable headland management system.Reference
Engine
FPT 4.5L 4-cyl dieselReference
Engine (gross)96.9 kWReference
Drawbar (tested)66.5 kWReference
FPT NEFReference
turbocharged air-to-air intercooled dieselReference
4-cylinder 16-valveReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier 3Reference
Power (gross)96.9 kWReference
Fuel systemhigh pressure common rail (HPCR)Reference
Air cleanerdual paper elements and aspiratorReference
Compression16.5:1Reference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Oil capacity15.1 LReference
Max power90.5 kWReference
Power at rated engine speed82.5 kWReference
Max power66.5 kWReference
Fuel TypeDieselReference
No of Cylinders4 cylinderReference
Rated engine speed2,200 RPMReference
Emissions complianceTier 3Reference
Bore and stroke4.094x5.197 inchesReference
Compression ratio16.5:1Reference
Cooling systemliquid-cooledReference
Transmission
16-speed partial power shiftReference
TransmissionAutoShiftReference
Typepartial power shiftReference
Gears16 forward and reverseReference
Clutchhydraulic wet discReference
Four gears (1-4) in four ranges (A-D). Power shift between gears and ranges A-B and C-D. AutoShift provides automatic shifting in ranges A, B, C, and a road setting for combined ranges C-D. Economy AutoShift offers an overdrive 17th gear. High-speed option provides a 50 kph high-speed 17th gear.Reference
Transmission TypePowershiftReference
Wheel Drive4WDReference
PTO & Hydraulics
PTO (claimed)82.0 kWReference
PTO (tested)90.5 kWReference
Hydraulic system61.7 LReference
Typeclosed center load sensingReference
Capacity61.7 LReference
Valves2 to 4Reference
Pump flow100.3 lpmReference
Total flow140.0 lpmReference
Steering flow39.7 lpmReference
Rear Type2/3NReference
Controlelectronic lower-link draft controlReference
Rear lift5527 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Power at rated PTO speed84.8 kWReference
Capacities
Fuel176.0 LReference
Fuel152.2 LReference
Fuel tank176 LReference
Crankcase oil volume16 qtsReference
Dimensions
Wheelbase241 cmReference
Wheelbase251 cmReference
Weight10888 to 12465 poundsReference
Height (cab)288 cmReference
Height (exhaust)285 cmReference
Shipping weight4938 kgReference
Operating weight5654 kgReference
Front tread157 to 233 cmReference
New Holland T6060 Elite attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Charging volts12Reference
Battery CCA960Reference
Battery volts12Reference
Total cold cranking amps960 CCAReference
Attachment overview
New Holland 830TL loaderReference
New Holland 840TL loaderReference
The 840TL loader is specified for tractors with SuperSteer. Tractors with the conventional axle use the 830TL. Each loader is available with mechanical self-leveling (MSL).Reference
Test results
Diesel AutoShift 4WDFebruary 1 - September 1, 2008Link: OCED Tractor Test 2463 fileReference
PTO performanceReference
Fuel use26.9 l/hourReference
Fuel use26.5 l/hourReference
Drawbar performanceReference
Gear 7B used for power test.Reference
Max pull5570 kgReference
Gear 1A used for pull test.Reference
General
Make & ModelNew HollandReference
Cruise controlavailableReference
SCV controljoystickReference
Country of manufacturerEnglandReference
Hydraulics
Capacity Valves16 valvesReference
Pump Rated Output (total)37 gpmReference
Hydraulics Typeclosed center load sensingReference
Remote Valves2 to 4 ValvesReference
Steering & Implements flow10.5 gpm (26.5 gpm)Reference
Rear Hitch category (SAE designation)Category 2/3NReference
Rear Hitch maximum lift capacity5,527 kgReference
Rear Hitch Sensing Typeelectronic lower-link draft controlReference
PTO
PTO Power110 hpReference
Rear PTO PowerAvailableReference
Rear PTO RPM1,000 RPMReference
Steering & brakes
Brakesdifferential hydraulic wet discReference
Steering typehydrostatic powerReference
Dimensions & weight
Height Over Cab288 cmReference
Overall Height285.5 cmReference
Overall weight4,938.7 kgReference
Wheels & tyres
Front Wheel tread range62.2 to 92 inchesReference
Operator station
Cab AvailabilityAvailableReference
Cab Air conditioning, temperature differentialHorizon cab standard with air-conditioning. .Reference
Seat SuspensionTRUEReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
